All stock codes associated to this product
DA500, SPDPDA500, SP-DP-DA500

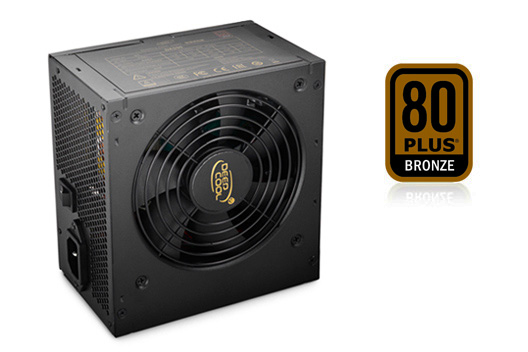

Overview
DA500 is certified with 80 plus bronze with up to 87% electrical efficiency
enabling lower heat generation and lower operation cost. Outstanding and stable
performance makes it one of the ideal choices for multi-purpose usage. Double
layer EMI filters protect from magnetic interference and restrains noise while
operating.

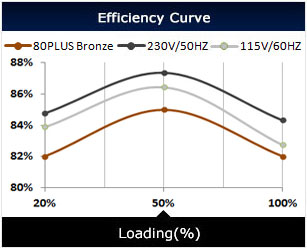

80PLUS BRONZE
80PLUS Bronze certified provide high energy efficiency up to 87%. Click here
to view the certification.

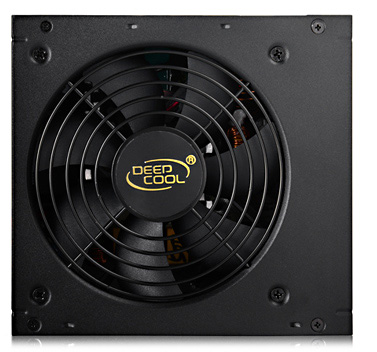

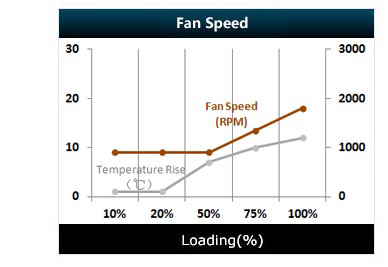

Silent and High Performance Fan
120mm silent fan with PWM function to provide incredible performance-noise
ratio.

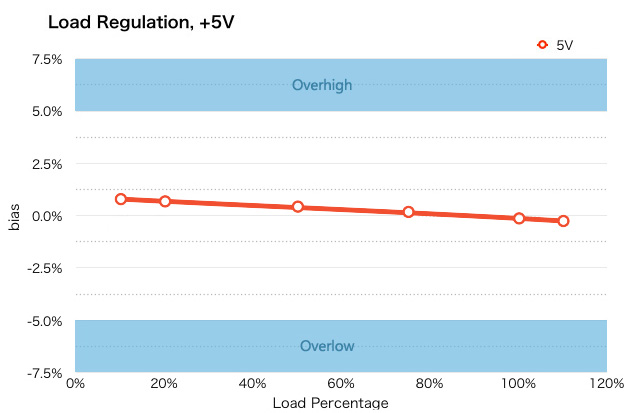

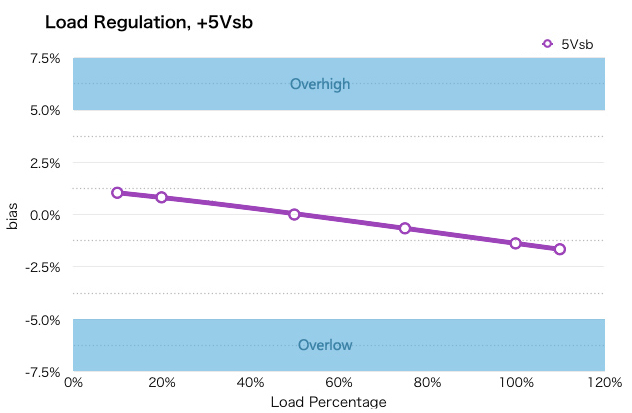

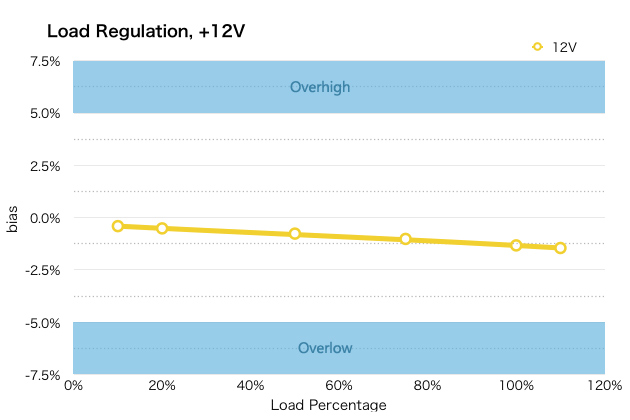

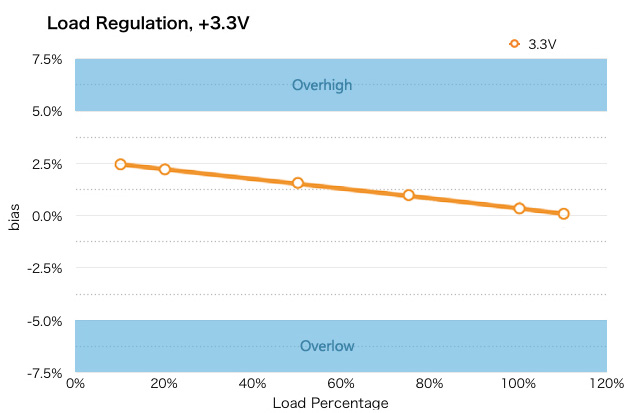

Voltage Regulation

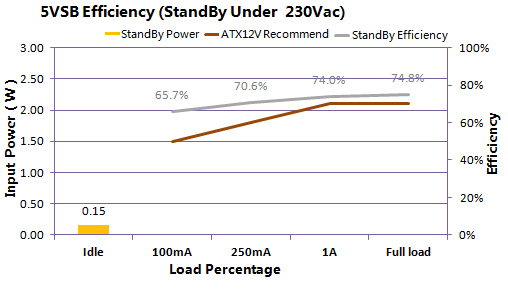

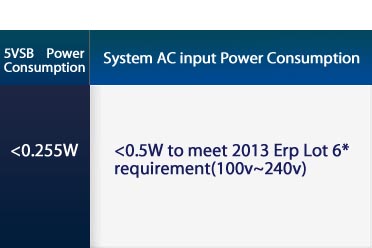

Idle/Standby Efficiency
Certification and Support
Features
- Compliant Intel ATX12V v 2.31
- The integrated Active PFC+ PWM Combo Controller will increase the
efficiency of exchange and make PFC higher than 99%
- 80 PLUS Bronze certified up to 85% efficiency
- Assembled copper + AL heatsink make cooling more efficient
- 120mm silent fan with PWM function
- The longer cable design supports cable management perfectly
- Double-Layer EMI Filter protects from electromagnetic interference &
restrains noise
- Intelligentized eco-friendly chipset, consume < 1W in its off-mode,
compliant Erp standard
- CircuitShield OVP, UVP, SCP, OPP
- Supports Multi-Way SLI / CrossFire + Multi-Core CPUs
Output
|
AC
INPUT |
VOLTAGE |
|
CURRENT |
FREQUENCY |
|
|
100-240V |
|
8.0A |
47-63Hz |
|
|
DC
OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
CURRENT(Max) |
18A |
16A |
38A |
0.3A |
2.5A |
|
OUTPUT(Max) |
110W |
|
456W |
3.6W |
12.5W |
|
TOTAL
OUTPUT |
|
500W |
|
|
|

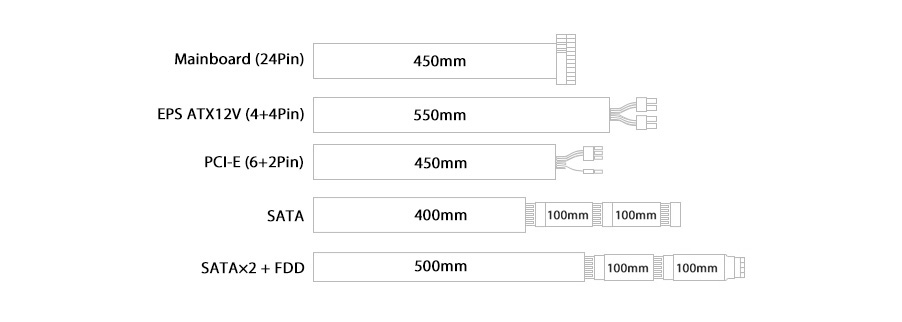

Cables

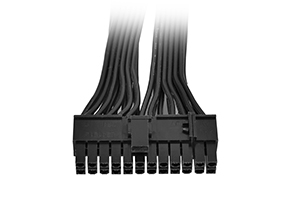

Mainboard (24Pin)

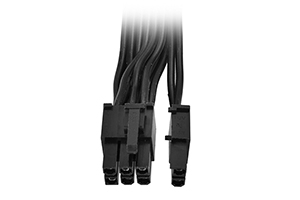

EPS ATX12V (4+4Pin)

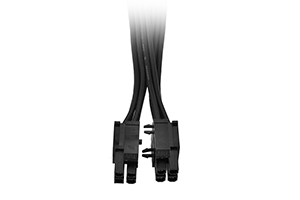

PCI-E (6+2Pin)

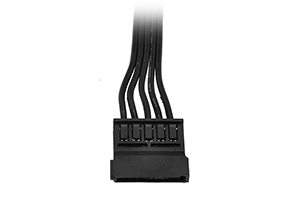

SATA

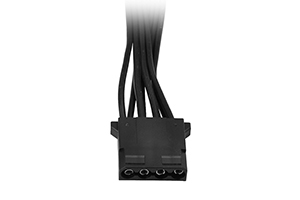

Peripheral (Big 4Pin)
Specifications
|
Model |
DA500 |
|
Type |
ATX 12V
V2.31 |
|
Certifications |
80PLUS
Bronze |
|
Dimension |
15014086mm (W x L x
H) |
|
Output
Capacity |
500W |
|
Input
Voltage |
100~240V |
|
Input
Current |
8A |
|
Input Frequency
Range |
47~63Hz |
|
Fan
Size |
120mm Black
Fan |
|
PFC |
Active PFC
(>0.99) |
|
Power Good
Signal |
100-500ms |
|
Hold Up
Time |
>16ms |
|
Efficiency |
85% Under Typical
Load |
|
Protection |
OCP / OVP / UVP / SCP /
OPP / OTP |
|
Operation
Temperature |
0~40C |
|
Regulatory |
CE / FCC / CCC / CB /
EAC / TUV |
|
MTBF |
100,000
Hours |
