VS381-AT | ATEN VS381 VanCryst 3-Port HDMI Switch w. Audio & IR Remote Control

Computer store - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Cables -> Video - DVI -> ATEN

ATEN VS381 VanCryst 3-Port HDMI Switch w. Audio & IR Remote Control
Supports PC Resolutions VGA, SVGA, XGA, SXGA, and WUXGA (1920x1200), HDTV Resolutions 480p, 720p, 1080i, 1080p (1920x1080)

No Longer Available

Part Number:

412696

(?) Brand:

ATEN

Manuf No:

VS381-AT
VS381AT

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Date Added:

29/9/2016

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

VS381AT, VS381-AT, KVAVS381, KVA-VS-381, 4710423778818

Overview

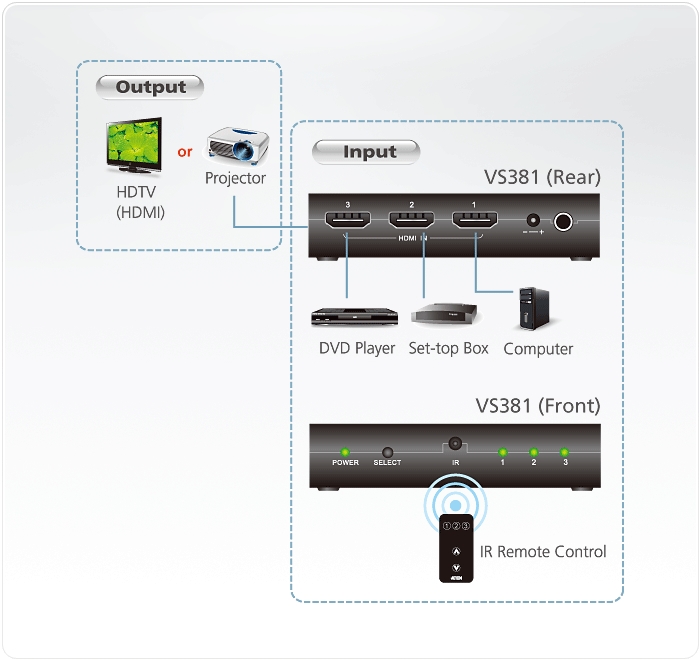

The VS381 3-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.

Blu-ray Full HD(1080P) ROHS Supports(3D) Supports(PS3)

Features

Allows up to three HDMI A/V sources to be connected to one HDMI display
Toggle between A/V sources using remote control or front panel pushbuttons
Superior video quality â€“ HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); PC resolutions of VGA, SVGA, XGA, SXGA, and WUXGA (1920x1200)
Supports Dolby True HD and DTS HD Master Audio
Plug-and-play â€“ no software installation required
DDC Compatible
HDMI (3D, Deep Color)
HDCP compatible
Front-Panel LED for port and power status
Easy and affordable way to add three HDMI inputs to your home theater system
No power adapter required

Specifications

Video Input
Interfaces	3 x HDMI Type A Female (Black)
Impedance	100
Max. Distance	1.8 m

Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100

Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color)
	HDCP Compatible
Max. Resolution	Up to 1080p
Max. Distance	Up to 15 m

Audio
Input	3 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)

Control
IR	1 x Mini Stereo Jack Female (Black)

Power
Connectors	1 x DC Jack
Consumption	5 VDC, 3W

Environmental
Operating Temperature	0 - 50C
Storage Temperature	-20 - 60C
Humidity	0 - 80% RH, Non-Condensing

Physical Properties
Housing	Plastic
Weight	0.07 kg ( 0.15 lb )
Dimensions (L x W x H)	9.60 x 5.12 x 2.24 cm
	(3.78 x 2.02 x 0.88 in.)
Carton Lot	40 pcs

Package Contents	1x VS381 3-Port HDMI Switch
	1x IR Remote Control

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
