Overview

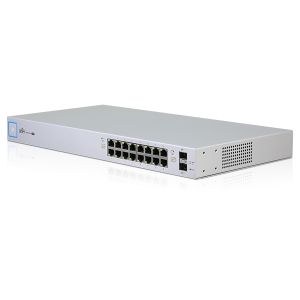

The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. With its advanced capabilities and wide range of options, the UniFi Switch is ideal for expanding your network. Ubiquiti Networks UniFi Switch lets you build and expand your network easily.
The Ubiquiti U6-LR UniFi Wi-Fi 6 Long-Range Access Point is a powerful addition to any home or office network. This access point features four-stream high-efficiency Wi-Fi 6 technology, allowing it to offer up to 2.4 Gbps of radio rate on the 5 GHz band and 600 Mbps on the 2.4 GHz band. Additionally, this access point is powered by an 802.3at PoE injector (not included), making it easy to deploy and manage.

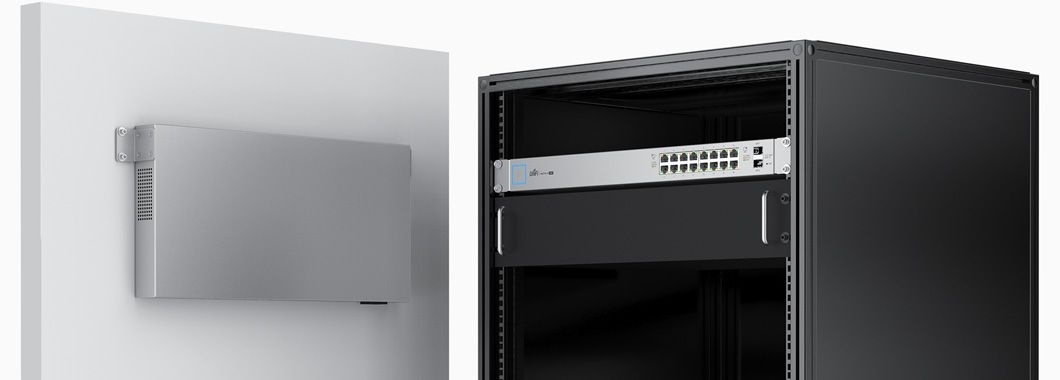

The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack. The UniFi Switch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.
PoE+ Flexibility. Versatile Mounting Options.

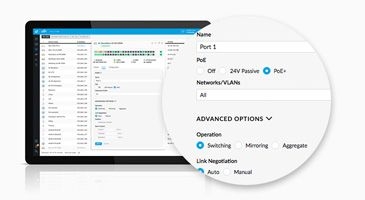

Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.

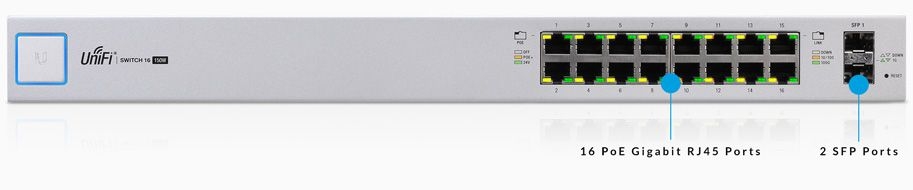

Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
The US-16-150W switch offers:
- (16) Gigabit RJ45 Ports
- (2) SFP Ports
- Non-Blocking Throughput: 18 Gbps
- Switching Capacity: 36 Gbps
- Forwarding Rate: 26.78 Mpps
- Maximum Power Consumption: 150W
- Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
- Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included)
Features

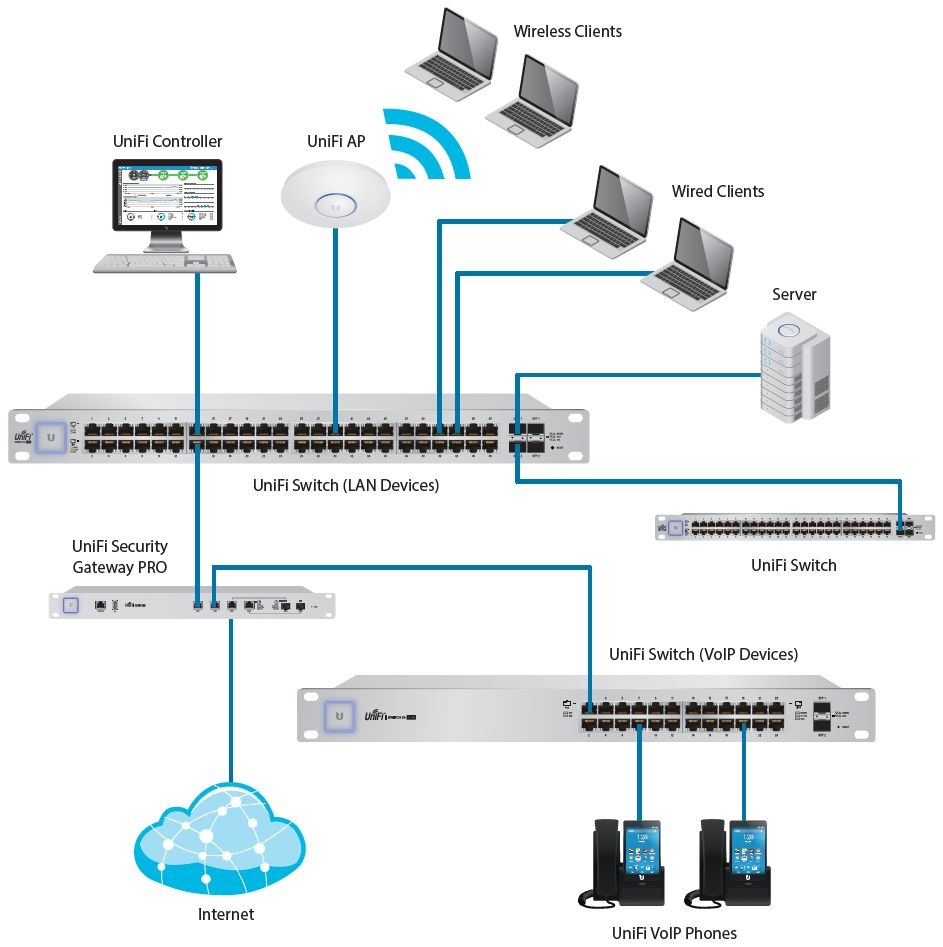

System Example
PoE Switch Model Comparison Chart
Specifications
| UniFi US-16-150W |
| Dimensions |
443 x 43 x 221 mm (17.44 x 1.69 x 8.70") |
Weight
Rack-Mount Brackets Excluded
Rack-Mount Brackets Included |
2.80 kg (6.17 lb)
2.89 kg (6.37 lb) |
Networking Interfaces
|
(16) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports |
| Management Interface |
Ethernet In-Band |
| Total Non-Blocking Throughput |
18 Gbps |
| Switching Capacity |
36 Gbps |
| Forwarding Rate |
26.78 Mpps |
| Power Method |
110-240VAC/50-60 Hz Universal Input |
| Power Supply |
AC/DC, Internal, 150W DC |
Maximum Power Consumption
Including PoE Output
Excluding PoE Output |
150W
28W |
LEDs Per Port
RJ45 Data Ports
SFP Data Ports |
PoE, Speed/Link/Activity
Speed/Link/Activity |
Sound Level
Fan Level 0
Fan Level 1
Fan Level 2
Fan Level 3 |
34 dBa
37 dBa
37 dBa
37 dBa |
| ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration |
ETSI300-019-1.4 Standard |
| Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Operating Humitidy |
5 to 95% Non-Condensing |
| Certifications |
CE, FCC, IC |
| PoE Per Port |
PoE Interfaces
|
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE |
34.2W |
| Voltage Range 802.3at Mode |
50-57V |
| Max. Passive PoE Wattage per Port |
17W |
| 24B Passive PoE Voltage Range |
20-27V |
