Overview

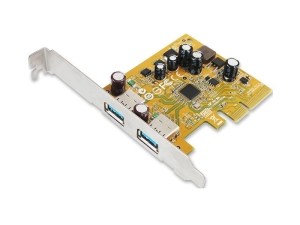

SUNIX USB2312 is a dual-port Super-Speed USB3.1 PCI Express Add-on card, and
its compliant with the PCI Express Generation 2 (Dual-lane x2) specification for
host PC system. It works up to 10 Gbps for data transfer when connecting to USB
3.1 compliant peripherals, while maintaining compatibility with existing USB
peripheral devices. USB3.1 performance is 2 times faster than USB3.0 and 20
times faster than USB2.0 connectivity. With SUNIX unique technology, it can
output efficient power to USB device without additional power adapter
connection. SUNIX USB2312 is an ideal choice for external storage devices, MP3
players, external writer, digital cameras, webcam, networking and video devices,
and all other USB devices.
Features
-
PCI Express Base Specification Revision 2.0 dual-lane
(x2).
-
Compliant with Universal Serial Bus 3.1 specification
Gen2.
-
Compliant with xHCI (eXtensible Host Controller
Interface) specifications Revision 1.1.
-
Supports simultaneous operation of multiple USB 3.1,
3.0, USB 2.0 and USB 1.1 devices.
-
Supports USB data transfer rate of 10G/5G/480/12/1.5
Mbps.
-
Expands dual external USB3.1 Super-Speed plus Type-A
ports on the system.
-
USB port supplies maximum +5VDC / 900mA power output to
USB device.
-
Built-in over current protection on each USB
port.
-
Support device remote wakeup function from USB keyboard
or mouse.
-
Hot-swapping feature allows connect/disconnect device
without powering down the system.
-
Driver supports for Microsoft Windows 7, 8.x and 10
operation systems.
-
Certified by Electromagnetic Compatibility (CE, FCC,
VCCI, C-Tick, BSMI) and RoHS approval.
Specifications
Hardware
| BUS |
PCI Express Spec 2.0,
Dual-Lane (x2) |
| Controller |
PCI Express USB3.1
Host controller, Asmedia ASM1142 |
| USB Standard |
eXtensible Host
Controller Interface (xHCI)Rev1.1 |
| IRQ & IO |
Assigned by
System |
USB
Communication
| Interface |
Universal Serial Bus 3.1 / 3.0 / 2.0
/ 1.1 |
| Speed |
Super Speed+ (10Gpbs), Super Speed
(5Gpbs), High Speed (480Mbps), Full Speed (12Mbps), Low Speed
(1.5Mbps) |
| No. of Port |
2-port |
| PCB Connector |
USB3.1 USB Type-A port |
| Protection |
15KV IEC61000-4-2 Air Gap
Discharge
8KV IEC61000-4-2 Contact
Discharge |
Power
| Source |
PCIe Bus Power |
| Output
Capacity |
USB Type-A Port:
+5VDC / Maximum 0.9A / each port
Note: Total power output capacity will be
limited by system power supply. |
| Over Current
Protection |
USB Type-A Port:
+6VDC / 1.1A / each port / PTC
Fuse |
| Power Consumption |
1.1 W @ 3.3V (board only without
power output to USB device) |
Driver Support
| Windows |
Windows 7 (X86/X64)
Windows 8.x / 10 (X86/X64) (Windows in-box
driver) |
| Linux |
Linux 2.6.31 or later (Linux OS
already implemented USB3.0 driver) |
Environment
| Operation
Temperature |
0 to 60C (32 to 140F) |
| Operation Humidity |
5 to 95% RH |
| Storage Temperature |
-20 to 70C (-4 to
158F) |
Regulatory Approvals
| EMC |
EUR: CE, EN55022 Class B, EN55024,
EN61000-3-2, EN61000-3-3
US: FCC Part 15
Class B
TAIWAN: BSMI: CNS13438
AS/NZS: C-Tick: CISPR22
JAPAN: VCCI |
| Green |
RoHS, CRoHS,
WEEE |
Physical Characteristics
| PCB
Dimension |
79.3 x 68.5 mm |
| Bracket |
Standard 120 mm (Low Profile
80mm) |
| Bracket Space |
1 |
