DV2760 | Draytek Vigor 2760 VDSL/ADSL2+ Router

Overview

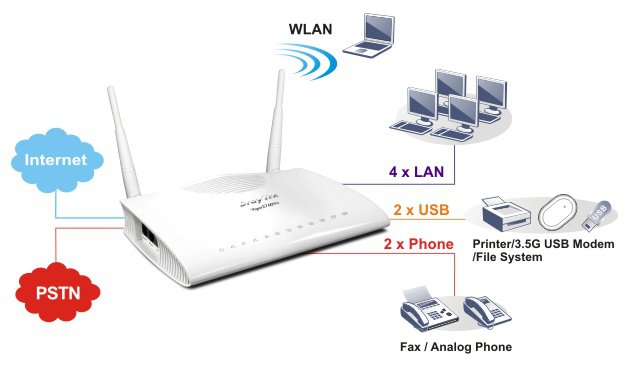

The Vigor2760 series VDSL2/ADSL2+ routers are designed for VDSL2 broadband network and can also support ADSL2/2+ fixed line. There are three models: Vigor2760, Vigor2760n (with IEEE 802.11n WLAN), and Vigor2760Vn (with VoIP and IEEE 802.11n WLAN,coming soon). With future IPv6 support for future network and higher-speed WAN throughput, the high-definition multi-media streaming is available for home entertainment and digital learning. The embedded VPN connections can allow family members to utilize ultimate broadband performance to realize home office. The MAC access control, multiple-SSID, authentication management on WLAN creates much secure wireless network. The users of your connected PCs can use Web Portal Log-in and Bulletin Board to remind each other. The content security management (CSM) prevents your family or home office from unwanted web sites/access.

• NBN (National Broadband Network Australia) Ready
• UFB (Ultra-Fast Broadband New Zealand) Ready
• Built-in VDSL2 / ADSL2+ modem
• Selectable Gigabit WAN / LAN (for NBN Network Termination Device or other xDSL / Cable modem)
• 4 x Gigabit LAN ports with 30,000 NAT sessions and IPv6
• Object-based SPI Firewall, Content Security Management (CSM) and QoS
• 2 x VPN tunnels with hardware accelerator
• 2 x USB ports for 3G / 4G Backup, FTP server & network printers
• Support TR-069 for VigorACS SI Central Management
• 2 years back to base warranty

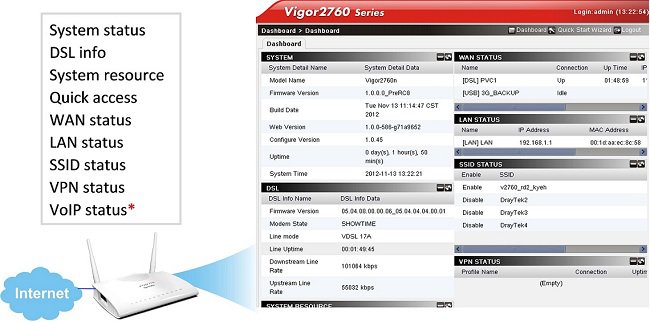

Drayek implemented Dashboard on WUI of Vigor2760 series in order to let you have summarized data of WAN/LAN/WLAN functionality.
