All stock codes associated to this product
VE810, KVAVE810, KVA-VE-810, 4710423777729
Overview

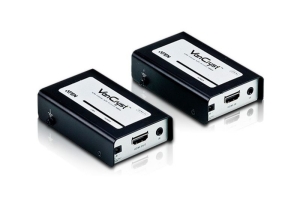

The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI

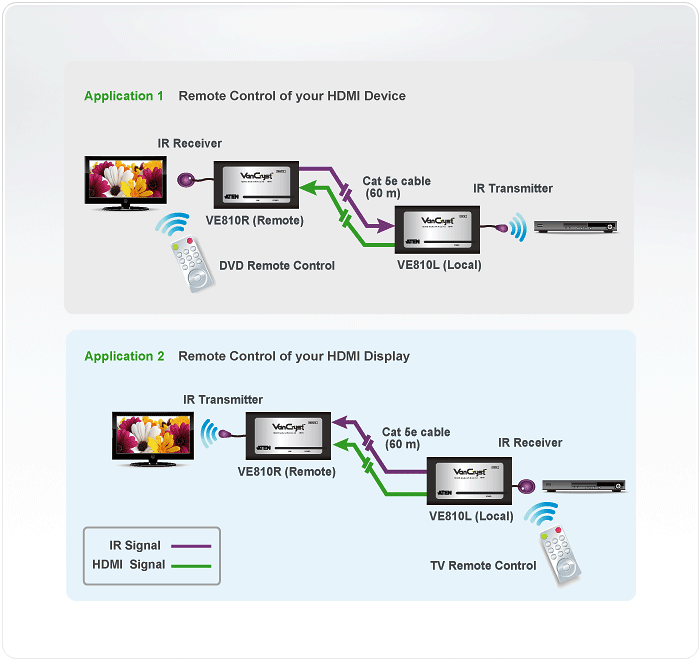

source device using two Cat 5e cables. In addition, VE810 is equipped with IR
signaling pass-through which allows the IR channel to control from the remote to
local unit, to control the HDMI source, or from the local to remote unit, to
control the display device
For flexibility and convenience, the VE810 setup requires only one power
adapter for both units. The VE810R remote unit will function without the need of
an additional power adapter because it will be powered by the VE810 local
unit.
Features
Remote Control
Either the HDMI device or display can be controlled via IR control
Non-Powered (Only one power adapter)
The remote unit functions without the need of an additional power adapter
- Uses less expensive Cat 5e cables to connect the local and the remote
units
- Supports IR signals for remote control
- Either the HDMI device or display can be controlled via IR control
- 8 segment equalization adjustment switch optimizes display quality
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality – 1920 x 1200 @ 60Hz , up to 1080p
- Supports Dolby True HD and DTS HD Master Audio
- HDMI (3D, Deep Color)
- DDC compatible
- HDCP 1.1 compatible
- Compatible with all ATEN HDMI switches and splitters
- Non-Powered (only require one power adapter)
Specifications
|
Video
Input |
VE810L |
VE810R |
|
Interfaces |
1 x HDMI Type A Female
(Black) |
N/A |
|
Impedance |
100 |
N/A |
|
Max.
Distance |
1.8 m |
N/A |
|
|
|
|
Video
Output |
|
|
|
Interfaces |
N/A |
1 x HDMI Type A Female
(Black) |
|
Impedance |
N/A |
100
|
|
|
|
|
Video |
|
|
|
Max. Data
Rate |
6.75 Gbps (2.25 Gbps
Per Lane) |
6.75 Gbps (2.25 Gbps
Per Lane) |
|
Max. Pixel
Clock |
225
MHz |
225
MHz |
|
Compliance |
HDMI (3D, Deep
Color) |
HDMI (3D, Deep
Color) |
|
HDCP 1.4
Compatible |
HDCP 1.4
Compatible |
|
Max. Resolutions /
Distance |
Up to 1080p@40m;
1080i@60m |
Up to 1080p@40m;
1080i@60m |
|
|
|
|
Audio |
|
|
|
Input |
1 x HDMI Type A Female
(Black) |
N/A |
|
Output |
N/A |
1 x HDMI Type A Female
(Black) |
|
|
|
|
Control |
|
|
|
IR |
1 x Mini Stereo Jack
Female (Black) |
1 x Mini Stereo Jack
Female (Black) |
|
|
|
|
Power |
|
|
|
Connectors |
1 x DC
Jack |
1 x DC
Jack |
|
Consumption |
5 VDC,
1.52W |
5 VDC,
1.35W |
|
|
|
|
Environmental |
|
|
|
Operating
Temperature |
0 -
50C |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
0 - 80% RH,
Non-Condensing |
|
|
|
|
Physical
Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.16 kg ( 0.35 lb
) |
0.16 kg ( 0.35 lb
) |
|
Dimensions (L x W x
H) |
9.00 x 5.74 x 2.40
cm |
9.00 x 5.74 x 2.40
cm |
|
(3.54 x 2.26 x 0.94
in.) |
(3.54 x 2.26 x 0.94
in.) |
|
Carton
Lot |
20
pcs |
20
pcs |
|
|
|
|
Package
Contents |
1x VE810L (Local Unit)
HDMI Extender |
|
|
1x VE810R (Remote Unit)
HDMI Extender |
|
|
1x Power Adapter (Local
Unit) |
|
|
1x Mounting
Kit |
|
|
1x User
Instructions |
|
|
1x IR
Receiver |
|
|
1x IR
Transmitter |
|
