Overview
The Sapphire Snap-in Mobile Rack is a convenient external removable hard
drive system. Come in choice of model with eSATA connection or combination of
both eSATA and USB 3.0 connections, hard drive of any capacity can be
conveniently added or removed from any system, similar to a tape cassette. With
eSATA connection, the hard drive can also be used as bootable device for any
system.The Sapphire Snap-In Mobile Rack is constructed in a sturdy light weight
anodized aluminum frame for easy transportation and durability in various
application environment.

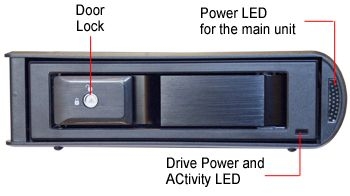

Front View

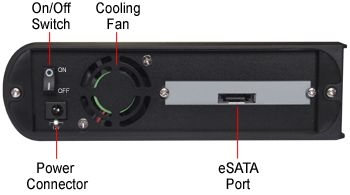

Rear View
Note: Hard drive shown above is for illustration purpose only and is not
partof the product
2.5" hard drive can also be installed into this Sapphire device
using the Addonics optionalSnap-In 25, a 2.5" - 3.5" SATA HDD
adapter.

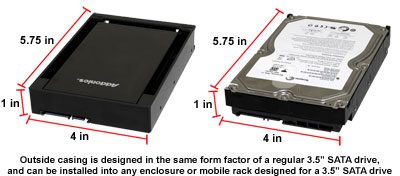

Snap-In 25 on the left has the exact same dimension of the3.5" hard drive on
the right

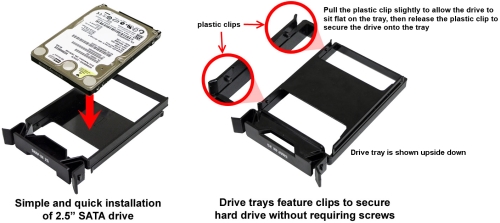

Installing 2.5" SATA drive into the Snap-In 25
Features
- Supports any 3.5" SATA I, II or III hard drives
- Drive can be added or removed like VHS cassette without any drive tray or
special tool*
- Choice of eSATA, USB 3.1, eSATA/USB 3.1 and eSATA/USB 3.0 combo interface
- USB model is also available with 4K sector format to allow using large
drive over 2TB in Windows XP or older type of OS that has no support for GPT
partition
- Rugged anodized aluminum construction for rough handling, fast cooling and
for easy transportation

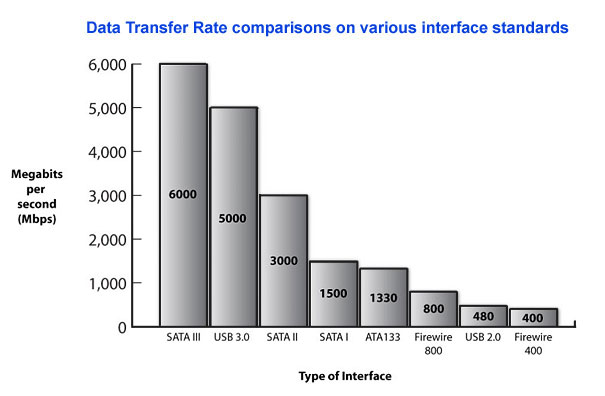

- Maximum data throughput:
- eSATA support full SATA 3.0 speed of 6 Gbps when connect to eSATA
port supporting this speed
- USB 3.0 - up to 5Gbps, 480Mbps when connecting to USB 2.0
- USB 3.1 - up to 10Gbps
- Key lock to secure hard drive inside the enclosure
- Compact size for convenient transportation
- Rear mount 40x40mm cooling fan
- LED for drive access and power
- Plug and play
- Bootable under DOS when connecting via eSATA port
- Simple installation
- OS Compatibility:
- eSATA connection: DOS, all Windows, Linux (Kernel 2.4 and above),
Solaris 10, Mac OS X and above.
- USB connection: Windows XP and newer releases, Linux (Kernel 2.4 and
above), Solaris 10, Mac OS X and above.
* SATA hot swap feature works only with controllers that support this
feature. Please verify with your controller manufacturer if you need to have hot
swap in your application. You may consider installing one of the Addonics
Serial ATA host controllers to your systems to add the hot swap
capability
Specifications
Supported Drive Type
|
3.5" SATA or SATA II or SATA III hard drive
2.5" SATA I, II or III hard drive with optional Addonics Snap-In 25
(model: AE25SN35SA) |
Supported Interface |
eSATA or USB 3.1/3.0/2.0 depending on the
model |
Enclosure material |
anodized aluminum |
Bezel Color: |
black |
Cooling fan: |
one 45 x 45 mm. |
LEDs: |
Power and drive access |
Power source: |
110/240V AC/DC 12V adapter |
Power consumption |
< 1 watt (not including drive) |
Supported OS |
- eSATA - DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Windows 7, Linux
(Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- USB - DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Windows 7, Linux
(Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
|
Dimensions (L x W x H): |
9.88 x 6.88 x 2.00 in ( 251 x 175 x 50.8 mm) |
Weight: |
~ 2.45 lbs. (1.11 kg) without drive |
Operating temperature and
humidity |
+5C to +60C, 5% to 95% RH
(non-condensing) |
Storage temperature and
humidity |
-30C to +70C, 5% to
90% |
Minimum System Requirements
- PC/AT or Compatible System
- One eSATA port or USB port
- Pentium or greater
- Minimum 32 MB RAM
- 10 MB minimum free hard disk space
- One available eSATA or USB 2.0 port
Contents
Sapphire enclosure integrated with Snap-In mobile rack II (AESNMRS) and eSATA
bridge, 3-foot eSATA cable, 110/240V AC/DC 12V power adapter (AAP12V3A-US), user
guide.
