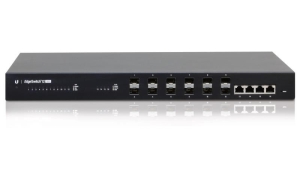

The EdgeSwitchâ„¢ Fiber is an aggregation switch that offers robust
performance, low latency, and intelligent switching for growing networks.
Gigabit Connectivity
For fiber connectivity, the EdgeSwitch Fiber features 12SFP ports, eight of
which also support 100Mbps. For copper connectivity, the EdgeSwitch Fiber offers
four Gigabit RJ45 ports.
Powerful Switching Performance
The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process
traffic on all ports at line rate without any packet loss. For its total,
nonblocking throughput, the EdgeSwitch Fiber supports up to 16Gbps.
Advanced Enterprise Switching
The EdgeSwitch Fiber uses a sophisticated operating system that provides
advanced switching features, including VLAN tagging and link aggregation, and
limited layer-3 features, including static routing and DHCP server
functionality.
Specifications
ES12F |
Dimensions |
443 x 221 x 43 mm (17.44 x 8.70 x 1.69") |
Weight |
Rack-Mount Brackets Included |
RackMount Brackets Excluded |
2.68 kg (5.91 lb) |
2.59 kg (5.71 lb) |
Enclosure Characteristics |
SGCC Steel |
Total NonBlocking Throughput |
16 Gbps |
Switching Capacity |
32 Gbps |
Forwarding Rate |
23.81 Mpps |
Max. AC Power Consumption |
56W |
Power Method |
AC |
DC |
100-240VAC/50-60 Hz, Universal Input |
DC 56W, 25 to 16V, with 2.5 mm DC Power Inline
Connector |
Supported Voltage Range |
100 to 240VAC |
25 to 16VDC |
Power Supply |
AC/DC, Internal, 56W DC |
LEDs Per Data Port |
Speed/Link/Activity |
Networking Interfaces |
(8) 100/1000 Mbps SFP Ethernet Ports (4) 1000 Mbps SFP Ethernet
Ports (4) 10/100/1000 Mbps RJ45 Ethernet Ports |
Management Interface |
(1) RJ45 Serial Port, Ethernet In/Out Band |
Certifications |
CE, FCC, IC |
Rackmount |
Yes, 1U High |
ESD/EMP Protection |
Air: 24 kV, Contact: 24 kV |
Operating Temperature |
-5 to 40 C (23 to 104 F) |
Operating Humidity |
5 to 95% Noncondensing |
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
|
|
|
|
Software Information |
Core Switching Features |
-
ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
-
IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
-
IEEE 802.1D: Spanning Tree Compatibility
-
IEEE 802.1S: Multiple Spanning Tree Compatibility
-
IEEE 802.1W: Rapid Spanning Tree Compatibility
-
IEEE 802.1Q: Virtual LANs with Port-Based VLANs
-
IEEE 802.1p: Ethernet Priority with User Provisioning and
Mapping
-
IEEE 802.1X: Port-Based Authentication with Guest VLAN
Support
-
IEEE 802.3: 10BASE-T
-
IEEE 802.3u: 100BASE-T
-
IEEE 802.3ab: 1000BASE-T
-
IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07:
Multiple Registration Protocol
-
IEEE 802.3ac: VLAN Tagging
-
IEEE 802.3ad: Link Aggregation
-
IEEE 802.3x: Flow Control
-
IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause
12 (GARP)
-
IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10
(GMRP)
-
IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2
(GVRP)
-
RFC 4541: Considerations for Internet Group Management Protocol
(IGMP) Snooping Switches
-
RFC 5171: Unidirectional Link Detection (UDLD)
Protocol |
Advanced Layer 2 Features |
-
Broadcast Storm Recovery
-
Broadcast/Multicast/Unknown Unicast Storm Recovery
-
DHCP Snooping
-
IGMP Snooping Querier
-
Independent VLAN Learning (IVL) Support
-
Jumbo Ethernet Frame Support
-
Port MAC Locking
-
Port Mirroring
-
Protected Ports
-
Static MAC Filtering
-
TACACS+
-
Voice VLANs
-
Unauthenticated VLAN
-
Internal 802.1X Authentication
Server |
Platform Specifications |
-
DHCP Server
-
Maximum Number of Pools: 8
-
Maximum Number of Leases (Total): 128
-
Routing
-
Number of Routes: 16
-
Number of Routing Interfaces: 15
-
VLANs: 255
-
MAC Addresses: 8k
-
MSTP Instances: 4
-
LAGs: 6
-
ACLs: 100 with 10 Rules per Port
-
Traffic Classes (Queues): 8 |
System
Facilities |
-
Event and Error Logging Facility
-
Run-Time and Configuration Download Capability
-
PING Utility
-
FTP/TFTP Transfers via IPv4/IPv6
-
Malicious Code Detection
-
BootP and DHCP
-
RFC 2021: Remote Network Monitoring Management Information Base
Version 2
-
RFC 2030: Simple Network Time Protocol (SNTP)
-
RFC 2819: Remote Network Monitoring Management Information
Base
-
RFC 2865: RADIUS Client
-
RFC 2866: RADIUS Accounting
-
RFC 2868: RADIUS Attributes for Tunnel Protocol Support
-
RFC 2869: RADIUS Extensions
-
RFC 3579: RADIUS Support for EAP
-
RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
-
RFC 3164: BSD Syslog Protocol |
Management |
|
Layer 3
Routing |
-
Static Routing
-
Policy Based Routing |
QoS |
-
Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and
Layer 2 Traffi Classifi Based on:
-
TimeBased ACL
-
Source/Destination IP Address
-
TCP/UDP Source/Destination Port
-
IP Protocol Type
-
Type of Service (ToS) or Differentiated Services (DSCP) Field
-
Source/Destination MAC Address
-
EtherType
-
IEEE 802.1p User Priority
-
VLAN ID
-
RFC 1858: Security Considerations for IP Fragment Filtering
-
Optional ACL Rule Attributes
-
Assign Flow to a Specific Class of Service (CoS) Queue
-
Redirect Matching Traffic Flows
-
Differentiated Services (DiffServ)
-
Classify Traffic Based on Same Criteria as ACLs
-
Mark the IP DSCP or Precedence Header Fields, Optional
-
Police the Flow to a Specific Rate with Two-Color Aware
Support
-
RFC 2474: Definition of the Differentiated Services Field (DS
field) in the IPv4 and IPv6 Headers
-
RFC 2475: An Architecture for Differentiated Services
-
RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
-
RFC 3246: An Expedited Forwarding PHB
-
RFC 3260: New Terminology and Clarifications for DiffServ
-
Class of Service (CoS) Queue Mapping Configuration
-
AutoVoIP: Automatic CoS Settings for VoIP
-
IP DSCP-to-Queue Mapping
-
Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or
Untrusted)
-
Interface Egress Shaping Rate
-
Strict Priority versus Weighted Scheduling per
Queue |
|
|
|
|
|
