All stock codes associated to this product
LH24OHEPKBB/XY, 3298317

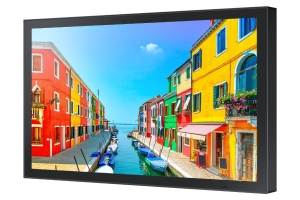

Samsung OH24E | IP Rated Outdoor LCD
Monitor
Overview
A compact but robust outdoor display, suited for a range of environmental
conditions.
Key Highlights
Outdoor
24/7
operation
High
Brightness
Built-in
MagicInfo S3
Quad
Core CPU
Features

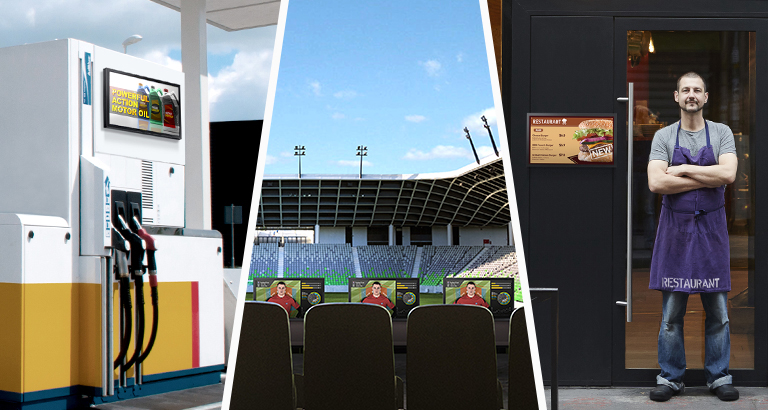

Robustly designed compact display suited for any environment
condition
Samsungs versatile small outdoor signage allows businesses to discover a new
world of customer engagement through the innovation of being able to showcase
compelling and entertaining content to captive audiences at ATMs, gas pumps and
other routine locations that they encounter throughout their day.
Richly deliver business messaging in outdoor environments with high
brightness and picture quality
Enhance brand recognition, increase the flow of customer traffic and boost
income with bright, vivid displays that keep viewers focused on the business
message. Enthrall and mesmerize customers with high 1,500 nit brightness that
enhances readability in outdoor daylight conditions. Deliver super dynamic
visibility outdoors through a 4,000:1 contrast ratio, which enables the display
to show content more vividly and crisply with each and every detail and true,
deep black hues.

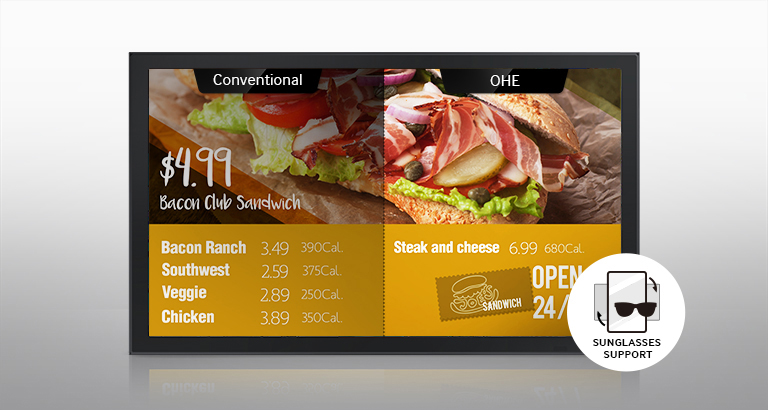

Increase messaging visibility with Magic Protection
Glass
Enhance clearer message delivery for greater impact with innovative
Reflection Cancelling Film, which reduces reflection and prevents glare under
outdoor environments with direct sunlight. Embedded Samsung-developed RC film
achieves a pinnacle of optical science that delivers clearer, more vivid images
and presents distinctive differences in color, brightness and color uniformity
for higher visibility. This cutting-edge, visual technology has been certified
at a level of High Visibility Outdoor Performance by TV Rheinland, an
international certification organization.

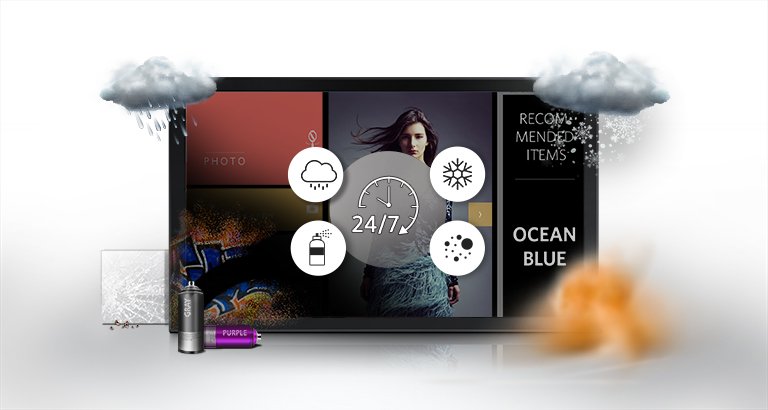

Rely on strong 24/7 durability in virtually any
environment
Present business messaging 24/7 even when the signage is exposed to direct or
indirect sunlight, or to harsh environmental conditions such as dust, water and
heat. OH24E SMART Signage is mechanically designed to endure high temperatures
that can withstand a wide operating range of: -30C (-22F) to 50C (122F)
temperature variation. The displays waterproof and dustproof design covers the
fan, drain hole, plug and power outlets and features IP56-certified protection
that satisfies the international standard of protection as mandated by the
International Electrotechnical Commission (IEC). Enhanced anti-vandalism
technologies (tempered glass and post-processing) prevent breaks, scratches and
defacement to optimize the signage for outdoor usage.

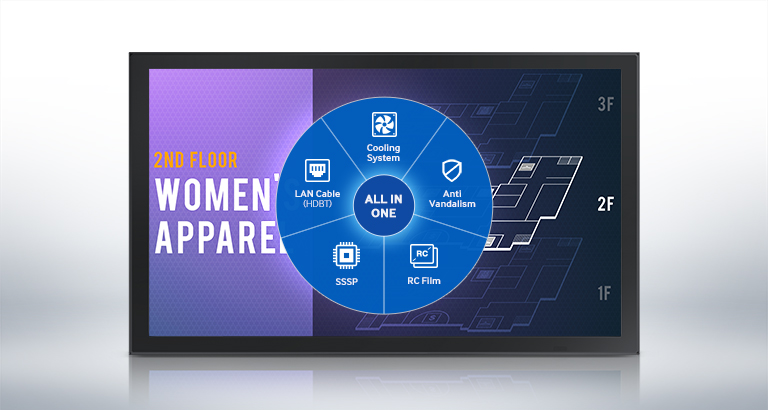

Simplify outdoor signage with an all-in-one solution
Conveniently and easily install, design and operate outdoor signage with an
all-encompassing array of features in a single display. The all-inclusive design
features ingression protection, anti-reflection technology and vandalism
protection. All of the components arrive perfectly preassembled. The simple
OH24E SMART Signage enclosure requires no additional parts, so it is completely
ready for virtually any space.

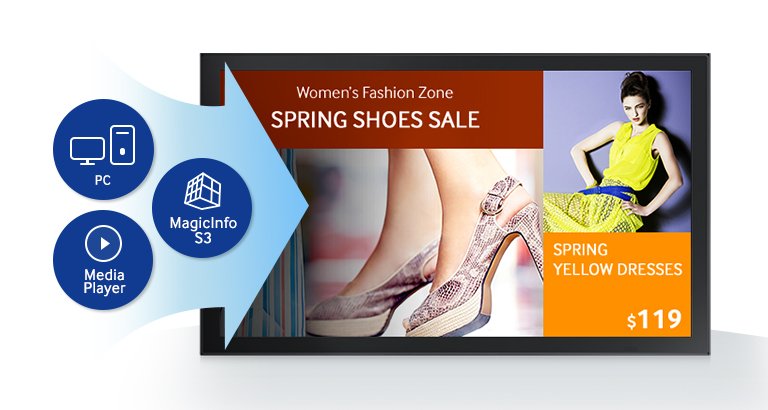

Conveniently and simply manage a rich array of content with an
advanced content management platform
Deliver myriad rich content with OH24E built-in media player and simplified
management through 3rd Generation Samsung SMART Signage Platform (SSSP). The
embedded, all-in-one 3rd Generation SSSP eliminates the need for a separate PC
or media player to streamline digital signage operation and improve total cost
of ownership (TCO).
New MagicInfo S3, a content management solution embedded in 3rd Generation
SSSP enables you to create, deploy and manage content more easily than the
previous version with an enhanced UI and UX. MagicInfo S3 leverages 3rd
Generation SSSP, an open platform that provides compatibility with myriad
third-party software for flexibility and ease of use with other
applications.

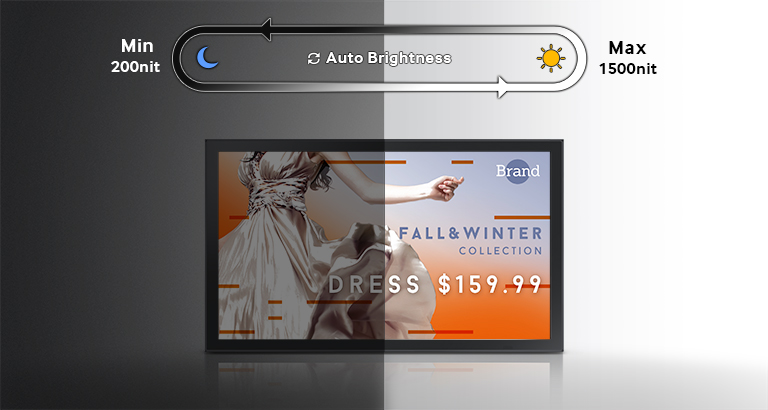

Display content with optimal brightness and
cost-efficiency
Optimise brightness control while reducing display operating expenses and
power consumption with an automatic brightness sensor. You can customise the
maximum and minimum brightness within a range of 200-nit to 1500-nit brightness
to complement any environment and control expenses, while extending the life of
the monitor.
Specifications
Panel |
|
|
|
|
|
|
|
Diagonal
Size |
24 |
Type |
S-VA |
Resolution |
1920*1080 (Full
HD) |
Pixel
Pitch(mm) |
273.9 X 273.9
(mm) |
Active Display
Area(mm) |
525.888x295.812 |
Brightness(Typ.) |
1500
nit |
Contrast
Ratio |
4000:01:00 |
Viewing
Angle(H/V) |
178/178 |
Response
Time(G-to-G) |
8ms |
Display
Colors |
8 bit -
16.7M |
Color
Gamut |
72% |
Haze |
0% |
|
|
|
|
Display |
|
|
|
|
|
|
|
Dynamic
C/R |
100,000:1 |
H-Scanning
Frequency |
60Hz |
V-Scanning
Frequency |
67.5KHz |
Maximum Pixel
Frequency |
148.5Mhz |
|
|
|
|
Display |
|
|
|
|
|
|
|
Speaker
Type |
N/A |
|
|
|
|
Connectivity |
|
|
|
|
|
|
|
Input |
RGB |
N/A |
Video |
HDMI |
Audio |
N/A |
Usb |
USB 2.0 x
1 |
Output |
RGB |
N/A |
Video |
N/A |
Audio |
Stereo Mini
Jack |
Power
Out |
N/A |
External
Control |
RS232C (In),
RJ45 |
External
Sensor |
N/A |
Tuner |
No |
|
|
|
|
Power |
|
|
|
|
|
|
|
Type |
Internal |
Power
Supply |
AC 100 - 240 V~ (+/- 10
%), 50/60 Hz |
Power
Consumption |
Max[W/h] |
TBD |
Typical[W/h] |
TBD |
BTU(Max) |
TBD |
Sleep
mode |
TBD |
Off
mode |
TBD |
|
|
|
|
Mechanical
Specification |
|
|
|
|
|
|
Dimension
(mm) |
Set |
563.2 333.2
66.4 |
Package |
678.0 418.0
153.0 |
Weight
(kg) |
Set |
10.6 |
Package |
12 |
VESA Mount
(mm) |
100
100 |
Protection
Glass |
Yes (5T Tempered
Glass) |
Stand
Type |
N/A |
Media Player Option
Type |
N/A |
Bezel Width
(mm) |
18.4 |
|
|
|
|
Operation |
|
|
|
|
|
|
|
Recommended Usage
Hours |
24/7 |
Operating
Temperature |
-30.0
~ 50.0 |
Humidity |
10.0
% ~ 80.0 % |
|
|
|
|
Feature |
|
|
|
|
|
|
|
Key
Features |
Slim High Brightness,
IP56 Outdoor Built-in MagicInfo Player S3, SSSP 3.0 |
Special
Features |
IP56 Certified for
Simple Enclosure Outdoor, Protection Glass(Anti Graffiti, Infrared
Reduce), Polarized Sun Glasses Viewable in any direction, Portrait
Installation Support, Button Lock, Lamp Error Detection, Auto Brightness
Control with Ambient Brightness Sensor, Anti Image Retention, Temperature
Sensor, Pivot Display, MagicInfo S3, Smart Scheduling, RJ45
MDC |
Internal
Player |
Processor |
Cortex-A9 1GHz Quad
Core CPU |
On-Chip Cache
Memory |
L1 (I/D) : 32KB / 32KB
L2 (Unified) : 1MB |
Clock
Speed |
1GHz CPU
Quad |
Main Memory
Interface |
1.5GB Dual 48bit
DDR3-933 (1866MHz) |
Graphics |
2D & 3D Graphics
Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES |
Storage
(FDM) |
8GB (2GB Occupied by
O/S, 6GB Available) |
Multimedia |
Video Decoder -
MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3
(DD), MPEG, DTS and etc. |
IO
Ports |
USB
2.0 |
Operating
System |
Samsung Proprietary
OS(VDLinux) |
|
|
|
|
Certification |
|
|
|
|
|
|
|
Safety |
UL (USA) : UL 60950-1
CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO
(Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB
(Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ
(Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM
(Mexico) : NOM-019-SCFI-1998 IRAM (Argentina) : IEC60950-1 SASO (Saudi
Arabia) : IEC60950-1 |
EMC |
FCC (USA) : Part 15,
Subpart B Class A CE (Europe) : EN55022, EN55024 VCCI (Japan) : V-3
(CISPR22) KCC (Korea) : KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22)
C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC (China) : GB9254-2008,
GB17625.1-201 |
Environment |
N/A |
|
|
|
|
Accessory |
|
|
|
|
|
|
|
Included |
Quick Setup Guide,
Regulatory Guide, Warranty Card, Power Cord, Remote Controller,
Batteries |
Optional |
Stand |
N/A |
Mount |
N/A |
Specialty |
N/A |
|
|
|
|
Media
Player |
|
|
|
|
|
|
|
Media
Player |
N/A |
