All stock codes associated to this product
LH46UDEHLBB/XY, 8806088238159

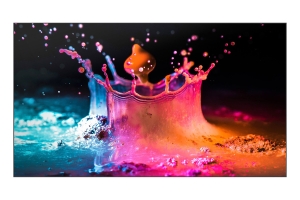

Samsung UD46E-A Full HD Videowall Display LCD
Monitor
Overview
Powerful video wall solution with advanced color calibration and seamless
bezel design.
Key Highlights
Videowall
24/7
operation
New
factory calibration
Ultra
narrow bezel
Direct
LED
Anti-Glare
-
Premium UHD video wall solution based on daisy chain through the use of
Display Port (DP) 1.2
-
Brightness uniformity and color accuracy with Samsung Color Expert
Technology and factory calibration
-
Optimum levels of brightness (700 nit) for perfect visibility at any
time of day or in indoor settings
-
Ultra-narrow 3.5mm bezel-to-bezel design for a near-seamless appearance
of the video wall
-
Clear message through an anti-glare panel (haze 44%), with reliable
24/7 operation
Features

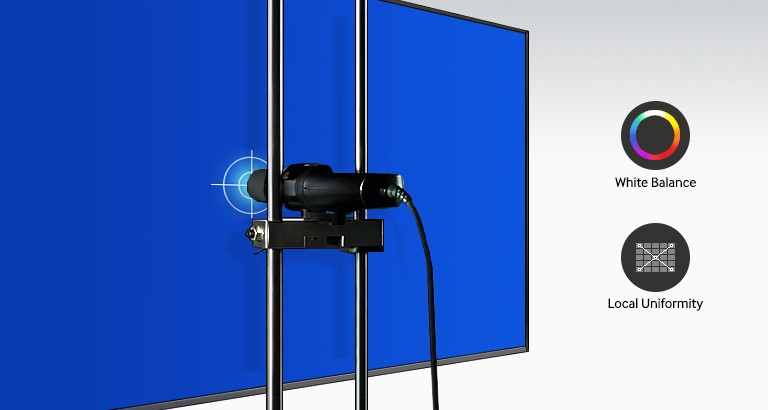

Achieve Ultimate Picture Quality through Advanced Factory
Calibration
Any irregularity in a video walls brightness and color accuracy across
displays can negatively impact the viewing experience. To eliminate these types
of color expression gaps and maintain a fully-aligned, consistent and
captivating presentation, Samsungs UDE Series video walls feature advanced
factory tuning, innovative hardware and exceptional user calibration tools.
Samsungs multi-step factory calibration process tunes video wall displays to the
highest-performing uniform brightness and color across each display
out-of-the-box. After calibration, the displays offer an industry-leading local
uniformity of more than 90 percent for optimal color accuracy across the entire
display. The calibration process also enables the displays to offer a superior
white balance.*
In
addition to rigorous factory calibration, users can manage brightness and color
uniformity conveniently with Samsung Color Expert, a powerful free software
program. Through these advanced color management solutions, the UDE Series video
walls enable large-scale presentations to feature superior uniformity,
consistency and performance for the ultimate in color expression.

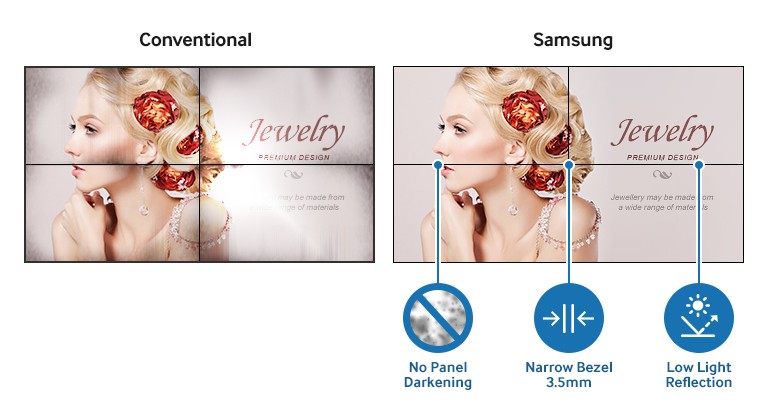

Captivate Audiences through a Narrow Bezel and Optimized Panel
Design
The enhanced panel quality of Samsungs UDE-A video wall elevates visual
messaging and content through a seamless image and superior clarity. Featuring
an ultra-narrow 3.5mm bezel-to-bezel design format (2.3mm bezel on the left and
top sides and 1.2mm bezel on the right and bottom sides), which is the slimmest
bezel in the video wall industry, the display creates a virtually uninterrupted
viewing experience to keep audiences focused on content rather than the display
itself.

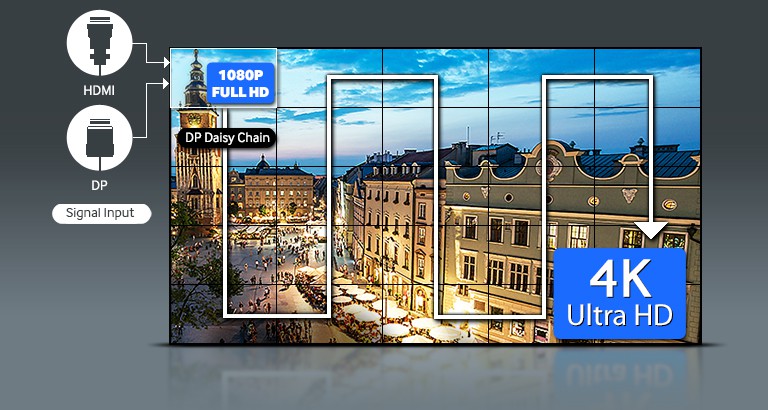

Achieve UHD Picture Quality without Additional Devices through
Industry-Leading Technology
With an increase in screen size, content resolution becomes even more
important to deliver impactful content. As the industrys first video walls to
feature integrated DisplayPort (DP) 1.2 and HDMI ports, Samsungs UDE Series
video walls, UDE-A, can display Ultra-High Definition (UHD) contents across
video wall configurations as large as 5x5 without the purchase of additional
expensive devices. In comparison to conventional video walls that typically
require added equipment and only accommodate up to a 2x2 arrangement, the UDE
Series UHD presentation represents a sharp improvement. By supporting
High-Bandwidth Content Protection (HDCP) daisy chains, the UDE Series video
walls also can display UHD content, such as live TV or Blu-Ray discs, without
having to purchase additional equipment, minimizing the cost of deploying
multiple displays as part of large-scale promotional signage or informational
presentations.
High-Performing Display Readability and Durability for your Business
Environment
Samsungs UDE-A Series video walls deliver a continuously immersive and
engaging viewing experience through high-performing readability and durability.
Designed for 24/7 continuous operation in challenging environments, the UDE-A
Series video walls operate at the speed of your business without losing
performance or display quality. The displays offer 700nit brightness to
broadcast vivid, highly legible images and visual messaging in various lighting
conditions.

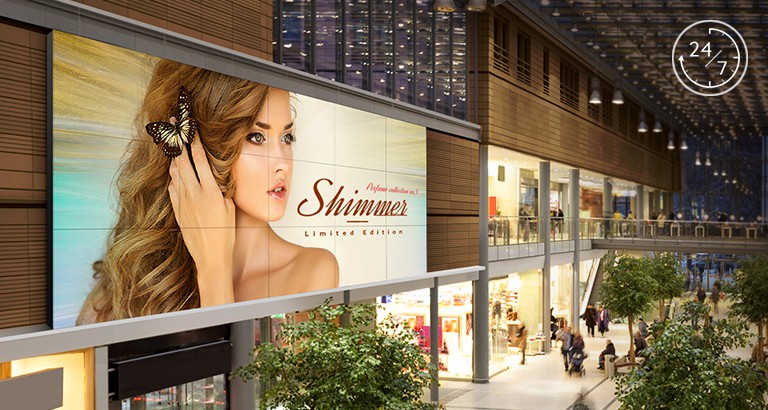

The combination of these embedded design benefits makes the UDE-A Series
video walls ideal for content and information delivery in usage environments
that require enhanced readability, such as transportation terminals, shopping
malls, office lobbies and control rooms.

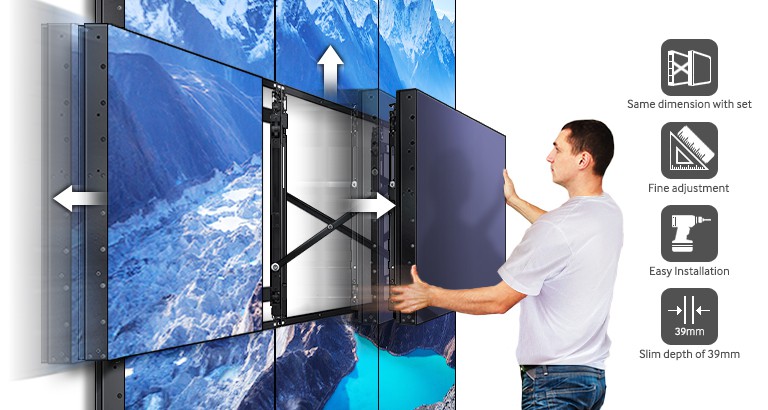

A Slim, Easily Configurable Wall Mount* Adaptive to your Business
Needs
Samsungs versatile UDE Series video walls come equipped with a range of
user-friendly features to ensure a seamless installation complementary to your
specific operational needs. The displays come with an industry-leading slim,
39mm depth video wall mount for easy installation and calibration to hold each
display in place without distracting viewers. As the wall mount is sized to the
dimensions of the video wall, users can simply install the mount first and fit
into the video wall. This user-friendly design eliminates the need to measure
the wall mount and calculate the gap to properly size, which can be experienced
with standard video wall mounting systems. Once installed, the mounting system
offers three-dimensional axis tuning, including x-axis (up-and-down with
rotational screws); y-axis (left and right with rail movement); and z-axis (push
and pull pop-up capability), for effortless alignment of individual displays to
form a continuous, gap-free presentation. This dimensional consistency and easy
adjustability also prevents the need to dismantle the entire video wall should
one specific section require adjustment.
*Additional purchase required for wall mount
Specifications
Panel |
|
|
|
|
|
|
|
Diagonal
Size |
46 |
Type |
D-LED
DID |
Resolution |
1920*1080 (Full
HD) |
Pixel
Pitch(mm) |
0.53025mm(H)*0.53025mm(V) |
Active Display
Area(mm) |
1018.08mm*572.67mm |
Brightness(Typ.) |
700
nit |
Contrast
Ratio |
3500:01:00 |
Viewing
Angle(H/V) |
178/178 |
Response
Time(G-to-G) |
8ms |
Display
Colors |
8 bit -
16.7M |
Color
Gamut |
72% |
Haze |
25% |
|
|
|
|
Display |
|
|
|
|
|
|
|
Dynamic
C/R |
10,000:1 |
H-Scanning
Frequency |
30kHz ~
81kHz |
V-Scanning
Frequency |
48Hz ~
75Hz |
Maximum Pixel
Frequency |
148.5MHz |
|
|
|
|
Display |
|
|
|
|
|
|
|
Speaker
Type |
N/A |
|
|
|
|
Connectivity |
|
|
|
|
|
|
|
Input |
RGB |
Analog D-SUB, DVI-D,
Display Port 1.2 |
Video |
HDMI1,HDMI2 |
Audio |
Stereo mini
Jack |
Usb |
Only F/W
upgrade |
Output |
RGB |
DP1.2(Loop-out) |
Video |
N/A |
Audio |
Stereo mini
Jack |
Power
Out |
N/A |
External
Control |
RS232C(in/out),
RJ45 |
External
Sensor |
Detachable type(IR,
Ambient) |
Tuner |
No |
|
|
|
|
Power |
|
|
|
|
|
|
|
Type |
Internal |
Power
Supply |
AC 100 - 240 V~ (+/- 10
%), 50/60 Hz |
Power
Consumption |
Max[W/h] |
187 |
Typical[W/h] |
128 |
BTU(Max) |
638 |
Sleep
mode |
less than
0.5W |
Off
mode |
less than
0.5W |
|
|
|
|
Mechanical
Specification |
|
|
|
|
|
|
Dimension
(mm) |
Set |
1022.1x 576.6 x
97.4 |
Package |
1160 X 715 X
280 |
Weight
(kg) |
Set |
16.2kg |
Package |
22.6kg |
VESA Mount
(mm) |
600 * 400
(mm) |
Protection
Glass |
N/A |
Stand
Type |
N/A |
Media Player Option
Type |
SBB-C/DA/DI (Slide
In) |
Bezel Width
(mm) |
2.3mm(U/L),
1.2mm(R/B) |
|
|
|
|
Operation |
|
|
|
|
|
|
|
Recommended Usage
Hours |
24/7 |
Operating
Temperature |
0.0
~ 40.0 |
Humidity |
10.0
% ~ 80.0 % |
|
|
|
|
Feature |
|
|
|
|
|
|
|
Key
Features |
Ultra Narrow
Bezel |
Special
Features |
ACM Support(Advanced
Color Management), Auto Source Switching & Recovery, Haze 44%,
Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video
Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image
Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD
Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock
Keeping) |
Internal
Player |
Processor |
N/A |
On-Chip Cache
Memory |
N/A |
Clock
Speed |
N/A |
Main Memory
Interface |
N/A |
Graphics |
N/A |
Storage
(FDM) |
N/A |
Multimedia |
N/A |
IO
Ports |
N/A |
Operating
System |
N/A |
|
|
|
|
Certification |
|
|
|
|
|
|
|
Safety |
UL (USA) : UL 60950-1
CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO
(Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB
(Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ
(Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM
(Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi
Arabia) : IEC60950-1 |
EMC |
FCC (USA) FCC Part 15,
Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22)
KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick
(Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008,
GB17625.1-2012 |
Environment |
N/A |
|
|
|
|
Accessory |
|
|
|
|
|
|
|
Included |
Quick Setup Guide,
Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote
Controller, Batteries |
Optional |
Stand |
N/A |
Mount |
WMN-46VD |
Specialty |
MID-UD46DS |
|
|
|
|
Media
Player |
|
|
|
|
|
|
|
Media
Player |
SBB(Slide In/Optional),
Signage player box(Optional) |
