All stock codes associated to this product
CLW027CU00BLA, CL-W027-CU00BL-A
Overview
W2 CPU Water Block
Thermaltakes new Pacific W2 CPU Water Block delivers extreme cooling
performance and compatibility for custom PC builders. Featuring 0.25mm internal
fin construction, the Pacific W2 is manufactured with a full copper base, fits
most of G1/4 fittings. LED back-lit front logo is available in four colors:
blue, green, white, and clear (orange) lighting. A universal mounting mechanism
offer error-free as well as no-tools installation, providing the ultimate in
cooling performance.
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.
Anti-corrosion Design
Made in Taiwan, the Pacific W2 Water Block’s specially machined copper base
prevents corrosion and fully complies with Thermaltake’s highest quality
standards. The mating surface to the CPU sports an absolute mirror polish. In
combination, these features provide exceptional heat transfer and anti-corrosion
protection for the most demanding use conditions.

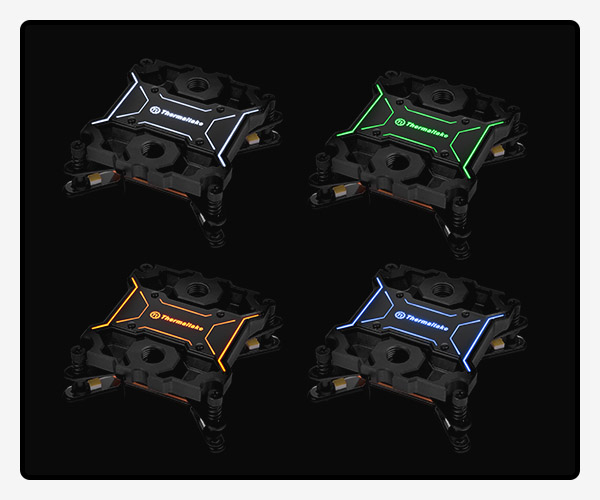

LED Back-lit Logo Design
The Pacific W2 water block includes four color plates: white, green, blue,
and clear lighting, delivering the best allocation with your internal build with
an LED back-lit front Thermaltake logo.

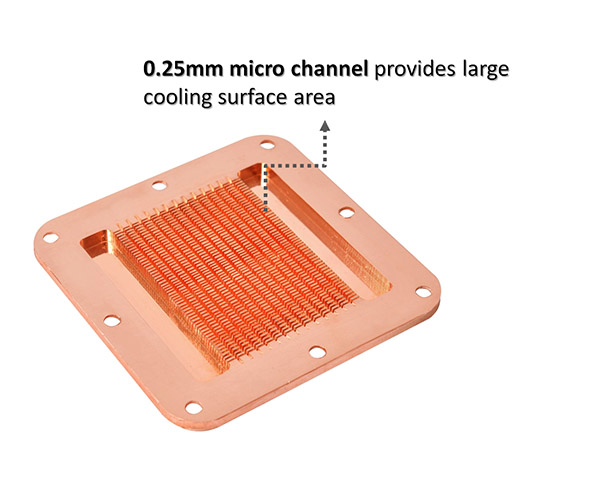

Optimized Micro-channel Structure
The Pacific W2 Water Block is designed with a compact form factor featuring
0.25mm micro-channel fin construction for optimal clearance and extreme heat
dissipation.
No-Fuss Expansion

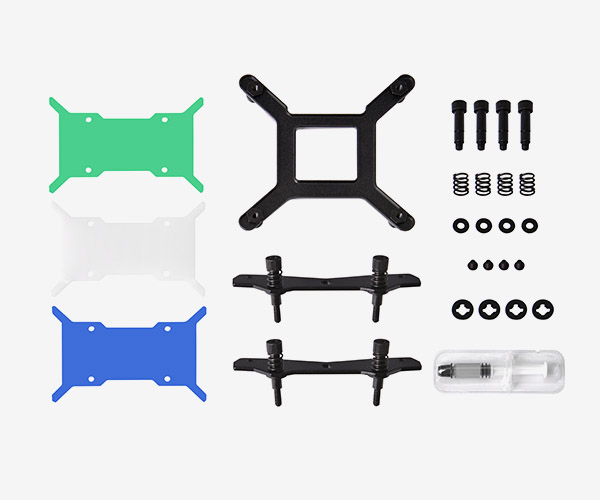

Designed to fit all modern CPU sockets with universal mounting mechanisms,
the Pacific W2 allows enthusiasts to build superior water cooling systems from
an aesthetic standpoint as well as incorporate modular chassis upgrades for the
future.
Cautions:
Thermaltake recommends the following steps to be taken after completing your
water loop setup:
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system copper, brass, nickel, aluminum, and steel from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
Specifications
P/N |
CL-W027-CU00BL-A |
Compatibility |
Intel |
LGA 2011/ 1155/1156/1150 |
AMD
|
FM2/FM1/AM3+/AM3/AM2+/AM2 |
Dimension |
90.8 * 89 * 28.2 mm |
Heatsink Material |
Copper + POM |
Threads |
G |
Weight |
410 g |
