All stock codes associated to this product
CLW133CU00BLA, CL-W133-CU00BL-A, II28622
Overview

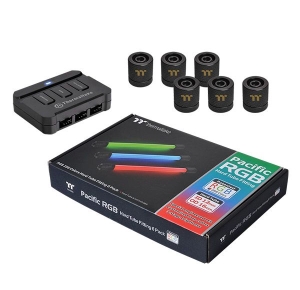

Pacific RGB G1/4 PETG Tube 16mm OD 12mm ID (6 Pack
Fittings)
Make your system a showcase for all to see with the newest member of
Thermaltake Pacific Series the Pacific RGB G1/4 PETG fitting, specially designed
for enthusiasts to meet the needs of setting up a complete but stylish water
cooling system. A RGB LED lighting controller is included. With a patented
circular 256 multicolored LED light and produced by durable copper, Thermaltake
takes every detail seriously.
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.

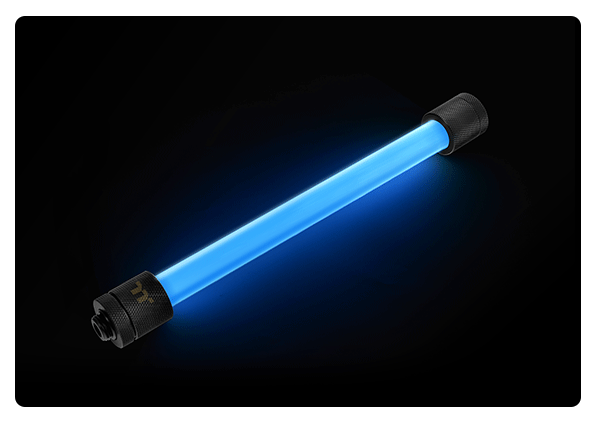

Patented RGB 256 Colors LED Light
The fitting comes with a special engineered LED light that can maintain color
and brightness uniformity. The lighting effect is visible from all directions
and adds style to the chassis.
Taiwan Patent: M523966
China
Patent: 201620920987.3
RGB LED Lighting Controller – Adjust LED Brightness
Users can adjust the illumination of the lighting into three different phases
by pressing the “BRIGHTNESS” button.
RGB LED Lighting Controller – Switch Over Between 7 LED
Colors
The “MODE” button allows users to switch to blink function and set a solid
color for the lighting. Users can choose from blue, green, red, white, orange,
yellow and purple to brighten up their builds.
RGB LED Lighting Controller – Cycle Through a 256 Colors
By simply clicking the “CUSTOMIZE” button, users can start to enjoy their
liquid-cooling systems with a multicolored lighting show.

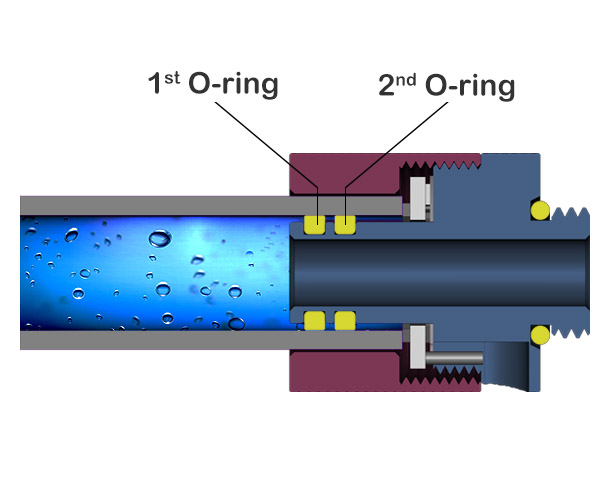

High-Flow and Leak-Free Design
Made in Taiwan, the fitting allows proper connection to G1/4 ports, securing
properly to cooling components while providing an even seal around the tubing.
The fitting is included two preinstalled O-ring.
For tubes:
-
Outer diameter: 5/8 (16 mm)
Remarkable Expansion
Thermaltake offers a full line of Pacific Series components for enthusiasts
to build up aesthetically-superior water cooling systems by incorporating
externally-modular upgrades for their chassis.
Thermaltake Riing RGB Controller Cable (Optional) – Can connect multiple RGB
LED lighting controllers at the same time, and offer users a more flexible way
to control their RGB fittings.
Cautions
Thermaltake recommends the following steps to be taken before using the
Pacific series radiators and water blocks:
- To ensure a clean loop, flush and rinse your radiators and water blocks
with distilled water prior to use.
- Do not use tap water or distilled water as your coolant, it may harm your
loop and reduce performance.
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while protecting the
entire liquid loop from corrosion.
- Before storing your water cooling components, please clean, rinse and dry.
This will ensure a longer lifespan for your components.
Thermaltake recommends the following steps to be taken after completing your
water loop setup:
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system copper, brass, nickel, aluminum, and steel from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
- Before starting, flush out your system correctly to prevent any coolant or
unwanted particles sticking to your tubes, radiators and other cooling
components.
- Coolant might fade over time.
Specifications
P/N |
CL-W133-CU00BL-A |
Compatibility |
16mm OD /12mm ID hard tube |
Dimension |
25 x 31.4 H mm |
Material |
Copper |
Threads |
G |
Weight |
720g |
Note |
6 Pack (6 Fittings with 1 LED Controller
Box) |
