All stock codes associated to this product
CA1H600M6WN00, CA-1H6-00M6WN-00
Overview

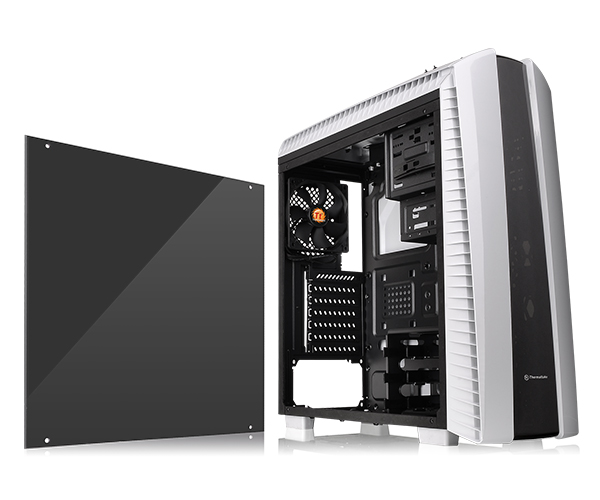

The new Versa N27 Snow window mid-tower chassis features a sleek mirror-pane
design and supports up to a standard ATX motherboard and CPU cooler
installation. The Versa N27 Snow is ideal for space-conscious gamers who design
with high-end hardware and expansion in mind. Additionally, the Versa N27 Snow
combines a manageable frame size with extensive options to personalize a
computer or gaming system.
Gaming-Oriented Concept
Designed for gamer, the glossy black front/top panels deliver stylish images.
The heightened foot-stands at the bottom help enhance airflow, and a full
transparent side window offers the ultimate view of the inner system.
Tool-free Design
The innovative 3.5” / 2.5” tool-free drive bay design minimizes the hassles
of installation/removal. The trio drive bay concept of “4 + 2” offers a good
ratio for accessories and storage devices.

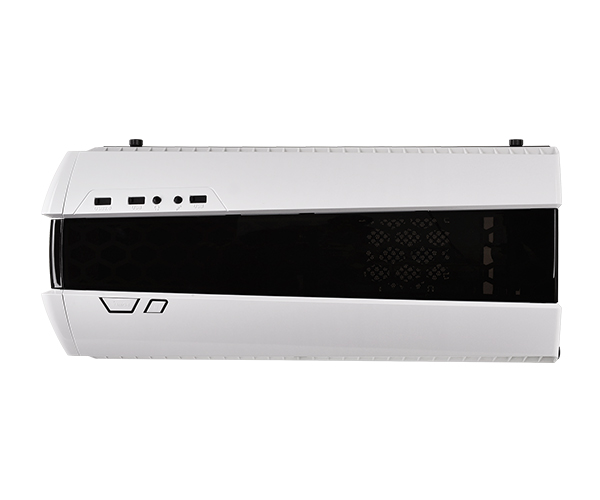

Hidden I/O Ports
The top-front panel features one USB 3.0 data transfer port along with two
standard USB 2.0 ports as well as HD microphone and headset jacks to grant
direct access when needed.
Optimized Ventilation
A preinstalled 120mm rear exhaust fan and two optional 120mm intake fans with
an integrated dust filter optimize system ventilation. Pre-mounted holes support
motherboards up to standard ATX. CPU cooler installations with up to 160mm,
radiator at the top up to 240mm, and 360mm long graphic cards are supported.

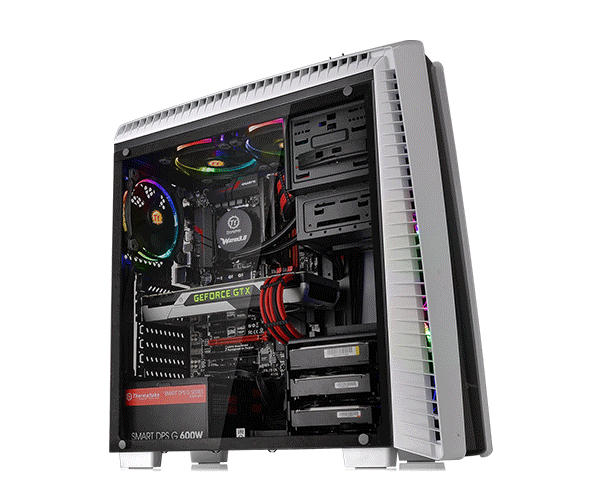

AIO LCS Cooling Support
The new Versa N27 Snow is compatible with the all-in-one liquid cooling
system without the need for extra bracket, supporting dual 120mm fans on the
front/ top to enhance the cooling performance.
Specifications
|
P/N |
CA-1H6-00M6WN-00 |
|
Case
Type |
Mid
Tower |
|
Dimension (H x W x
D) |
502 x 201 x 473
mm |
|
(19.8 x 7.9 x 18.6
inch) |
|
Net
Weight |
4.7 kg / 10.4
lb |
|
Side
Panel |
Full
Window |
|
Color |
Exterior & Interior
: White & Black |
|
Material |
SPCC |
|
Cooling
System |
Rear (exhaust)
: |
|
120 x 120 x 25 mm fan
(1000rpm, 16dBA) |
|
Drive
Bays |
-Accessible |
|
-Hidden |
|
3 x 3.5 or 2.5(with HDD
tray) , |
|
1 x 3.5" , 1 x
2.5"(without HDD tray) |
|
1 x 2.5 (with the M/B
tray) |
|
|
Expansion
Slots |
7 |
|
Motherboards |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
|
I/O
Port |
USB 3.0 x 1,USB 2.0 x
2, HD Audio x 1 |
|
PSU |
Standard PS2 PSU
(optional) |
|
Fan
Support |
Front: 2 x
120mm |
|
Top: 2 x
120mm |
|
Rear: 1 x
120mm |
|
Radiator
Support |
Top: 1 x
240mm |
|
Rear: 1 x
120mm |
|
Clearance |
CPU cooler height
limitation: |
|
160mm |
|
VGA length
limitation: |
|
250mm (with HDD
cage) |
|
360mm (without HDD
cage) |
