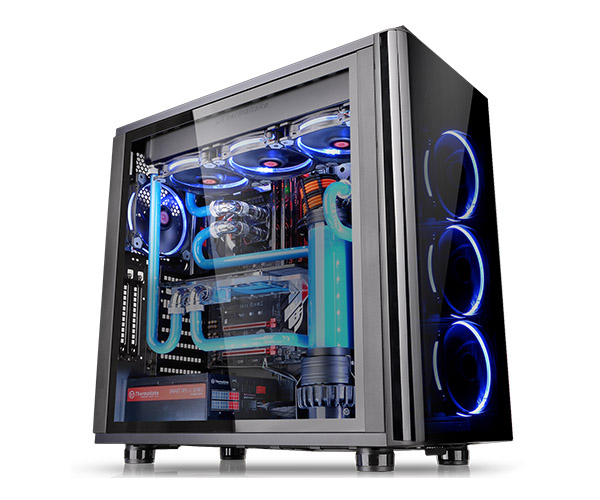

Overview
The View 31 TG Tempered Glass Mid-Tower Chassis features dual durable 4mm
thick tempered glass window, riser GPU support bracket with optional PCI-e riser
cable, two preinstalled 140mm Riing Blue fans with removable filters, and
outstanding system ventilation. The View 31 TG supports the latest PC hardware
and all high-end GPU solutions, guarantees on unparalleled expandability for
high-end configurations and liquid cooling system to satisfy the market where
users have opted for stylish PC chassis with advanced features and aesthetic
appeal.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.

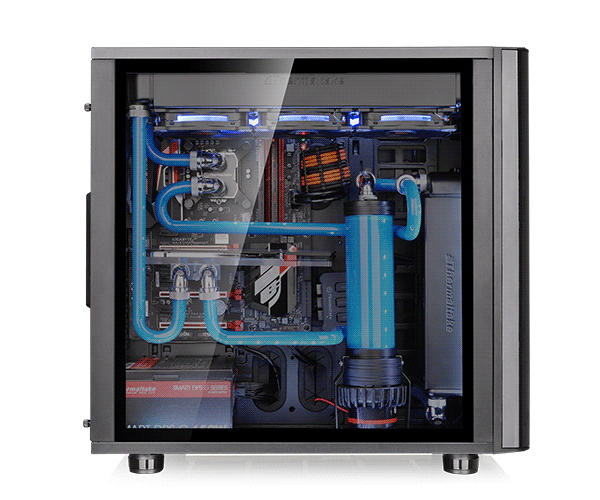

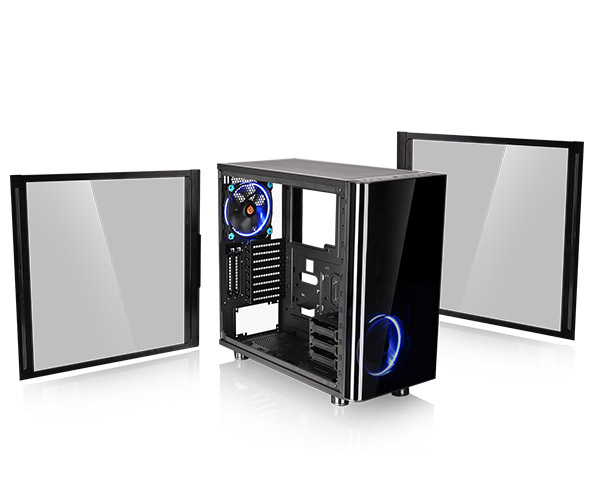

Left and Right 4 mm Thick Tempered Glass Window Design
View 31 TG with left and right 4 mm thick tempered glass window guarantees
the durability of the window; moreover, the enlarged window design permits users
to fully display and admire all components of the liquid-cooling system. Show
off your dedicated set in the subtlest manner!
Fully Modular Concept
The View 31 TG comes with fully modular drive cages that provide the ease of
installation/removal and maximize the interior space for custom cooling loop.
Especially, the tool-less drive bay design allows users to freely interchange
the 3.5 and 2.5 hard-drives to suit their particular needs.

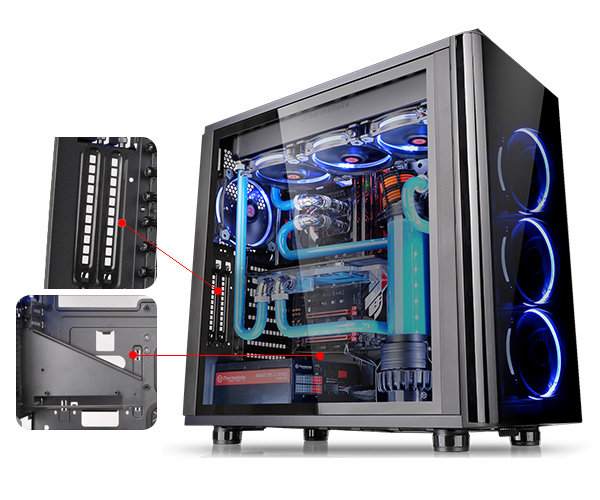

Riser GPU Support Bracket
Specially designed with dual GPU placement, the View 31 TG has the support
for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser
cable is optional. Plus, the included riser GPU support bracket not only can
prevent the graphic card from sagging, but also helps to reduce the weight on
the motherboard.
Thermaltake
PCI-e X16 Riser Cable (Optional) Support a wide range of GPU solutions.
*Note: Suggested VGA thickness up to 50mm(2.5 -slot reference card standard)
with 7mm space for ventilation.

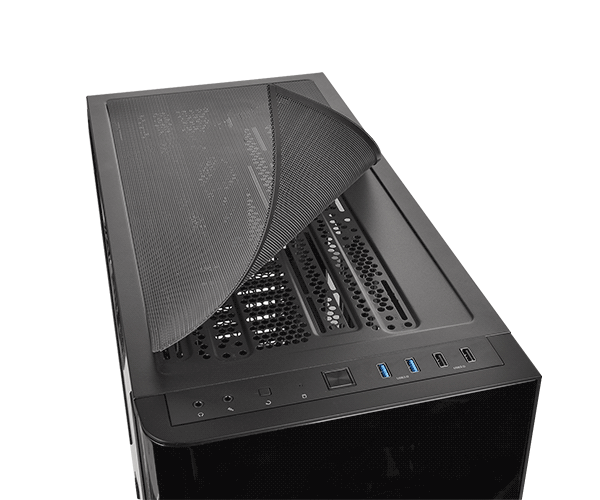

Dust Reduction
Magnetic fan filter on the top simply attaches the filter for dust
filtration. Super fine fan filters with excellent protection and reduction
against dirt and dust at the bottom.
Made for High-End PCs with Outstanding Expandability
The View 31 TG features its cable management with maximum 50mm in width, and
supports up to a tower CPU cooler with maximum height 180mm, and a dual
expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the View
31 TG has the ability to accommodate multiple 3.5/2.5 storage devices at the
same time. Most importantly, the hidden drive bay design guarantees
expandability for more liquid cooling components.
Advanced Ventilation
The View 31 TG Series delivers advanced cooling performance for DIY/AIO
liquid cooling and air cooling systems. With wide top-to-bottom side ventilation
grills, the View 31 TG maximizes the air intake with two built-in 140mm Riing
Blue LED fans. It includes options for up to (3) 120mm or 140mm front fans,
combined with (2) bottom mount 120mm fan locations for maximum fan space
selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3)
sectional top mounts to manage proper air flow in and out.

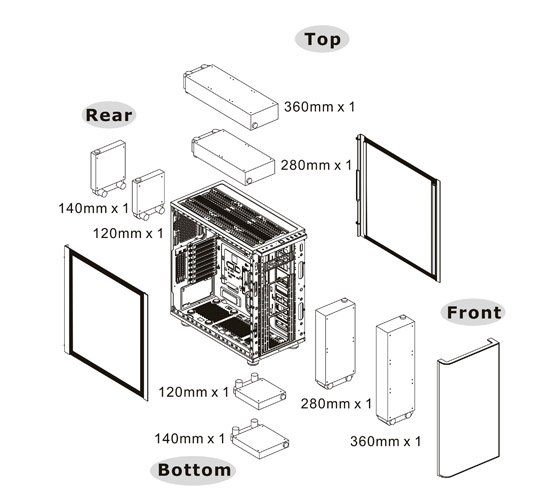

View 31 TG Radiator Supporting List
Radiator Compatibility
List |
|
120mm |
140mm |
240mm |
280mm |
360mm |
Front |
* |
* |
* |
* |
* |
Top |
* |
* |
* |
* |
* |
Rear |
* |
* |
|
|
|
Bottom |
* |
* |
|
|
| |
All-in-One Compatibility List
(Water 3.0 Series) |
|
Performer |
Pro |
Extreme |
Ultimate |
Front |
* |
* |
|
|
Top |
* |
* |
* |
* | |

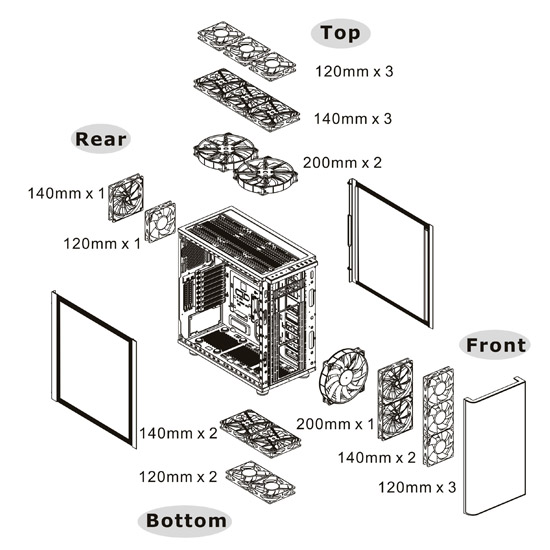

View 31 TG Fan Supporting List
Fan Compatibility List |
|
120mm |
140mm |
200mm |
Front |
3 |
2 |
1 |
Top |
3 |
3 |
2 |
Rear |
1 |
1 |
|
Bottom |
2 |
2 |
| |
Thermaltake Compatible
Fan |
|
120mm |
140mm |
200mm |
Pure Fan Series |
* |
* |
* |
Luna Fan Series |
* |
* |
* |
Riing Fan Series |
* |
* |
| |
Specifications
Model |
View 31
TG |
P/N |
CA-1H8-00M1WN-00 |
Case
Type |
Mid
Tower |
Dimension (H x W x
D) |
497 x 250 x 511
mm |
(19.5 x 9.8 x 20.1
inch) |
Net
Weight |
9.9 kg / 21.8
lb |
Side
Panel |
4mm Tempered Glass x 2
(Left & Right) |
Color |
Exterior & Interior
: Black |
Material |
SPCC |
Cooling
System |
Front (intake)
: |
140 x 140 x 25 mm Riing
LED Blue fan (1400rpm, 28dBA) x 1 |
(1000rpm, 22dBA with
LNC) |
Rear (exhaust)
: |
140 x 140 x 25 mm Riing
LED Blue fan (1400rpm, 28dBA) x 1 |
(1000rpm, 22dBA with
LNC) |
Drive
Bays |
-Accessible |
-Hidden |
3 x 3.5 or 2.5 (HDD
Cage) |
Expansion
Slots |
8 +
2 |
Motherboards |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
I/O
Port |
USB 3.0 x 2, USB 2.0 x
2, HD Audio x 1 |
PSU |
Standard PS2 PSU
(optional) |
LCS
Upgradable |
Supports 1/23/81/4
water tube |
Fan
Support |
Front: |
3 x 120mm , 2 x 140mm ,
1 x 200mm |
Top: |
3 x 120mm , 3 x 140mm ,
2 x 200mm |
Rear: |
1 x 120mm , 1 x
140mm |
Bottom: |
2 x 120mm , 2 x
140mm |
Radiator
Support |
Front: |
1 x 360mm , 1 x
280mm |
Top: |
1 x 360mm , 1 x
280mm |
Rear: |
1 x 120mm , 1 x
140mm |
Bottom: |
1 x 120mm , 1 x
140mm |
Clearance |
CPU cooler height
limitation: |
180mm |
VGA length
limitation: |
278mm(with HDD
rack) |
420mm(without HDD
rack) |
PSU length
limitation: |
180mm (With One Bottom
Fan) |
220mm (Without Bottom
Fan) |
