All stock codes associated to this product
LC24FG70FQEXXY, 8806088556178
Overview
19° Screen curvature for an ultimate immersive
experience
Samsung's curved screen enables more comfortable viewing. A recent Harvard
study found that fewer subjects reported eye-strain, difficulty focusing and
blurred vision symptoms when viewing a curved monitor than with a flat
monitor.^
^ Comparison of flat and curved monitors: Eyestrain caused by intensive
visual search task, 2016. Based on eye-strain questionnaire involving the use of
a 34 curved Samsung monitor and equivalent 34 Samsung flat monitor. Study
sponsored by Samsung

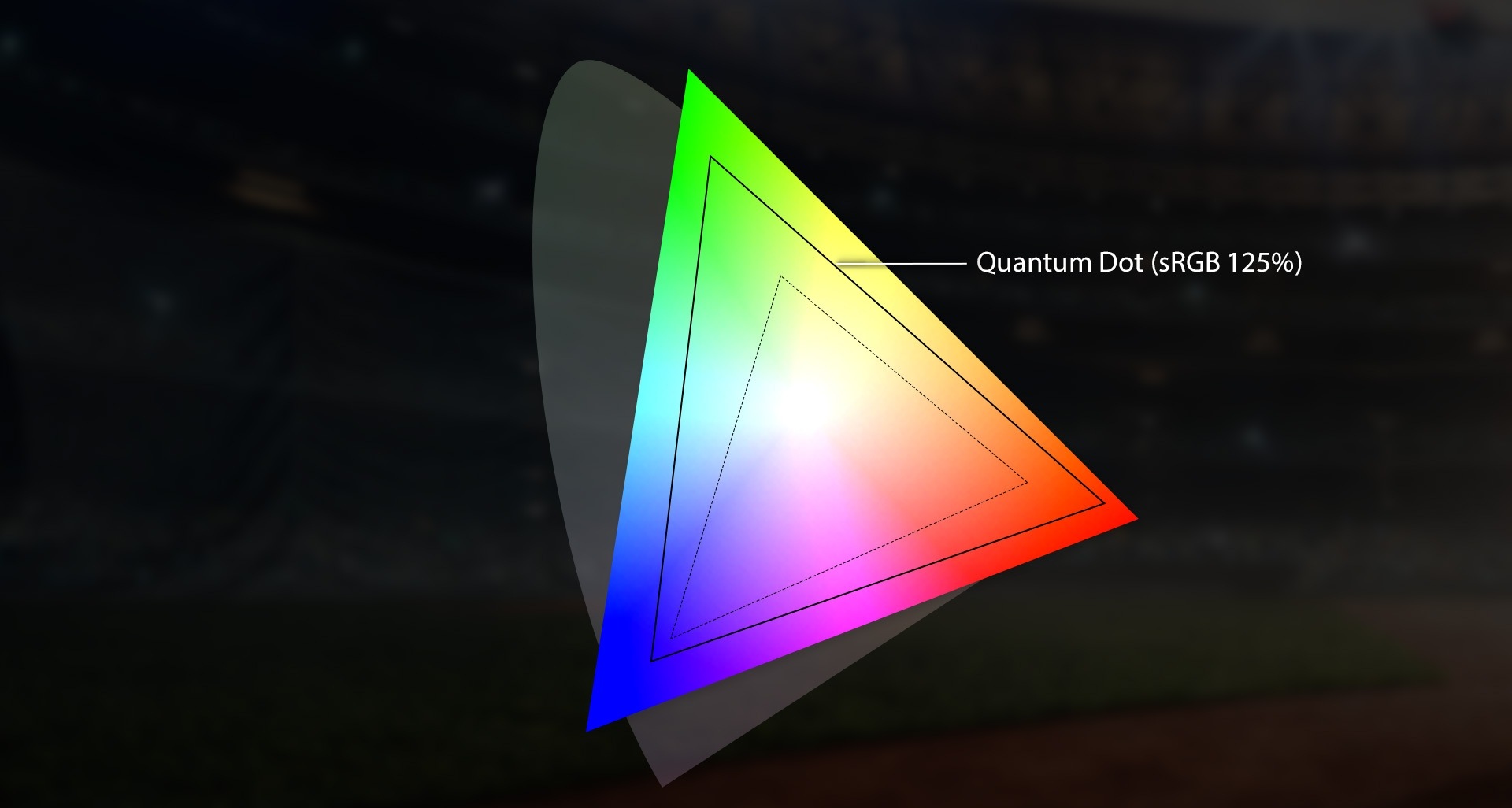

Quantum dot technology with 125% sRGB for lifelike
colours
Quantum dot technology supports approximately sRGB 125% for a wider range of
more accurate colours especially dark reds and greens that stay crisp and clear
even in bright light. So your gaming content comes alive on the screen.
144Hz Refresh rate
Experience smooth gameplay with a screen refresh rate of up to 144Hz. You can
also select 60Hz, 100Hz or 120Hz to optimize the refresh rate to your game and
hardware specs.
1MS MPRT Impulsive scanning technology for smooth game
play
Samsung has succeeded in creating a curved gaming monitor with a super-fast
response time of 1ms (MPRT) that lets you enjoy gaming performance without
motion blur across the screen.
Smooth and vivid gameplay with AMD FreeSync~
AMD FreeSync technology allows users to enjoy smooth images, even during the
fastest moving scenes. AMD FreeSync syncs the screen refresh rate with the frame
rate of your content to minimize input latency and dramatically reduce image
tearing and stutter during gaming.
~Utilises graphics card to stop jittering
Ergonomic dual-hinged arm for precise screen positioning
The strong dual-hinge arm designed for the most demanding gaming gives you
precise control over how you position the display panel. It also shows off the
gamer-friendly design and provides a convenient place to hang your headphones
when not in use.
Ultra High Contrast VA Panel for extreme wide viewing
angles
Samsungs advanced VA panel technology minimizes light leakage across the
entire screen and corners and delivers a 3000:1 contrast ratio for deep blacks
and brilliant whites in even the darkest and brightest scenes.
Specifications
|
Display |
|
|
Screen Size (Inch) |
23.5 |
|
Screen Size (cm) |
59.8 |
|
Screen Size (Class) |
24 |
|
Flat / Curved |
Curved |
|
Active Display Size (HxV) (mm) |
521.3952(H) x 293.2848(V) |
|
Screen Curvature |
1800R |
|
Aspect Ratio |
16:09 |
|
Panel Type |
VA |
|
Brightness (Typical) |
350cd/m2 |
|
Brightness (Min) |
250cd/m2 |
|
Peak Luminance Ratio |
75% |
|
Contrast Ratio Static |
3,000:1 (Typ.) |
|
Resolution |
1920 x 1080 |
|
Response Time |
1 (MPRT) |
|
Viewing Angle (H/V) |
178°(H)/178°(V) |
|
Color Support |
16.7M |
|
Refresh Rate |
144Hz |
|
|
|
|
General Feature |
|
|
Eco Saving Plus |
Yes |
|
Eye Saver Mode |
Yes |
|
Flicker Free |
Yes |
|
Quantum Dot Color |
Yes |
|
Easy Setting Box |
Yes |
|
Windows Certification |
Windows 10 |
|
FreeSync |
Yes |
|
Game Color Mode |
Yes |
|
Screen Size Optimizer |
Yes |
|
Black Equalizer |
Yes |
|
Low Input Lag Mode |
Yes |
|
Refresh Rate Optimizor |
Yes |
|
Custom Key |
Yes |
|
Super Arena Gaming UX |
Yes |
|
Sound Interactive LED Lighting |
Yes |
|
|
|
|
Interface |
|
|
Wireless Display |
No |
|
D-Sub |
No |
|
DVI |
No |
|
Dual Link DVI |
No |
|
Display Port |
1 EA |
|
Mini-Display Port |
No |
|
HDMI |
2 EA |
|
Audio In |
No |
|
Headphone |
Yes |
|
USB Hub |
No |
|
|
|
|
Operation Conditions |
|
|
Temperature |
10~40 ℃ |
|
|
|
|
Calibration |
|
|
Factory Tunning |
Yes |
|
Color Mode |
Custom/High-Brightness/FPS/RTS/RPG/AOS/sRGB/Cinema |
|
Factory Calibration Report |
Yes |
|
|
|
|
Design |
|
|
Color |
Dark Blue Black (Matt) |
|
Stand Type |
Dual Hinge |
|
HAS(Height Adjustable Stand) |
140mm (0, +10mm) |
|
Tilt |
-2(±2°) ~ 17°(±2°) |
|
Swivel |
Left : -15°(±2°) ~ Right : +15°(±2°) |
|
Pivot |
Yes |
|
Wall Mount |
75 x 75 mm |
|
|
|
|
Eco |
|
|
Energy Efficiency Class |
3 |
|
Mercury Content |
0.0 mg |
|
Lead Presence |
Yes |
|
|
|
|
Circuit Amps |
|
|
Power Supply |
100~240V 50/60Hz |
|
Power Consumption (Max) |
59 W |
|
Power Consumption (Typ) |
34 W |
|
Power Consumption (DPMS) |
0.5 W |
|
Power Consumption (Off Mode) |
0.3 W |
|
Power Consumption (Yearly) |
126 kWh/year |
|
Type |
External Adaptor |
|
|
|
|
Dimension |
|
|
Set Dimension with Stand (WxHxD) |
545 x 529.9 x 386.4 mm |
|
Set Dimension without Stand (WxHxD) |
545.0 x 325.1 x 70.4 mm |
|
Package Dimension (HxWxD) |
689 x 315 x 402 mm |
|
|
|
|
Weight |
|
|
Set Weight with Stand |
5.2 kg |
|
Set Weight without Stand |
3.1 kg |
|
Package Weight |
8.0 kg |
|
|
|
|
Accessories |
|
|
HDMI Cable |
Yes |
|
DP Cable |
Yes |
|
Install CD |
Yes |
|
Quick Setup Guide |
Yes |
|
|
|
|
Disclaimer |
|
|
Disclaimer |
1ms MPRT spec is based on internal tests. Response time may vary
depending on test conditions. |
