Overview
High Speed Storage Server with Extreme Performance and
Expandability

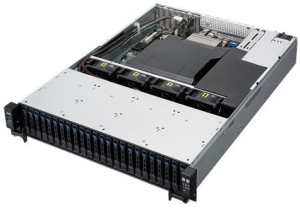

RS720-E8-RS24-ECP is a 2U rack server that’s perfectly built for
high-capacity storage with extreme computing performance. With M.2 slot and two
rear hot-swappable 2.5-inch SSD bays for convenient operating system (OS)
installation and engineered with premium components for premium efficiency,
RS720-E8-RS24-ECP is ideal for datacenters and other enterprise
applications.
High Speed 2U storage capacity and additional OS kernal
disk
RS720-E8-RS24-ECP is equipped with 24 SAS/SATA 2.5-inch drive bays. The
hot-swappable design provides non-stop high availability, making short work of
maintenance. RS720-E8-RS24-ECP also offers great freedom when it comes to the
choice of operating system drive type and placement, with M.2 slot and two rear
hot-swappable 2.5-inch SSD bays available. And because 2.5-inch drive bays offer
faster transferring rate, RS720-E8-RS24-ECP is ideal for data analytics, cloud
computing, data management, and business-critical workloads.
5 Expansions
RS720-E8-RS24-ECP has high expandability with five expansion slots meeting
the demands of future expansion. There are three PCI-E x16 slot (Gen3 x16 link),
one PCI-E x8 slot (Gen3 x8 link), and one PCI-E x8 slot (Gen3 x4 link). This
flexible expansion offers diverse applications in storage and networking to meet
the demands of future expansion and high scalability in a 2U case. ASUS PIKE II
and ASUS 10G LAN card are also available for diverse applications.
ASUS PIKE II & 12G SAS Integration
ASUS PIKE II offers the latest 12Gb/s SAS together with PCI-E 3.0 solution.
While ASUS latest 12Gb/s SAS doubles the data rate running at twice the speed of
the previous generation, PCI-E 3.0 offers high reliability and faster speed
connection. ASUS PIKE II meets user needs with support for 6Gb/s SATA and 12Gb/s
SAS storage and integrated RAID data protection. Just placing the PIKE II card
can immediately enlarge the capacity, improve the performance, and strengthen
the signaling, making it the great upgrade option. Additionally, multiple HBAs
allow multi-paths which improve over performance.
Advanced
cooling
There are two groups of fans and each group has two fans. One group of fans
is dedicatedly for CPUs and the fans change the speed accordingly to meet
different demands. The other group is dedicatedly for the rest of serverboard.
In this way, RS720-E8-RS24-ECP offers excellent thermal solution, heat
dissipation and energy savings. It’s even possible to adjust the fan speed
manually, so you have flexible choice to meet different working environment.
Premium components for premium efficiency
RS720-E8-RS24-ECP benefits from premium components hand-chosen and carefully
arranged by ASUS engineers to provide premium efficiency. With ASUS Beat Thermal
Chokes, Dr. MOS and 1+1 Redundant 800W 80 PLUS CRPS Platinum power supplies, it
delivers great durability and up to 94% power efficiency. The 1+1 power supply
design allows the server to keep working even if one power supply requires
maintenance, enabling uninterrupted operation.
Complete Remote Server Management
With the Intelligent Platform Management Interface (IPMI) 2.0-compliant
ASMB8-iKVM module in RS720-E8-RS24-ECP, you’ll be able to monitor, control and
manage the server remotely. ASUS Server Web-based Management (ASWM) Enterprise
has a simple and intuitive web-based graphical user interface. Save time and
effort by flashing the BIOS remotely, use the new screen-recording function for
quick and easy trouble-shooting and exploit the many efficiency benefits of
one-to-many centralized management afforded by ASWM Enterprise.
Specifications
Processor / System Bus |
2 x Socket R3 (LGA 2011-3) |
|
Intel Xeon processor E5-2600 v4 product family (145W)
* |
|
Intel Xeon processor E5-2600 v3 product
family(145W)* |
|
QPI 6.4 / 8.0 / 9.6 GT/s |
|
*Refer to www.asus.com for CPU Support list |
Generation |
E8 |
Core Logic |
Intel C612 PCH |
Memory |
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) per
Node |
|
Capacity : Maximum up to 1024GB
LRDIMM |
|
Memory Type : |
|
DDR4 2400 /2133 /1866/1600 RDIMM |
|
DDR4 2400 /2133 /1866/1600 LRDIMM |
|
Memory Size : |
|
32GB, 16GB, 8GB, 4GB RDIMM |
|
64GB, 32GB LRDIMM |
|
* Please refer to ASUS server AVL for the latest
update |
|
* Actual memory frequency differs from Intel CPU types and memory
module. Please check Intel official site for more detail about the memory
types supported by each CPU. |
Expansion Slots |
5 |
|
|
|
Low-profile |
|
2 x PCI-E x16 (Gen3 x16 link) |
|
1 x PCI-E x16 (Gen3 x16 link) |
|
1 x PCI-E x8 (Gen3 x8 link) |
|
1 x PCI-E x8 (Gen3 x4 link) |
Storage |
SATA Controller : |
|
Intel C612 |
|
10 x SATA3 6Gb/s ports |
|
or |
|
9 x SATA3 6Gb/s ports + 1 x M.2 connector |
|
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows
Only) |
|
(Support Software RAID 0, 1, 5, 10 ) |
|
SAS Controller : |
|
ASUS PIKE II 3008 8-port SAS HBA
card(Optional) |
|
ASUS PIKE II 3108 8-port SAS HW RAID
card(Optional) |
|
12G SAS Support |
HDD Bays |
24 x Hot-swap 2.5" Storage Bays (BP w/Expander) |
|
2 x Hot-Swap 2.5 SSD Bays (Rear) |
|
1 x M.2 (NGFF 2242) |
Networking |
1 x Dual Port Intel Ethernet Controller
i350-AM2 |
|
1 x Dual Port Intel I350-BT2 Gigabit LAN controller + 1 x Mgmt
LAN |
Graphic |
Aspeed AST2400 with 32MB VRAM |
Front I/O Ports |
2 x USB 2.0 ports |
Rear I/O Ports |
4 x RJ-45 ports |
|
1 x RJ-45 Mgmt LAN port |
|
2 x USB 3.0 ports |
|
2 x USB 2.0 ports |
|
1 x VGA port |
|
1 x PS/2 KB/MS port |
|
1 x External Serial Port |
Switch/LED |
1 x Power switch/LED |
|
1 x Location switch/LED |
|
1 x Reset switch |
|
1 x HDD Access LED |
|
1 x Message LED |
|
LAN 1-4 LED |
OS Support |
Windows Server 2012 R2 |
|
Windows Server 2012 |
|
Windows Server 2008 R2 |
|
RedHat Enterprise Linux |
|
SuSE Linux Enterprise Server |
|
CentOS |
|
Ubuntu |
|
VMware |
|
Citrix XenServer |
Management Solution |
ASWM Enterprise |
|
On-Board ASMB8-iKVM for KVM-over-IP |
Regulatory Compliance |
BSMI, CE, C-Tick, FCC(Class A) |
Dimensions |
615mm x 444mm x 88mm |
|
24.21" x 17.48" x 3.46" |
Form Factor |
2U |
Weight |
Net Weight: 15.66 Kg |
|
Gross Weight: 23.12 Kg |
Power Supply |
1+1 Redundant 800W 80 PLUS Platinum Power Supply |
|
Rating: 100-127Vac/200-240Vac,10A/5A ,50/60Hz, Class
I |
Environment |
Operation temperature: 10 ~ 35 |
|
Non operation temperature: -40 ~ 70 |
|
Non operation humidity: 20% ~ 90% ( Non
condensing) |
