All stock codes associated to this product
BIPAC8700VAXL1600, BIPAC8700VAXL-1600, 4719170005246

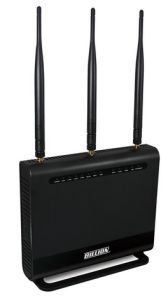

Triple-WAN Wireless-1600Mbps 3G/4G LTE and VDSL2/ADSL2+ VoIP Router
The BiPAC 8700VAXL-1600 is an economic wireless 1600Mbps VDSL2/ADSL2+ VoIP router that allows users to have the wireless connection, VoIP calls and high speed Internet connection. With an integrated 802.11ac (1300Mbps) and 11n (300Mbps) Access Point, the BiPAC 8700VAXL-1600 can automatically adopt an optimal connection to deliver smooth, constant signal reception even if obstacles are present. Robust firewall security is featured to protect Internet access against hacker attacks. The Quality of Service and VLAN enables intelligent steaming for HD video or multiple applications such as music downloads, online gaming, video streaming and file sharing simultaneously. As well as being IPv6-capable, the BiPAC 8700VAXL-1600 could expand the path to IPv6 network world.
Key Features
- Triple-WAN ports for 3G/4G LTE, VDSL2/ADSL2+, ADSL2+, Gigabit Ethernet WAN (EWAN) for broadband connectivity
- High-speed Internet Access via VDSL2 and fallback to ADSL2+
- 4-port Giga Ethernet switch integrated
- 5th RJ-45 Giga Ethernet port can be configured as a WAN interface for broadband connectivity
- Wireless Access Point with Wi-Fi
Protected Setup (WPS), Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and
Wired Equivalent Privacy (WEP) supported
- Simultaneous dual-band Wireless 1300Mbps (5GHz) and 300Mbps (2.4GHz)
- Quality of Service control for traffic prioritization management
- Supports IPv4/IPv6 dual stack
- SOHO firewall security with DoS prevention and packet filtering
- Universal Plug and Play (UPnP)
- Dynamic Domain Name System (DDNS)
- Available Syslog
- Monitoring of individual LAN ports
- SIP gateway – least cost routing for VoIP calls.
- Supports telephony features: call waiting, caller ID, three-way conference, and etc.
- Supports IPTV application*1
Benefits
Optimal Wireless Speeds and Coverage
Utilizing the benefits of dual band Wireless (802.11ac and 802.11n) technology, BiPAC 8700VAXL-1600
performs faster file transfers and farther coverage enabling greater
wireless signals across your home. If the network requires wider
coverage, the built-in Wireless Distribution System (WDS) repeater
function allows users to expand the wireless network without the need
for any external wires or cables. Upgrading your home network to
Wireless-N provides an excellent solution for experiencing better
wireless performance while sharing a broadband Internet connection with
multiple computers over a secure wireless network.
Built-in QoS Engine Enhances Internet Experience
Quality
of Service (QoS) gives full control over outgoing data traffic. The
priority can be assigned by the router to ensure that important
transmissions like gaming packets, VoIP calls or IPTV/streaming contents
can pass through the router at the lightning speed, even when there is
heavy Internet traffic. The VLAN support is also capable of establishing
reliable high-speed transmissions for wide bandwidth applications such
as IPTV, VoD, or online gaming without consuming bandwidth.
True Cost Saving with the “Least Cost Routing” Feature
Making
a VoIP call is extremely simple. You just need to connect your existing
telephones to one or both phone ports. The BiPAC 8700VAXL-1600
complies with the most popularly adopted VoIP industrial standard, SIP
protocol, ensuring interoperability with other SIP devices and major
VoIP gateways. The Gateway feature called “Least Cost Routing” offers
the choice of the most economical rates offered by different service
providers.
Pathway to the IPv6 future
The BiPAC 8700VAXL-1600
fully support IPv4 and IPv6 dual stack. Dual Stack means the router is capable of running IPv4 and IPv6. With Billion IPv6 enabled devices, three major transition mechanisms such as Dual-Stack, Dual-Stack Lite, and 6RD (IPv6 rapid deployment) are supported to be adapted easily into service provider’s IPv4/IPv6 network.| Physical Specifications
|
Dimensions: 8.86" x 7.20" x 2.87" (225 mm x 183 mm x 73 mm) |
|---|
| Power Requirements
|
Input: 12V DC, 2.0A |
| Operating Environment
|
Operating temperature: 0 - 40? |
| Humidity
|
20 - 95% non-condensing |
Networking
