Overview

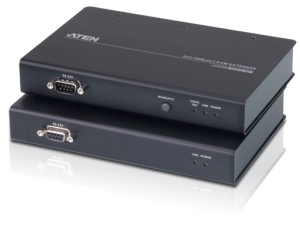

The ATEN CE620 USB DVI HDBaseT 2.0 KVM Extender integrates the latest HDBaseT
2.0 technologies to provide the most reliable transmission of video, audio, USB
and RS-232 signals available on the market. The CE620 delivers high-quality DVI
video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters
from the source computer using a single Cat5e/6 cable. With a simple cable
installation supporting various signals, the CE620 is ideal for applications
where convenient remote access is required in places such as transportation
control centers, medical facilities, industrial warehouses and extended
workstations.
Features
- HDBaseTâ„¢ 2.0 connectivity technology.
- Extends video, audio, USB and RS-232 signals via a single Ethernet cable.
- EDID Buffer for smooth power-up and the highest quality display.
- Enhanced bit error detection and correction to resist signal interference
during high-quality video transmissions.
- Long distance superior video quality.
- HDBaseTâ„¢ Standard mode up to 1920 x 1200 @ 100 m.
- HDBaseTâ„¢ Long Reach mode up to 1920 x 1080 @ 150 m.
- Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach
modes in a snap.
- Integrated USB 2.0 ports — ensuring fast transmission speeds for
peripherals.
- Supports 2-channel PCM digital audio — ensuring highquality audio
transmissions.
- Supports PC Wakeup function via pushbutton or hotkey.
- Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV).
- Note: The CE620 does not support HDCP.

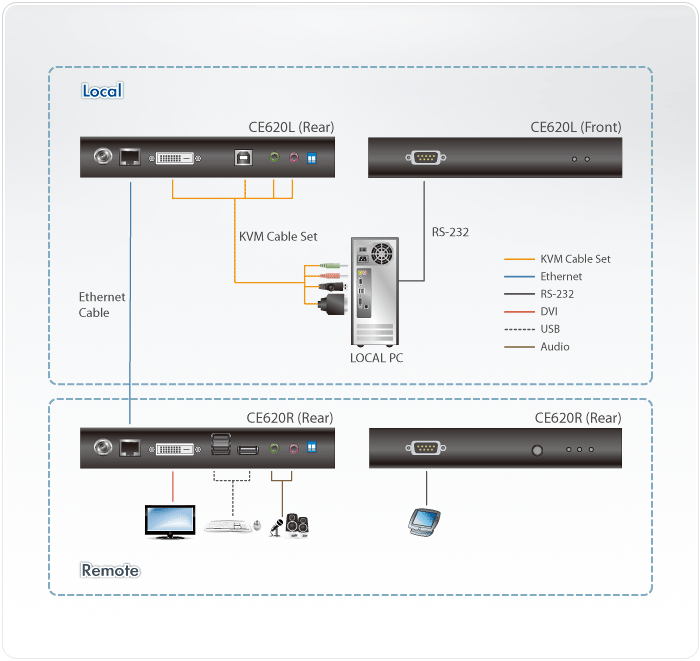

Diagram
Specifications
|
Function |
CE620L |
CE620R |
|
|
|
|
Connectors |
|
|
|
Console Ports |
N/A |
1 x DVI-D Female (White) |
|
|
3 x USB Type A Female |
|
|
1 x Mini Stereo Jack Female (Green) |
|
|
1 x Mini Stereo Jack Female (Pink) |
|
KVM Ports |
1 x DVI-D Female (White) |
N/A |
|
1 x USB Type B Female (White) |
|
|
1 x Mini Stereo Jack Female (Green) |
|
|
1 x Mini Stereo Jack Female (Pink) |
|
|
RS-232 |
1 x DB-9 Female (Black) |
1 x DB-9 Male (Black) |
|
Power |
1 x DC Jack with locking |
1 x DC Jack with locking |
|
Unit To Unit |
1 x RJ-45 Female (Black) |
1 x RJ-45 Female (Black) |
|
|
|
|
LEDs |
|
|
|
Power |
1 (Green) |
1 (Green) |
|
Link |
1 (Orange) |
1 (Orange) |
|
Video Output |
N/A |
1 (Orange) |
|
|
|
|
Switches |
|
|
|
Long Reach Mode Switch |
1 x Slide Switch |
1 x Slide Switch |
|
Firmware Upgrade |
1 x Slide Switch |
1 x Slide Switch |
|
Pushbuttons |
|
|
|
Wakeup button |
N/A |
1 x Push button |
|
Video |
Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat
6/6a) |
Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat
6/6a) |
|
1080P@100m |
1080P@100m |
|
Power Consumption |
DC5V/ 3.0W |
DC5V, 5.6W |
|
|
|
|
Environmental |
|
|
|
Operating Temperature |
040C |
040C |
|
Storage Temperature |
-2060C |
-2060C |
|
Humidity |
080% RH, Non-condensing |
080% RH, Non-condensing |
|
|
|
|
Physical Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.63 kg ( 1.39 lb ) |
0.64 kg ( 1.41 lb ) |
|
Dimensions (L x W x H) |
18.20 x 12.28 x 2.87 cm |
18.20 x 12.28 x 2.87 cm |
|
(7.17 x 4.83 x 1.13 in.) |
(7.17 x 4.83 x 1.13 in.) |
|
|
|
|
Package Contents |
1x CE620L USB DVI HDBaseT 2.0 KVM Extender (Local
Unit) |
|
1x CE620R USB DVI HDBaseT 2.0 KVM Extender (Remote
Unit) |
|
1x Custom DVI KVM Cable Set |
|
|
2x Power Adapters |
|
|
2x Mounting Kits |
|
|
8x Foot Pads |
|
|
1x User Instructions |
|
