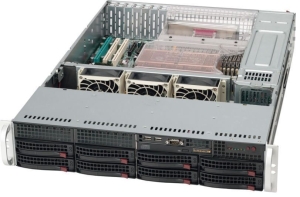

Supermicro SC825TQ-R700LPB SuperChassis - 700W PSU, 2U Rackmount
  • 3.5" Hot-Swap SAS/SATA Drive Bay(8), 3.5" Fixed Bay(2), 80mm Fan(3), 8-Port 2U TQ (W/AMI 9072) Backplane, 700W PSU, Rackmountable

IMG 1 of 1
No Longer Available
Part Number:
422006
(?) Brand:
Supermicro Web Site
Manuf No:
SC825TQ-R700LPB
SC825TQR700LPB
Shipping Weight:
50 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/8/2017
Details Files Finance Images & Video
All stock codes associated to this product
SC825TQR700LPB, SC825TQ-R700LPB, SVSM825TQR700, SVSM-825TQ-R700, 672042005024

Overview

Key Features

  1. 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
  2. 8 x 3.5" hot-swap SAS/SATA, 2 x 3.5" fixed drive bay
  3. 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD
  4. 1U 700W hot swap redundant power supply.
  5. 7 low-profile expansion slot(s)
  6. 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

Specifications

Form Factor
  • 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards

  • Processor Support
  • Dual and Single Intel and AMD processors

    • Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Gross Weight
    • 52 lbs (23.59 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black

    Expansion Slots
    • 7 low-profile expansion slot(s)

    Drive Bays
    • 8 x 3.5" hot-swap SAS/SATA
    • 2 x 3.5" fixed drive bay

    Backplane
    • 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD

    Peripheral Drives
    • 1 x slim DVD-ROM drive bay
    • 2 x USB 2.0 ports
    • 1 x COM port tray

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    • System Information LED

    Systems Cooling
    Fans
    • 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5C - 35C (41F - 95F)
    Non-Operating Temperature Range
    • -40C - 70C (-40F - 158F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    1U 700W hot swap redundant power supply.
    Power Efficiency
    • 89%
    Total Output Power and Input
    • 700W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 345 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 58A / Min: 0.5A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT825-8824
    • O/P: 12V/75A
    • +5V Max: 30A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL
