Overview
Lighten the Load
Power on. We want the MasterWatt Lite Series to be that simple. In the box
are all the essentials of a reliable engine so you don't have to think about it.
We added higher-end perks like Active PFC and PWM technology for more stability,
and made sure we met ErP 2013 and CE ratings for safety and low energy impact.
It's the survival kit for reliable, affordable power.
Advanced Circuit Design
Active PFC + PWM combined with dual forward topology and double EMI filter
enhances power output efficiency and increases the performance and stability of
your system
Silent and Durable Fan
Cooler Master's 120mm HDB temperature control fan can operate more smoothly
without friction, which makes it quiet and more durable.
Green Power
Compliant with ErP 2013 Lot6, which guarantees that your PSU will use less
than 0.5W on system standby and lower than 45% transferring efficiency on 5V
standby.
Safety Guardian
Full protection (OCP/OVP/SCP/OPP) with built-in Over Temperature Protection
(OTP). Minimizes the risk of damage from power outages.
Specifications
|
Product Name |
MasterWatt Lite 230V (ErP 2013) 500W - Green power supply with ErP 2013
certified |
|
Model number |
MPX-5001-ACABW |
|
Type |
ATX 12V V2.31 |
|
PFC |
Active PFC |
|
Input Voltage |
200-240Vac |
|
Input Current |
3.5-5A |
|
Input Frequency |
47-63Hz |
|
Dimensions (LxWxH) |
150mm x 140mm x 86mm |
|
Fan Type |
Silent 120mm HDB fan |
|
PowerGood Signal |
100-500 ms |
|
Hold Up Time |
>10ms at 100% full load@230Vac |
|
Efficiency |
85% Typically |
|
MTBF |
>100,000 hours |
|
Protections |
OCP / OVP / OPP / OTP / SCP / UVP |
|
Operating Temperature |
0~40C |
|

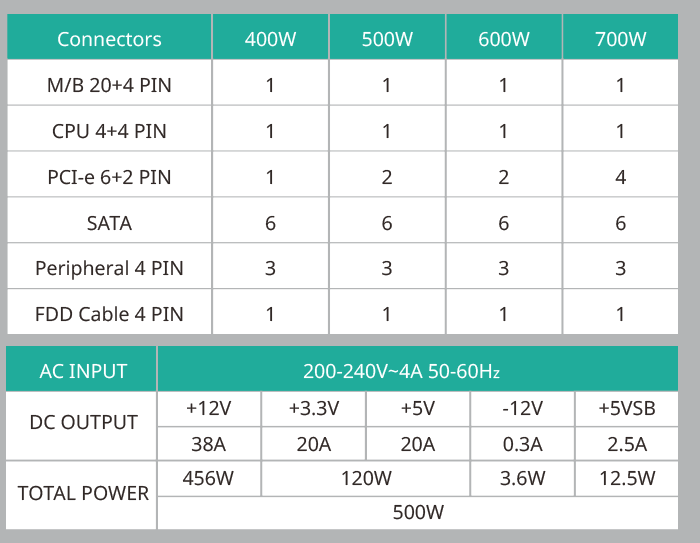

Connectors |
|
|
MB 20+4 Pin |
1 |
|
CPU 12V 4+4Pin |
1 |
|
SATA |
6 |
|
Peripheral 4 Pin |
3 |
|
FDD Cable 4 Pin |
1 |
|
PCI-e 6+2 Pin |
2 |
|
Regulatory |
TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCM,
CB |
