All stock codes associated to this product
FKBN104MPS/EB2
Overview
[30% quieter than traditional mechanical switch]
Main part of the keyboard, a switch, we use Cherry MX Silent Red which
reduces typing noise up to 30%.
This is a perfect keyboard those who love mechanical keyboards and want to
use it in an office or in a house without worrying the typing noise you make.
Cherry MX SILENT Switch :
Cherry MX Silent Red is a linear switch without a click. It uses same
specification as traditional Cherry MX Red switch.
You can type smoothly with the activation force of 45cN, very lightly.
[PC board got all renewed! It delivers you a better duration, quality
and typing feel!]
Double layers is adopted for a new board. Through a hole of each switch has
been firmly soldered.
With this, it can release any excess load or vibration that you make when you
type in to a board not only to a metal plate inside. It enables you to enjoy a
better typing feel!
[A true N-key rollover]
It is the functionality by which all the typed keys are recognized on the PC,
even when many keys are typed simultaneously.
All the keys typed simultaneously are recognized on the PS/2.
(Limited to 6 keys typed simultaneously for the USB due to the specifications
of USB.)
A completely dedicated electronic circuitry to this model !
On our models a diode is soldered on the printed circuit for every key switch
to prevent from counter currency.
[Compatibility with USB and PS/2]
A USB cable is connected to the keyboard. Plug&Play is available on each
Windows system.
A PS/2 interface is also available to use the PS/2 Conversion Adapter
included in the package.

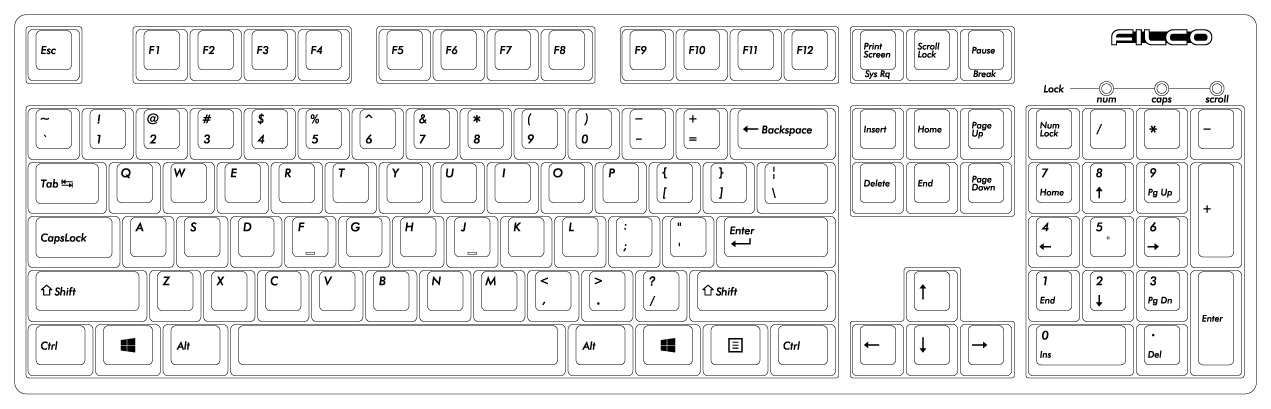

US ASCII Key Arrangement
[Platform Support]
Windows XP/Vista/7/8/10 PC with PS/2 port or USB port
Specifications
Key switch/Number of keys |
Cherry MX SILENT
Switch (linear)/104 keys US ASCII key arrangement |
Key pitch/Key stroke |
19mm / 3.7mm |
Dimensions/Weight |
W440xD138xH38.5mm(49.5mm raised up by stand)/1.2kg |
Interface |
PS/2,USB (PS/2 interface is available with PS/2 Conversion
Adapter) |
Cable length |
1.5m |
Notices |
All our FILCO Keyboard have already passed the CE, FCC and RoHS
certification.
|
