Overview

  • ASRock Super Alloy
  • Supports Intel Core X-Series Processor Family for the LGA 2066 Socket
  • 13 Power Phase Design, Dr. MOS
  • Supports DDR4 4400+(OC)
  • 4 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • NVIDIA 3-Way SLI, AMD 3-Way CrossFireX
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound 4 &TS Connect
  • 10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 &ATA3)
  • 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
  • 8 USB 3.1 Gen1 (4 Front, 4 Rear)
  • Dual Intel Gigabit LAN
  • Intel 802.11ac WiFi
  • ASRock RGB LED
  • BIOS Flashback
  • Hyper BCLK Engine III

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Triple Ultra M.2

Triple of the worlds fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports

SATA3 6Gb/s M.2 modules.

13 Power Phase Design

Designed with a 13 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

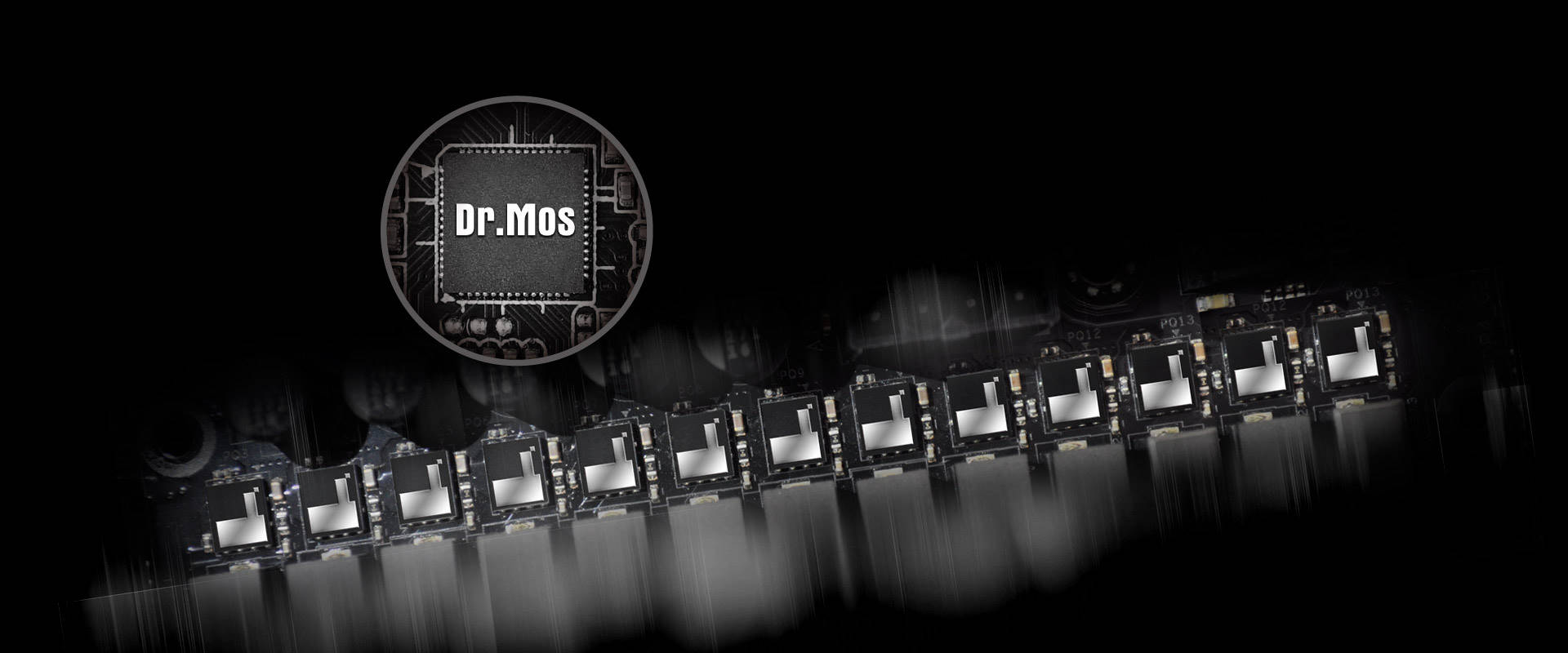

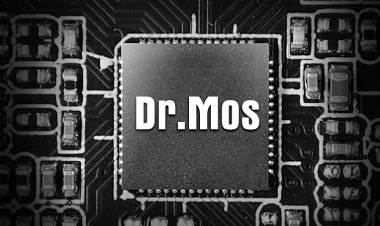

Dr. MOS

Dr. MOS design features the latest SPS (Smart Power Stage) technology. Its optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

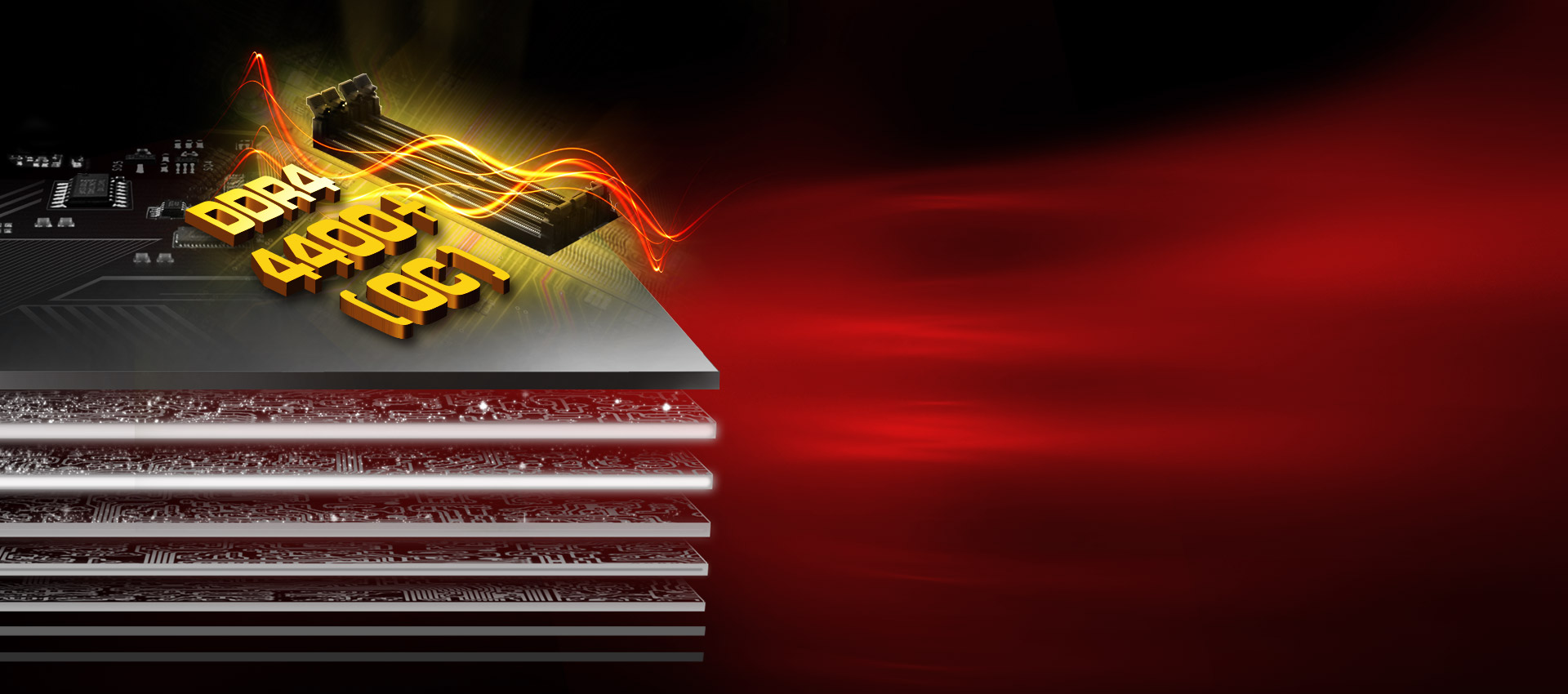

8 Layer PCB (4 x 2oz Copper) &DR4 4400+(OC)

The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

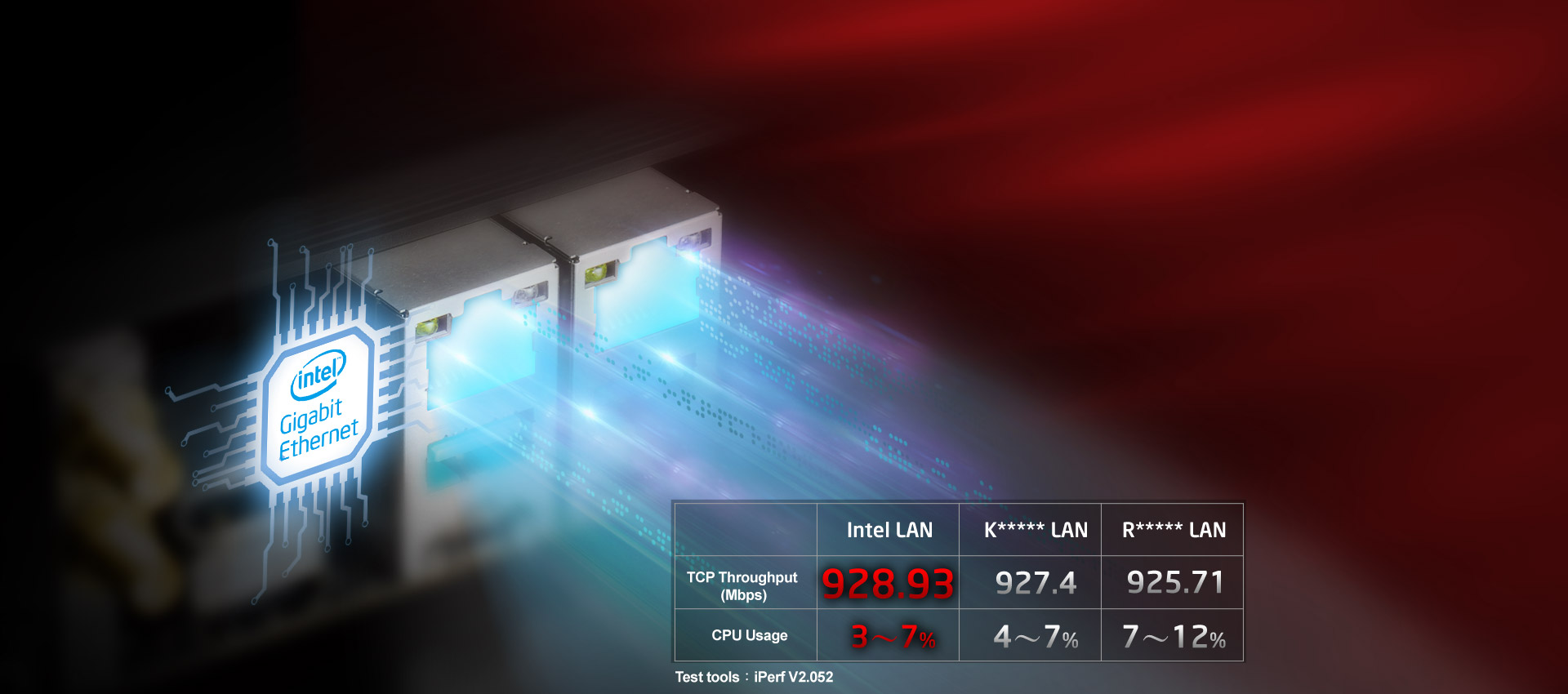

Dual Intel LAN

Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.

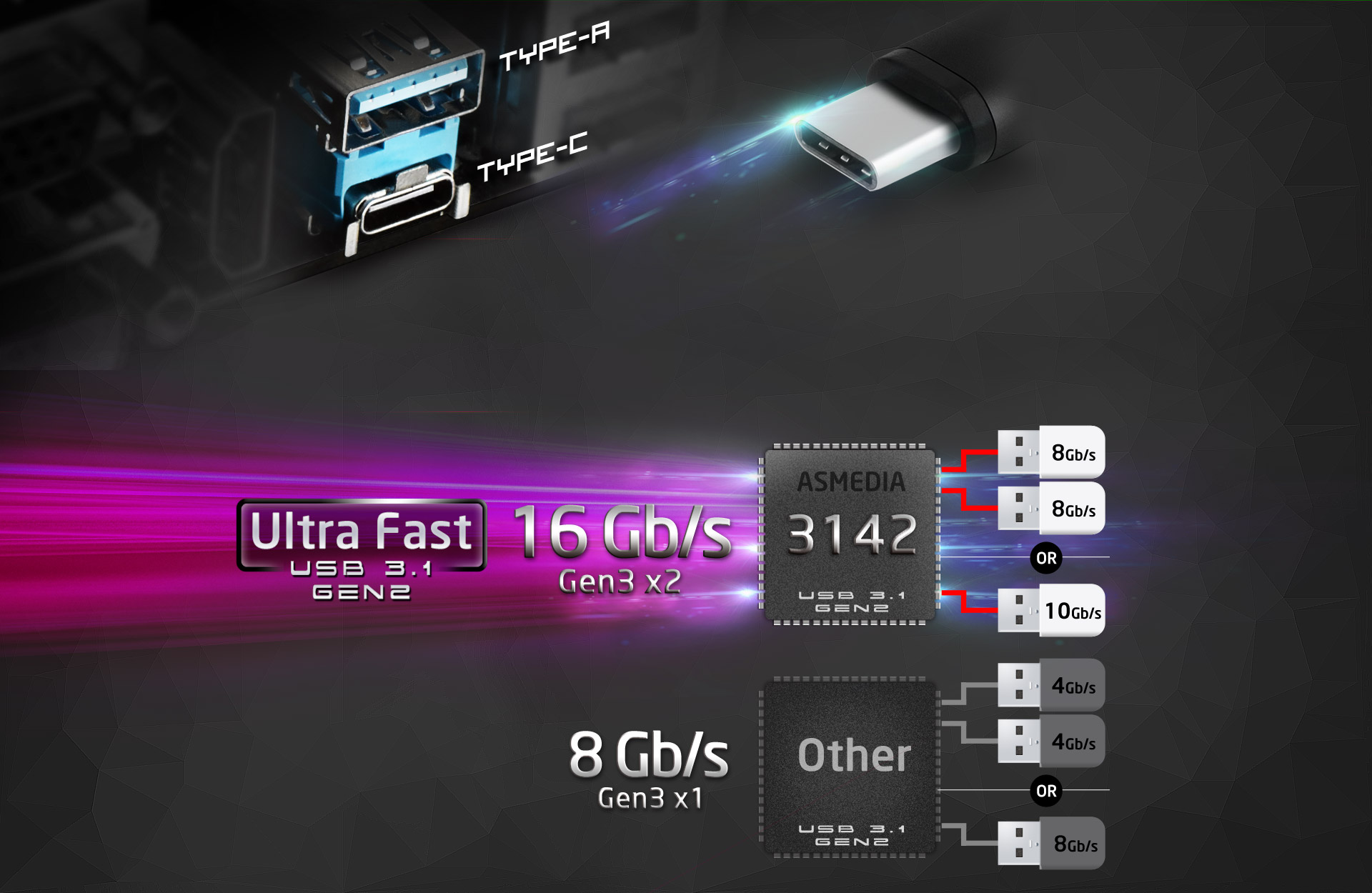

Dual USB 3.1 Gen2 (Type-A + Type-C)

The newer and more power efficient ASM3142 USB 3.1 Gen2 controller not only delivers up to 10 Gbps data transfer rates but also supports "Multiple Ins" architecture, it is able to maintain fast and stable speed while transferring data from two USB storage devices at the same time without bogging down by their speed difference.

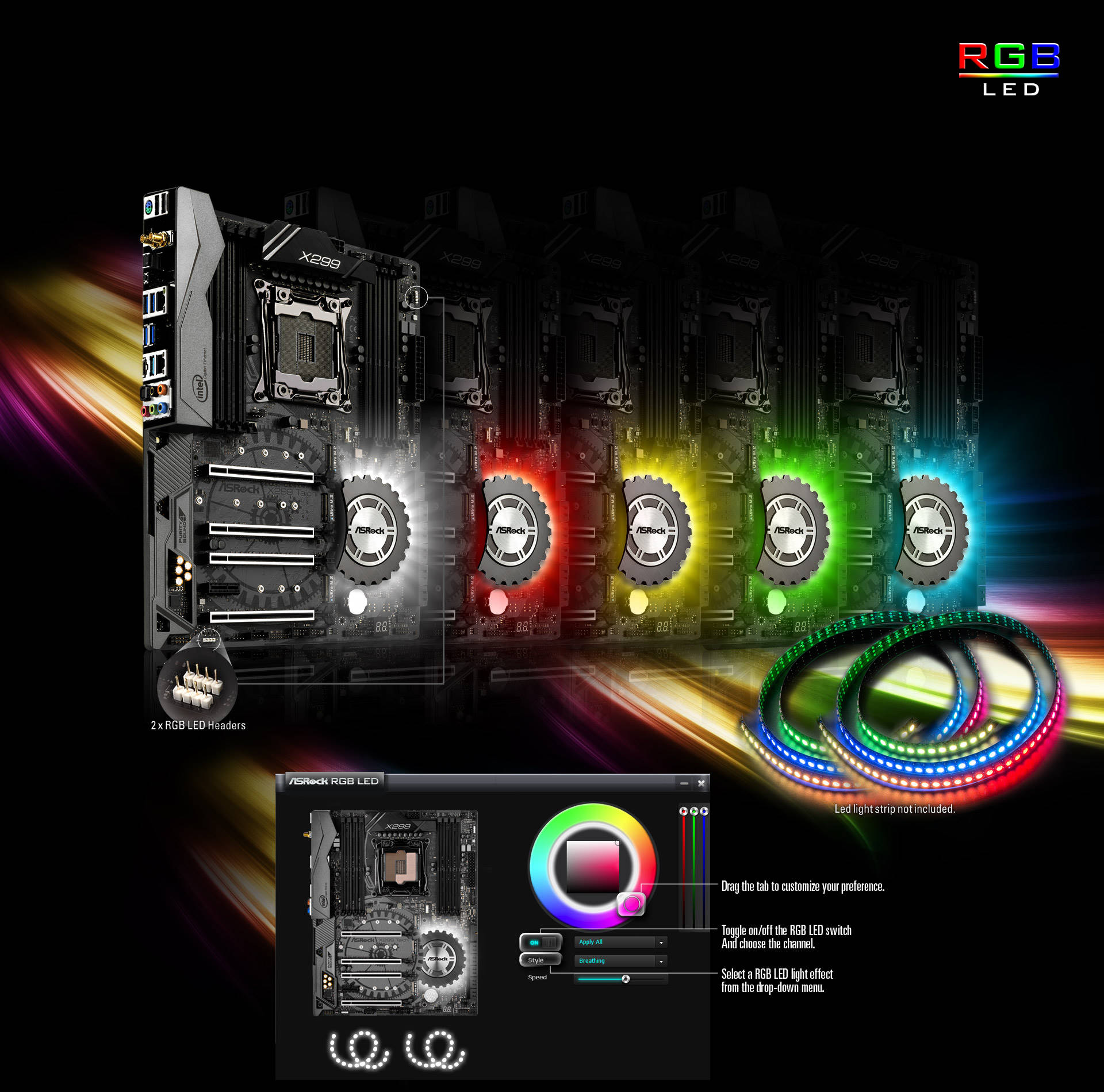

RGB LED

Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloadeddirectlyor from an all-in-one utility ASRock Live Update &PP Shop!

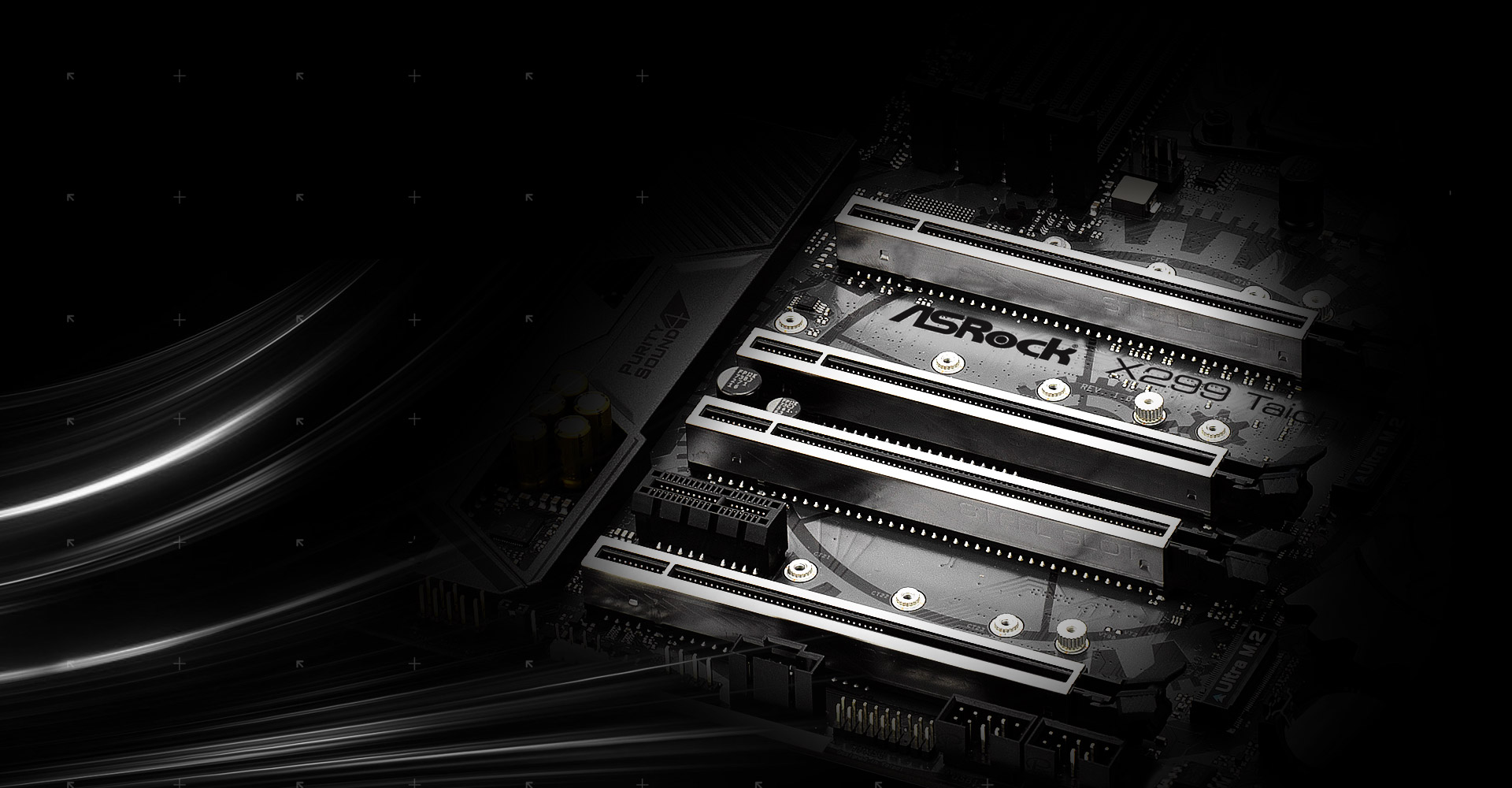

PCI-E STEEL SLOTS

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

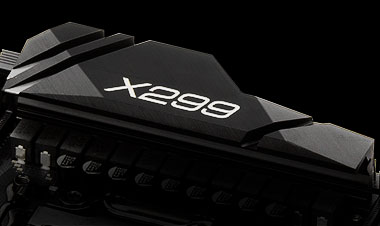

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 65A Power Choke

\

Compared to traditional chokes, ASRocks premium 65A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS

Dr. MOS design features the latest SPS (Smart Power Stage) technology. Its optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

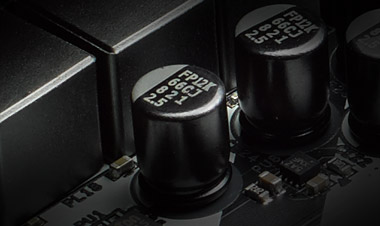

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor

A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

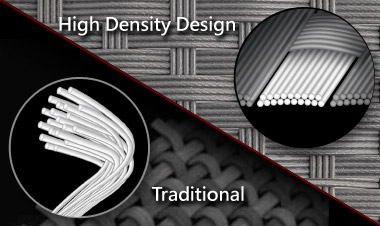

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

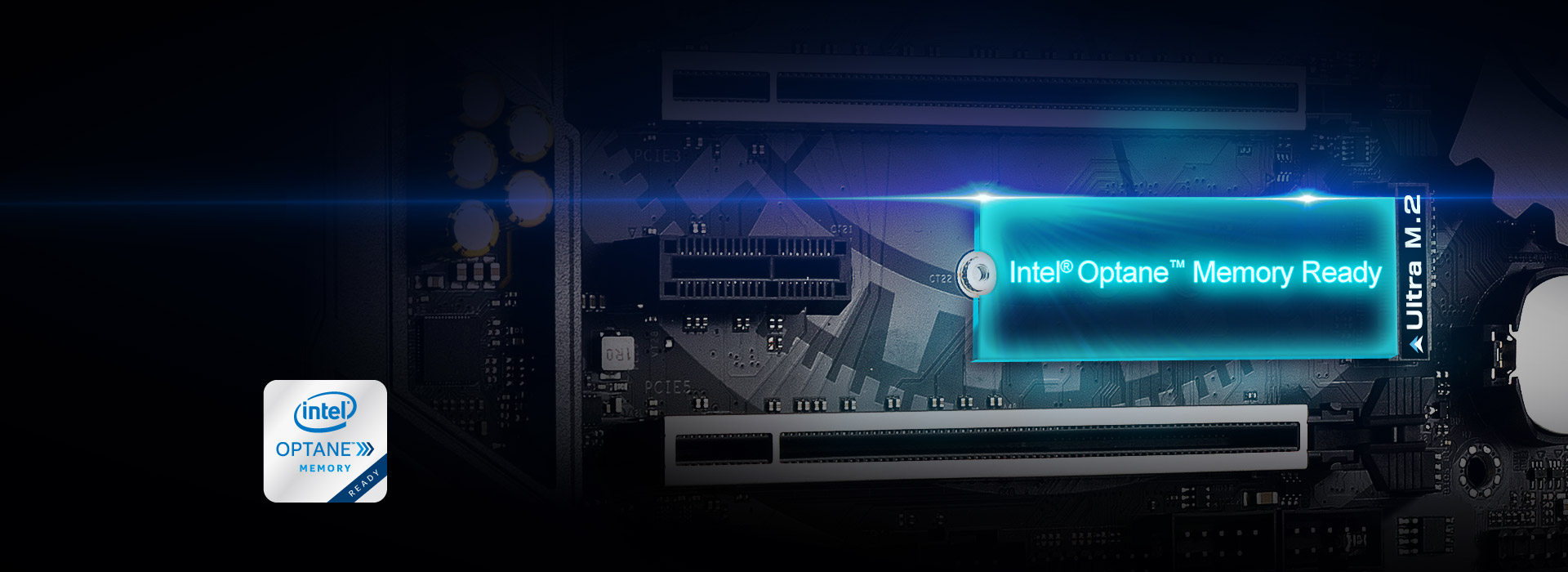

Intel Optane Memory Ready

Supports IntelOptane memory technology and IntelOptane storage technology that redefines a new standard of high performance and responsiveness.

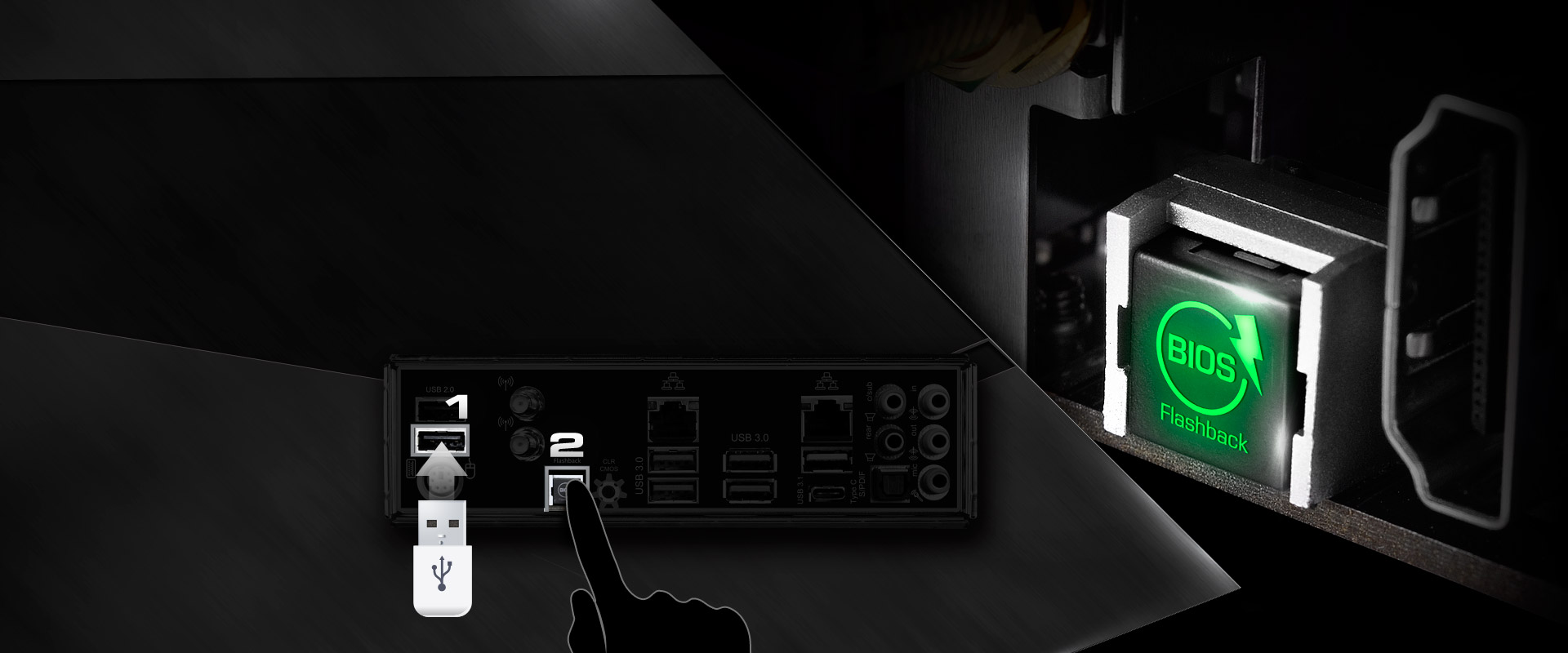

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

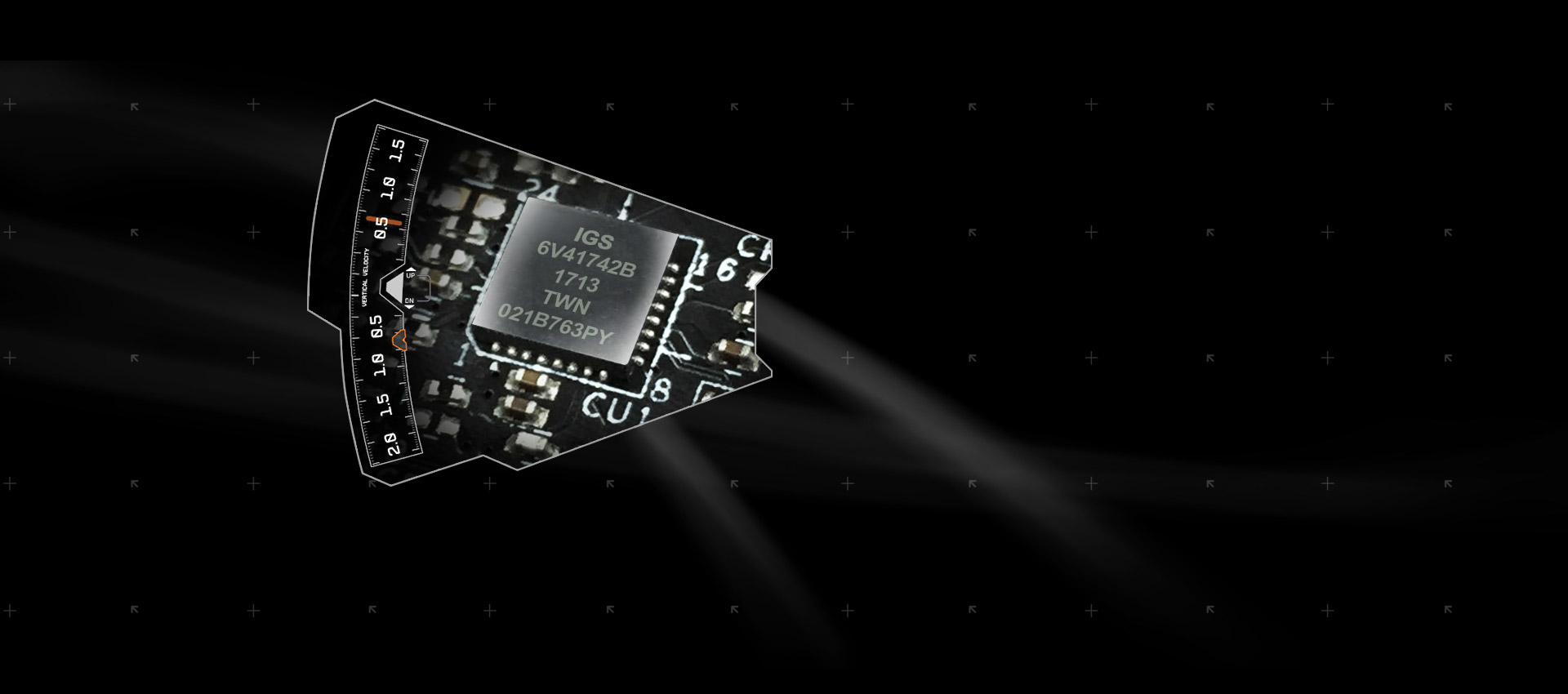

Hyper BCLK Engine III

An additional external base clock generator that supports PCIe frequency overclocking. It provides a wider range of frequencies and more precise clock waveforms, allowing any user to get most from their CPU investment with precise, stable overclocking.

VROC

Virtual RAID On CPU (VROC) is the latest technology that allows you to build RAID with PCIe Lanes coming from the CPU. With VROC, users can setup RAID 0 to speed up the system with ease, not only that, an optional Upgrade Module is also available to open up more RAID options such as 1, 5 and 10.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

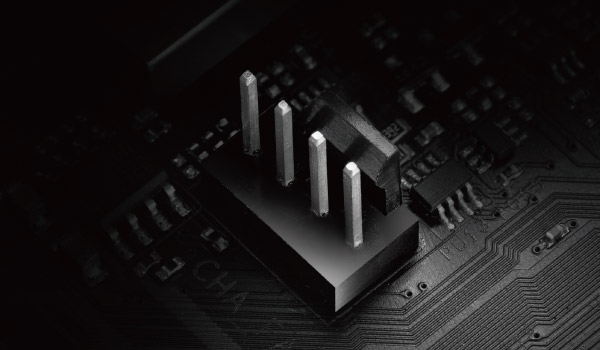

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

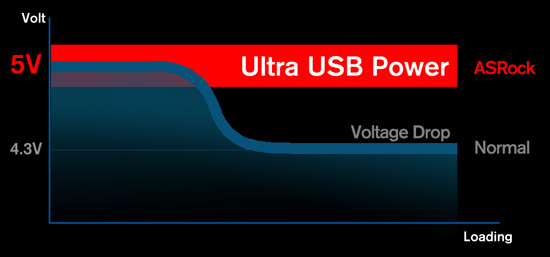

Ultra USB Power



The +5V voltage for the selected rear USB port is transformed from +12V power rail, hence the voltage drop will be much lower than the +5V from the PSU under heavy loading, supplying enough current to USB hubs and high-end devices.

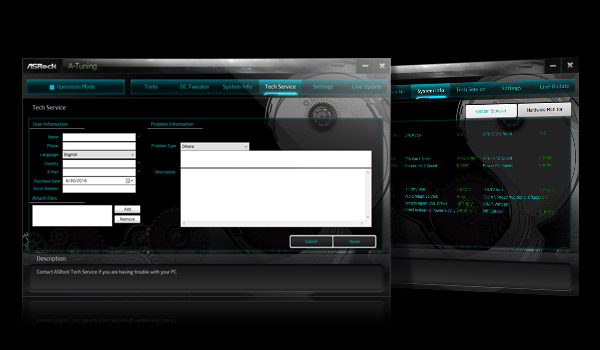

A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Live Update &PP Shop

ASRock Live Update &PP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update &PP Shop.

Specifications

Unique Feature

ASRock USB 3.1 Gen2

ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)

ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

XXL Aluminum Alloy Heatsink

Premium 65A Power Choke

Dr. MOS

Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

I/O Armor

Matte Black PCB

High Density Glass Fabric PCB

ASRock 802.11ac WiFi

ASRock Steel Slots

ASRock Ultra M.2 (PCIe Gen3 x4 &ATA3)

ASRock Ultra USB Power

ASRock Full Spike Protection
(for all USB, Audio, LAN Ports)

ASRock Live Update &PP Shop

CPU

Supports Intel Core X-Series Processor Family for the LGA 2066 Socket

Digi Power design

13 Power Phase design

Supports Intel Turbo Boost Max Technology 3.0

Supports ASRock Hyper BCLK Engine III

Chipset

Intel X299

Memory

Quad Channel DDR4 Memory Technology

8 x DDR4 DIMM Slots

Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) /
3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 /
2400 / 2133 non-ECC, un-buffered memory

Supports non-ECC RDIMM (Registered DIMM)

Max. capacity of system memory: 128GB**

Supports Intel Extreme Memory Profile (XMP) 2.0

15 Gold Contact in DIMM Slots

BIOS

2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support
(1 x Main BIOS and 1 x Backup BIOS)

Supports Secure Backup UEFI Technology

ACPI 6.1 Compliant wake up events

SMBIOS 3.0 Support

CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA,
VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment

Graphics

n/a

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Premium Blu-ray Audio support

Supports Surge Protection

Supports Purity Sound 4

Nichicon Fine Gold Series Audio Caps

120dB SNR DAC with Differential Amplifier

TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector
(Supports up to 600 Ohm headsets)

Pure Power-In

Direct Drive Technology

PCB Isolate Shielding

Impedance Sensing on Front Out port

Individual PCB Layers for R/L Audio Channel

Gold Audio Jacks

15 Gold Audio Connector

Supports DTS Connect

LAN

Gigabit LAN 10/100/1000 Mb/s

1 x Giga PHY Intel I219V, 1 x GigaLAN Intel I211AT

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Wireless LAN

Intel 802.11ac WiFi Module (Free Bundle)

Supports IEEE 802.11a/b/g/n/ac

Supports Dual-Band (2.4/5 GHz)

Supports high speed wireless connections up to 433Mbps

Supports Bluetooth 4.2 / 3.0 + High speed class II

Slots

4 x PCI Express 3.0 x16 Slots*

1 x PCI Express 2.0 x1 Slot

Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX**

Supports NVIDIA Quad SLI, 3-Way SLI and SLI***

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

15 Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

Storage

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10,
Intel Rapid Storage Technology 15 and Intel Smart Response Technology), NCQ,
AHCI and Hot Plug*

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110
M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280
M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Connector

1 x Virtual RAID On CPU Header

1 x TPM Header

1 x Power LED and Speaker Header

2 x RGB LED Headers*

1 x CPU Fan Connector (4-pin)**

1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector (15 Gold Audio Connector)

1 x Thunderbolt AIC Connector (5-pin)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub)
(Supports ESD Protection)

1 x Dr. Debug with LED

Rear Panel I/O

2 x Antenna Ports

1 x PS/2 Mouse/Keyboard Port

1 x Optical SPDIF Out Port

2 x USB 2.0 Ports (Supports ESD Protection)

1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)

1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)*

4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

1 x BIOS Flashback Switch

1 x Clear CMOS Switch

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
(Gold Audio Jacks)

Software and UEFI

Software

ASRock A-Tuning

ASRock RGB LED

ASRock APP Charger

ASRock XFast LAN*

UEFI

ASRock EZ Mode

ASRock Full HD UEFI

ASRock My Favorites in UEFI

ASRock Instant Flash

ASRock Internet Flash

ASRock Crashless BIOS

ASRock UEFI System Browser

ASRock UEFI Tech Service

ASRock Easy RAID Installer

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

Quick Installation Guide, Support CD, I/O Shield

4 x SATA Data Cables

1 x ASRock SLI_HB_Bridge_2S Card

1 x ASRock 3-Way SLI-2S1S Bridge Card

2 x ASRock WiFi 2.4/5 GHz Antennas

3 x Screws for Ultra M.2 Sockets

Hardware Monitor

Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/
Water Pump Fans

Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/
Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/
Water Pump, Chassis, Chassis Optional/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/
Water Pump Fans

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO,
VCCSA, VCCSFR

Form Factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

8 Layer PCB

2oz Copper PCB

OS

Microsoft Windows 10 64-bit

Certifications

FCC, CE, WHQL

ErP/EuP ready (ErP/EuP ready power supply is required)
