All stock codes associated to this product
VS1912, VS1912ATU, VS1912-AT-U
Overview
The VS1912 12-Port DP Video Wall Media Player is a PC-based media player
andan ideal solution for multi-display applications such as digital signage,
video walls, projection screens and digital board installations.
The VS1912 supports video wall configurations with up to 12 displays and
allows you to design creative video walls in various asymmetric layouts. Custom
widget tools allow you to add banners, video playback, flash media, images and
real-time clock displays overstraditional media. The Advanced Video Wall
features allow you to resize, layer (including Picture in Picture), span across
multiple screens and even rotate pictures and videos at 90 intervals.
Multimedia files are uploaded and the system is set up from a computer
connected across a network. With a built-in web interface and intuitive GUI
(Graphical User Interface), access and configuration is simple and does not
require extra software. The VS1912 also features a scheduling function that
helps you create detailed playlists days, weeks, or even months ahead of
time.
In addition, the VS1912 is equipped with two bi-directional RS-232 serial
ports forcontrolling the connected displays, an HDMI input port for routing an
additional HDMI source and USB 3.0, 2.0 ports for importing profile settings and
schedules. With these features, the VS1912 has the flexibility to meet the needs
of various environments, including trade shows, lobbies, conference halls,
shopping malls, and any other public space requiring dynamic video displays.
Features
- PC-based player for digital signage and video wall applications
- Allows a video wall with up to 12 displays
- Supports creative, asymmetric layouts*
- Advanced Video Wall: Pictures and videos can be resized, layered
(including Picture in Picture), spanned across multiple screens and rotated at
90° intervals.
- Upload system confi guration and playback files easily through an
intuitive web GUI, no additional software needed**
- Widgets display video, image, flash media, webpage, text, banner, clock,
RSS or RTSP (Real Time Streaming Protocol) over the screens
- Flexible scheduling and profiles for easy management of connections
- Two bi-directional RS-232 serial ports for controlling connected displays
***
- 64 GB storage capacity and 8GB DDR3 system memory
- One HDMI input port for more flexible media sourcing
- USB 3.0 and 2.0 ports for importing profi le settings and schedules
- Locking mechanism included in DisplayPort cables and DVI adapter
- ESD protection for DisplayPorts
- Firmware upgradeable
- Slim 1U design
- Rack mountable
Package Content
- 1x VS1912 12-Port DP Video Wall Media Player
- 12 x DisplayPort to DVI Adapters
- 1 x Power Cord
- 1 x Mounting Kit
- 1 x User Instructions

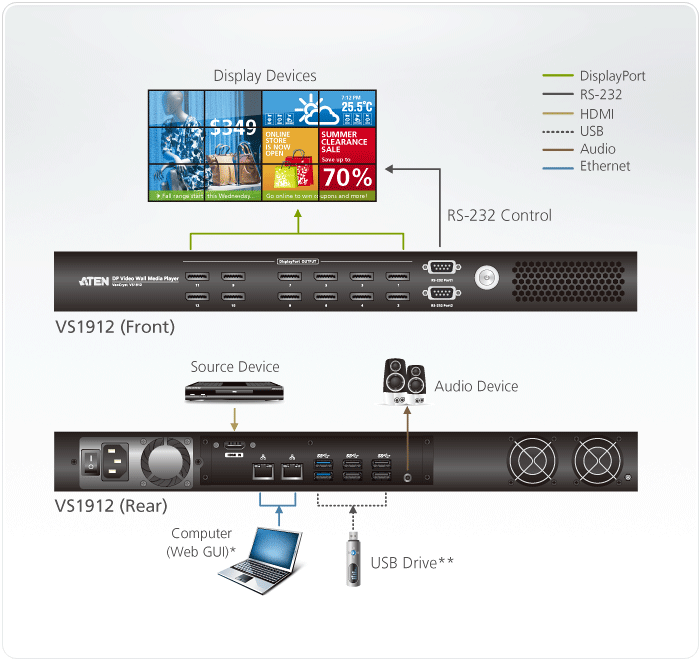

Diagram
Specifications
|
Video Input |
|
|
Interfaces |
1 x HDMI Type A Female |
|
|
|
Video Output |
|
|
Interfaces |
12 x DisplayPort 1.1 Female |
|
|
|
Video |
|
|
Max. Data Rate |
8.64 Gbps (2.7 Gbps per lane) |
|
Max. Pixel Clock |
340 MHz (with DP to DVI active adapter) |
|
Compliance |
HDMI (3D, Deep Color) |
|
DisplayPort 1.1 |
|
|
|
Audio |
|
|
Output |
1 x 3.5 mm Stereo Jack Female |
|
|
|
|
Control |
|
|
RS-232 |
Connector: 2 x DB-9 Female (Black) |
|
Baud Rate and Protocol |
|
Baud Rate: 38400~19200, Hardware & Software Flow
Control |
|
*RS-232 functionality is pending and will be available with future
firmware upgrades |
|
Ethernet |
2 x RJ-45 Female |
|
|
|
USB |
2 x USB 3.0 Female |
|
4 x USB 2.0 Female |
|
|
|
Power |
|
|
Connectors |
1 x 3-prong AC Socket |
|
Maximum Input Power Rating |
100-240 VAC; 50-60 Hz; 3A |
|
Consumption |
120 VAC, 400W; 230 VAC, 400W |
|
|
|
Fan |
Airflow: 28.8 cfm (max. in free air) |
|
Operating voltage: 6.0 ~ 12.0 VDC |
|
Operating temp: -10 ~ 65 C |
|
|
|
Storage Capacity |
64GB mSATA |
|
|
|
System Memory |
8GB DDR3 |
|
|
|
Environmental |
|
|
Operating Temperature |
0-40°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
|
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
4.22 kg ( 9.3 lb ) |
|
Dimensions (L x W x H) |
43.00 x 27.00 x 4.40 cm |
|
(16.93 x 10.63 x 1.73 in.) |
|
|
|
Carton Lot |
3 pcs |
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
