Overview

Features

  • Innovative Outdoor Network Camera with indoor Wi-Fi Unit, providing more freedom to place the camera anywhere
  • Plug-n-View for 24/7 Remote Monitoring with free EdiLife or EdiView II app on iPhone®, iPad® or Android® and 16 channel viewer software for computers
  • 720p HD Video Quality with high resolution and rich detail
  • Night Vision with infrared LEDs, ICR (IR Cut Filter Removal) and auto light-sensor
  • Motion Detection triggers recording and sends to email and ftp
  • Push Notifications & Video Alert with event videos
  • Indoor Wi-Fi Unit with microSD/SDHC Card Slot for local storage and better security
  • Industrial Durability Outdoor Camera with IP66 waterproof rating and anti-cut bracket system
  • Wireless & Ethernet Connection for flexible placement, and compatible with IEEE 802.11b/g/n products
  • Easy Setup with EdiView II & EdiLife mobile app and additional WPS support

Overview

The Edimax IC-9110W is an innovative outdoor network camera with a unique two-piece design featuring an outdoor network camera and an indoor Wi-Fi unit, providing freedom to place the camera anywhere you need. Its a versatile monitoring device ideal for monitoring your home, shop or factory during the daytime or at night. With Edimax Plug-n-View technology, no complicated setup is required and you can easily connect the camera to the cloud and monitor remotely from a smartphone, tablet or laptop.

The IC-9110W additionally features a motion detection system and a built-in a microSD/SDHC card slot. Motion detection can be configured according to user-defined areas. Motion-triggered recording ensures that you capture any illicit or suspicious activity and the wireless user interface allows for easy installation and monitoring.

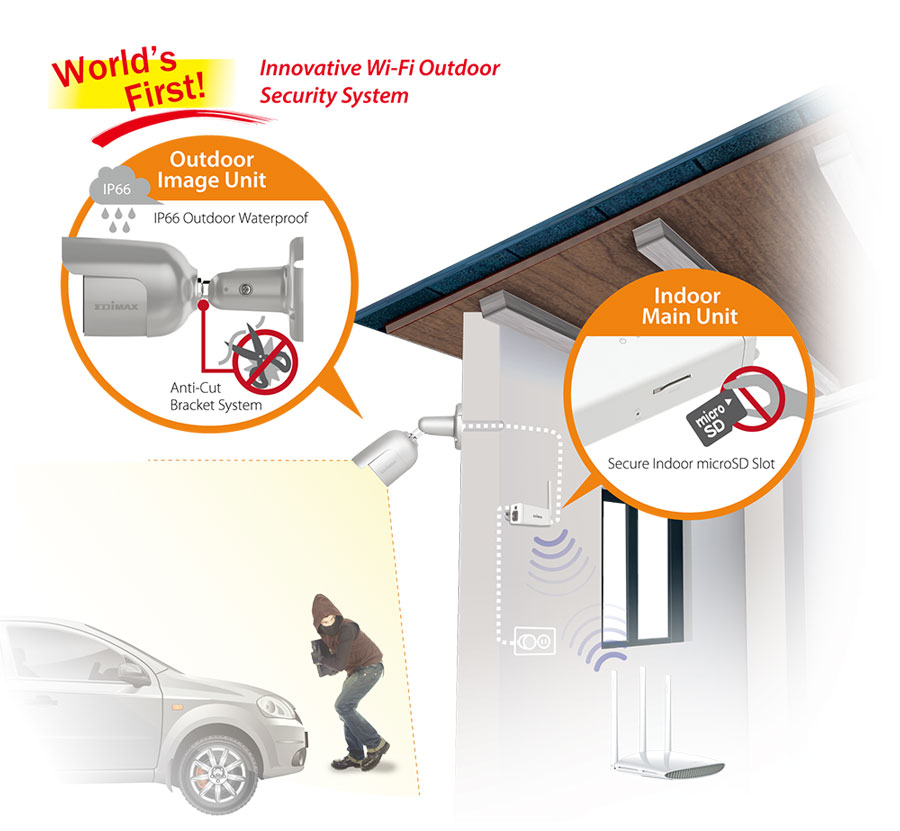

Innovative Outdoor Network Camera with Indoor Wi-Fi Unit

The smart and secure design includes an indoor Wi-Fi unit to connect to your router, and an outdoor camera which connects to the indoor Wi-Fi unit with just a single cable. This allows for greater freedom when placing your camera outside. And it’s IP-66 rated for water & dust resistance with an anti-cut bracket. The indoor main unit also features a microSD card slot for storage.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, Innovative Outdoor Network Camera with Indoor Wi-Fi Unit

Plug-n-View for 24/7 Easy Remote Monitoring

Edimax Plug-n-View technology makes it easy for you to keep an eye on your yard, garage, shop, factory or other assets wherever you go. With Plug-n-View technology, you can connect your network camera to the cloud in a few simple steps and access it remotely with a smartphone, tablet, or computer no matter where you are.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, EdiView II, easy remote monitoring

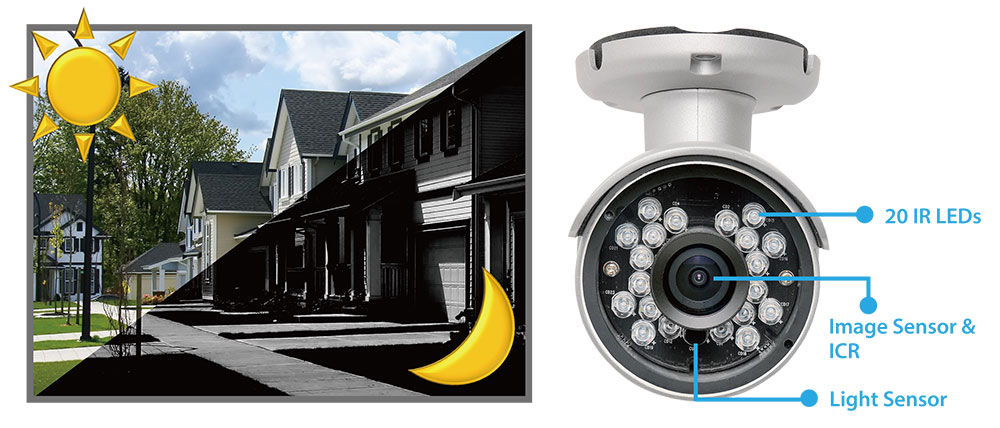

Night Vision

With a light sensor, image sensor and 20 infrared LEDs, the IC-9110W is well equipped to meet outdoor security and surveillance needs - even in low-light and night-time conditions. And with automatic ICR (IR Cut Filter Removal), infrared light is filtered out during the day time (while allowed to pass at night) ensuring exceptional video color quality at all times.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, EdiView II, easy remote monitoring

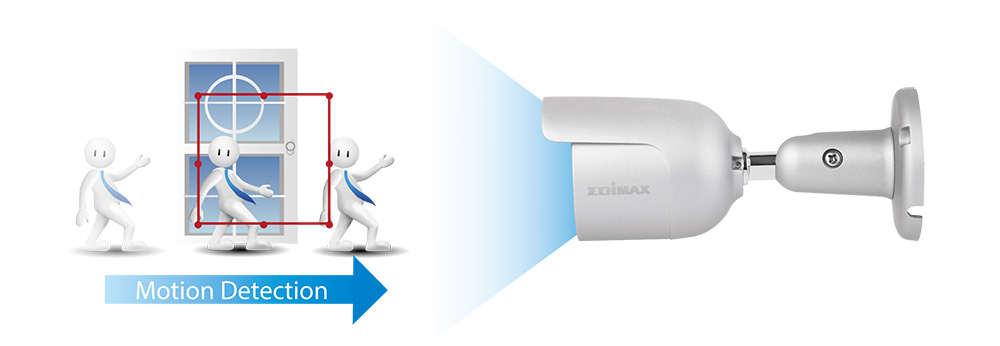

Motion Detection Triggered Recording

The powerful built-in motion detection system with pre-defined detection regions, offers peace of mind that you will capture any illicit activity. The network camera will produce video footage of the event immediately – storing the data on a microSD/SDHC card or sending it automatically via email or ftp.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, motion detection

Push Notifications with Video Alerts

Supports push notifications with video alerts of events. When motion detection is triggered, the IC-9110W starts to record video clips to a microSD card and sends push notifications to your mobile devices, or sends email with event videos.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, push notification with video alert

High Quality Videos

The IC-9110W is built with a wide F2.0 lens which covers an impressive diagonal viewing angle of 108 degrees. With a megapixel CMOS sensor, the network camera is able to capture up to 720p (1280 x 720) videos at 30 frames per second.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, EdiView II, easy remote monitoring

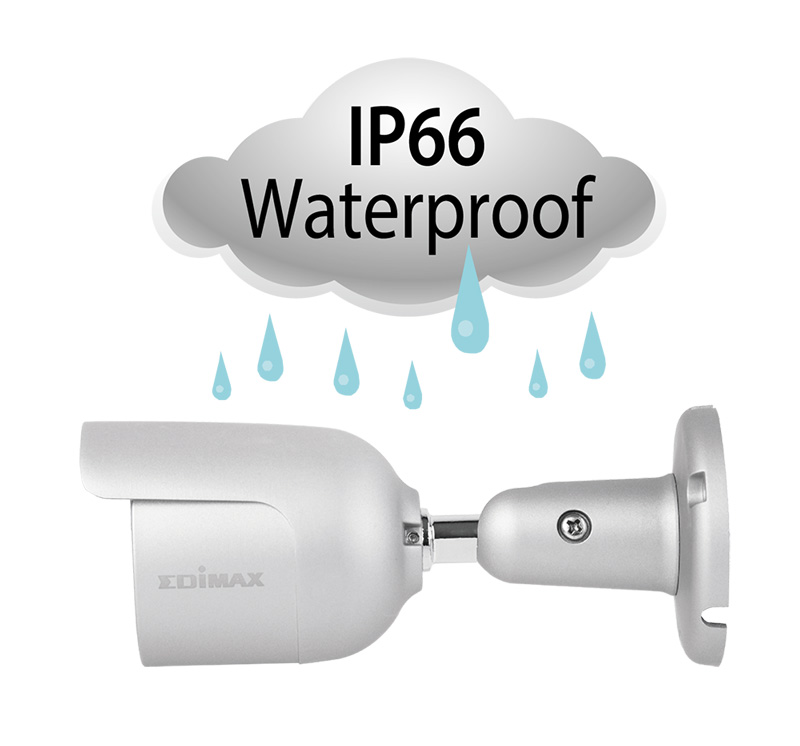

IP66 Outdoor Waterproof

The IC-9110W outdoor case has a solid metal IP66-rated waterproof housing that protects the camera from dirt and rain. A wire-in bracket protects cables from damage or tampering and provides a clean installation.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, EdiView II, easy remote monitoring

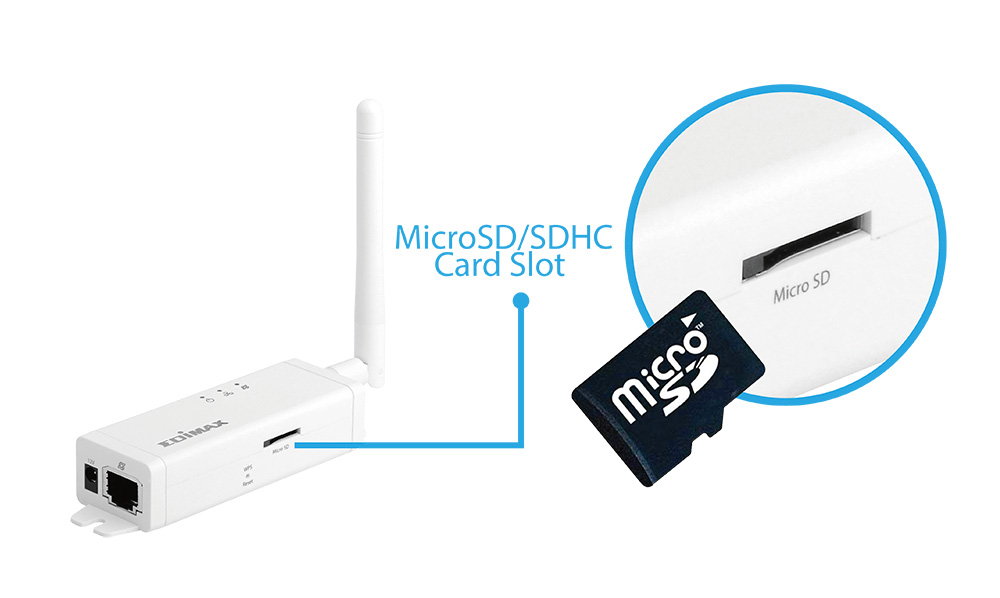

microSD/SDHC Card Slot for Local Storage*

A built-in MicroSD/SDHC card slot supports cards up to 32GB for local storage and backup. *Minimum 8GB capacity microSD recommended. Less than 2GB capacity is not supported.

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, microSD card Slot

SOFTWARE FEATURES

  • Easy remote monitoring via iPhone, iPad, Android, PC & Mac
  • High-speed H.264 & MJPEG video compression
  • Push notifications with video alerts when motion is detected, for better awareness than snapshots alone
  • Motion detected videos to SD card, ftp or email
  • Pre- & post-recording on motion detection
  • Viewer software to access 16 network cameras simultaneously
  • Manual/scheduled/cycle recording

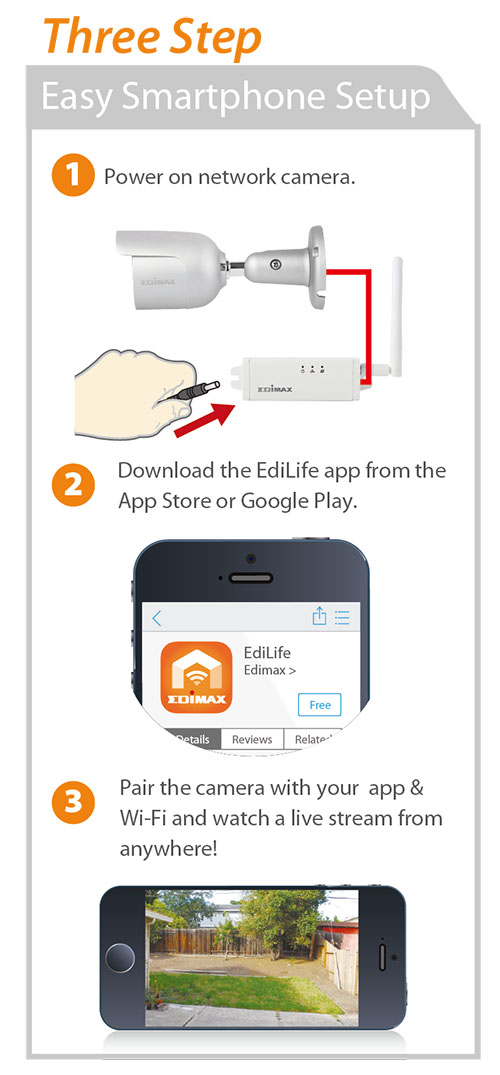

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, EdiView II, easy 3-step smartphone setup

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, EdiView II, anytime anywhere easy remote monitoring

APPLICAITON DIAGRAM

Edimax IC-9110W HD Wi-Fi Mini Outdoor Network Camera, Day & Night, EdiView II, easy remote monitoring, application diagram

PACKAGE CONTENTS

  • Network Camera IC-9110W (Outdoor Camera & Inddor Main Unit)
  • Quick Installation Guide
  • CD-ROM with Utility Software and User Manual
  • Power Adapter
  •  Detachable External Antenna
  • Ethernet Cable
  • Mounting Kit (Outdoor Camera Screws, Indoor Main Unit Screw, Adhesive Pad & Wall Template

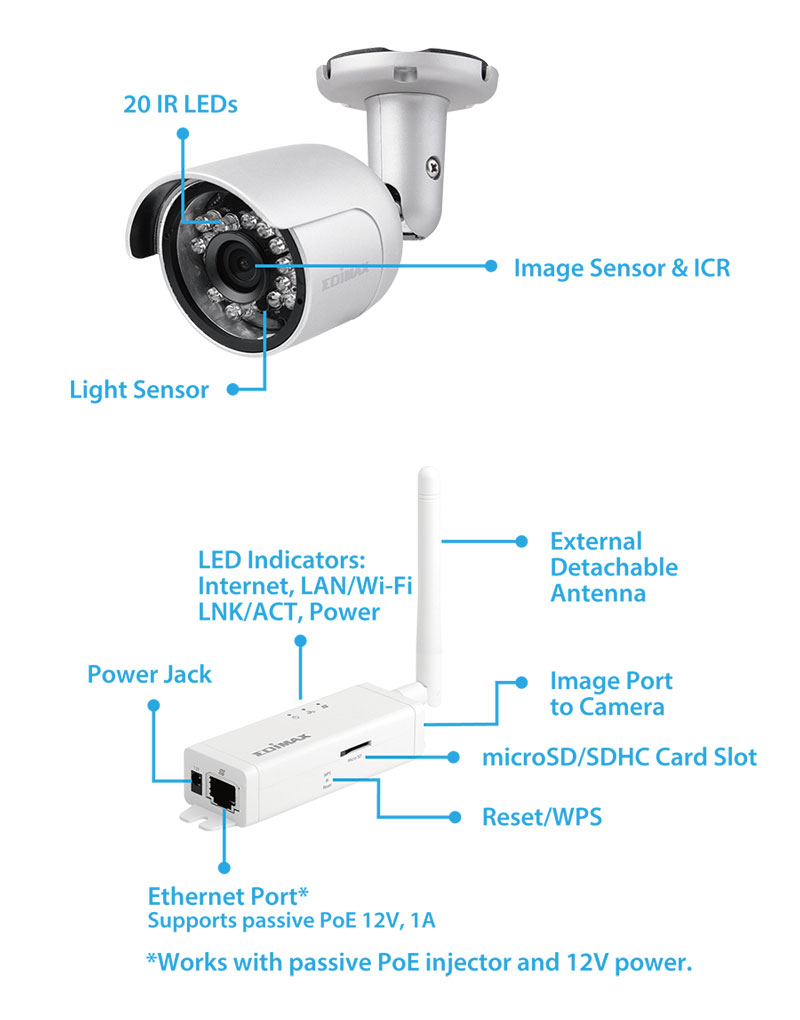

HARDWARE INTERFACE

IC-9110W Smart HD Wi-Fi Mini Outdoor Network Camera, Day & Night, Free App Plug-n-View, 24/7 Remote Monitoring

Specifications

FUNCTIONS

MANAGEMENT

INTERFACE

Easy remote monitoring via iPhone, iPad, Android, PC & Mac

EdiView Finder (Windows/Mac)

Ethernet (RJ-45) port, supports passive PoE injector

108 degrees diagonal viewing angle

16-channel viewer

Power jack

Supports dynamic DNS service

Web management interface

Reset/WPS button

IR filter embedded

Firmware upgradable

Detachable external antenna

Motion detection recording and alerts to microSD/SDHC card, email and FTP

iPhone & iPad viewer app

microSD/SDHC card slot

microSD/SDHC card slot for local storage

Android viewer app

Light sensor

IR LEDs: 20

LED indicators: Internet, LAN/Wi-Fi LINK/ACT, Power

VIDEO

VIDEO SETTINGS

SUPPORTED PROTOCOLS

High-speed H.264 & MJPEG video compression

Resolution: HD (1280 x 720), 640 x 360, 320 x 176

IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE

1280 x 720 up to 30 fps

Frame rate: 5, 10, 15, 20, 25 or 30 fps

640 x 360 up to 30 fps

320 x 176 up to 30 fps

STANDARDS

RF OUTPUT POWER

IR LEDs

Fast Ethernet IEEE 802.3/802.3u

11b: 16~18dBm

IR LEDs for night illumination up to 15 meters (7 meters for clear image)

Wireless IEEE 802.11b/g/n

11g: 14~16dBm

11n: 11~13dBm

MEMORY

OPERATING CONDITIONS

POWER

8MB flash

Outdoor camrea: -20 Degree~50 Degree Celsius

12V DC x 1A

128MB SDRAM

Indoor main unit: 0 Degree~40 Degree Celsius

Humidity: 20-80%RH (non-condensing)

DIMENSIONS

DIMENSIONS / WEIGHT

 CERTIFICATIONS

Outdoor camera: 63.5 x 63.5 x 147.8 mm

Outdoor camera: 330g

FCC, CE

Indoor main unit: 105 x 30.5 x 21 mm

Indoor main unit: 45g
