Overview
- Reliable Touchscreen Setup Effortlessly extends the network with a 100%
success rate using only your fingertips
- Easy Network Management Uses the 4.3''touchscreen to manage your expanded
network, without the need for any other devices
- Superior Extended Range Three external antennas with 700mW high power
amplifiers extend Wi-Fi coverage by up to 10,000 sq. ft.
- Lightning-Fast AC1900 Speed Enjoy 4K streaming video and online gaming
without lag on the 2.4GHz and 5GHz bands
- Gigabit Ethernet Ports Provide gigabit speeds for up to four wired devices
- TP-LINK Tether App Easily access and manage your network using any iOS or
Android mobile device
- Ultimate Compatibility Extend the range of any Wi-Fi router or wireless
access point

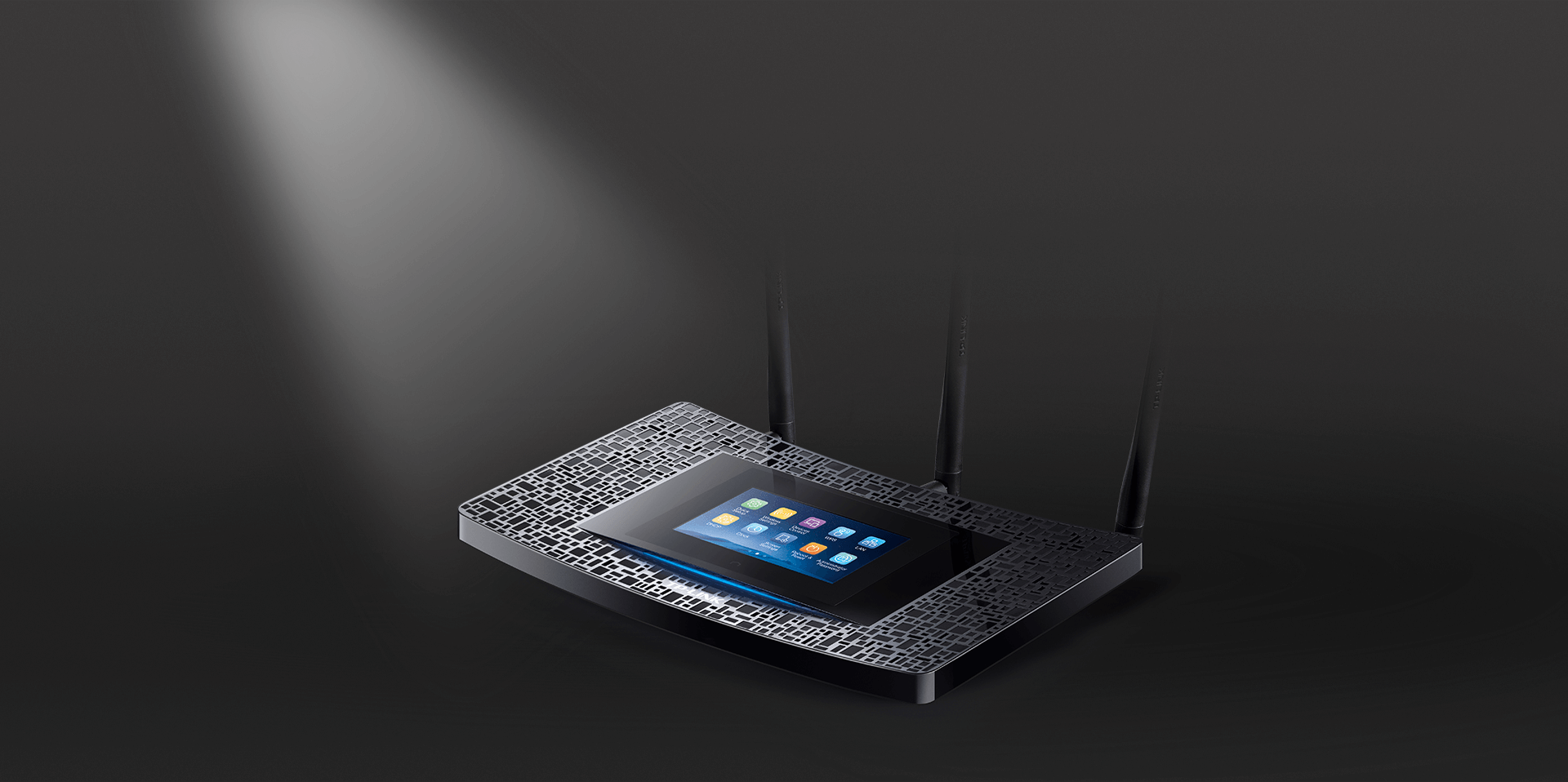

Touch to extend like never before. Connections you can rely
on.
The RE590T is designed to make Wi-Fi range extension as simple and efficient
as possible. Extend your Wi-Fi with streamlined setup procedures on a
touchscreen interface that is as easy to use as your smartphone. The 4.3-inch
capacitive touchscreen provides an intuitive, interactive window into your
extended network that revolutionizes your Wi-Fi experience. The RE590T - Born to
extend with the power of touch.
Simple, reliable setup. Completely at your fingertips.
Why waste time with an unreliable WPS connection or a complicated web UI? The
RE590T provides simple, step-by-step instructions on the integrated screen,
freeing you from the frustration and confusion of network configuration. Simply
select the Wi-Fi networks and bands (2.4GHz and/or 5GHz) that you wish to extend
and confirm the network name and password to expand your wireless coverage with
a 100% success rate.

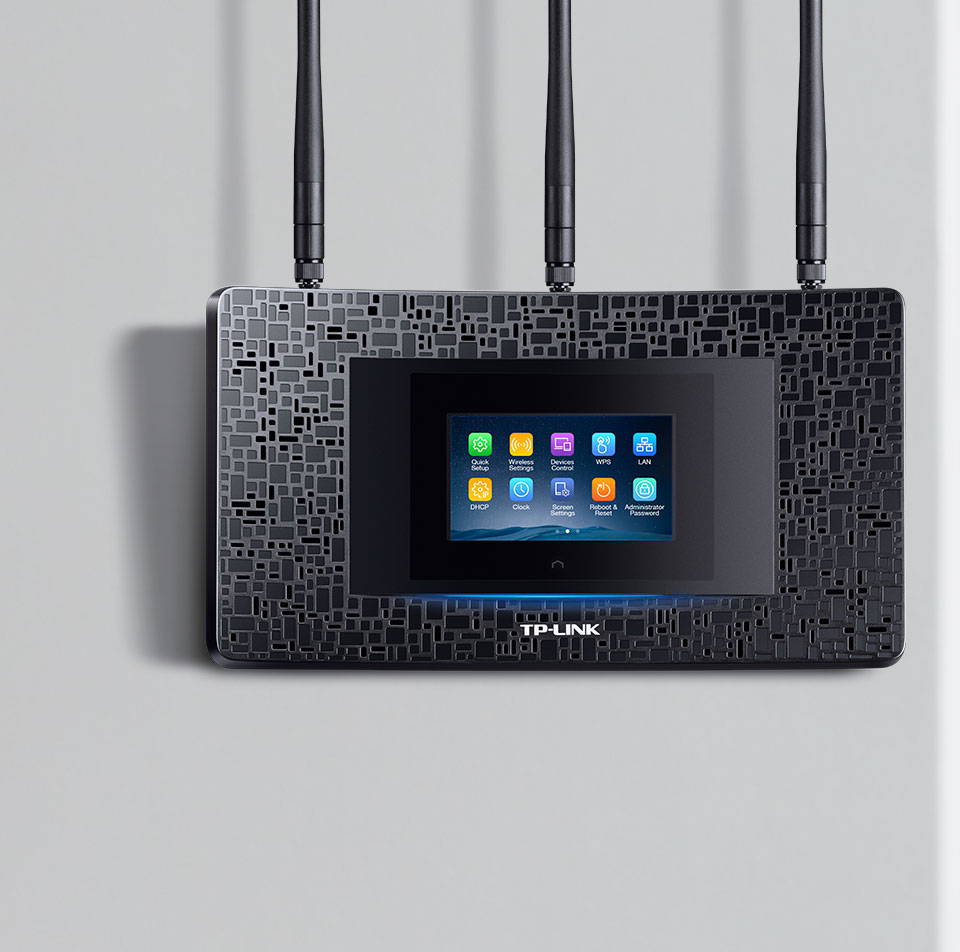

A clear window into network management. An elegant blend of beauty
and utility.
The integrated touchscreen and intuitive user interface provide direct access
to the range extender’s management features, eliminating the need for additional
devices. Interacting with the RE590T’s network settings is as easy as using your
smartphone. Device control options, wireless settings, and signal strength
information can all be found on the responsive touchscreen. For added
convenience, the touchscreen can display a beautifully designed clock that makes
the RE590T an elegant and functional addition to your home’s decor.
Extend Wi-Fi for your whole home. Up to 10,000* square feet of
additional coverage.
Three dual band antennas with 700mW high-powered amplifiers allow the RE590T
to extend up to 10,000* square feet of additional Wi-Fi coverage. The 1GHz dual
core Broadcom processor further broadens the reach of wireless signal and
ensures excellent performance, allowing you to experience stable connections no
matter where you are in your home.

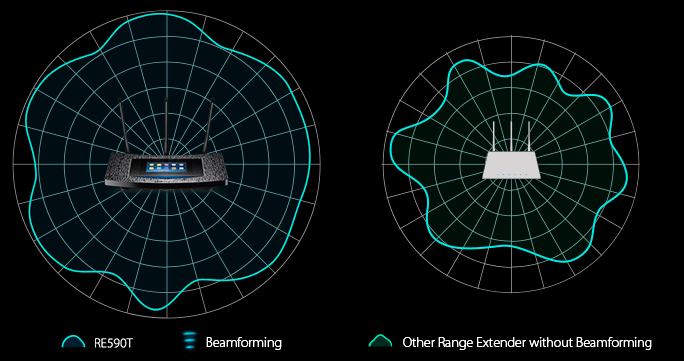

Beamforming Technology
Advanced Beamforming technology allows the range extender to locate wireless
devices and concentrate its wireless signal strength towards them to form
stronger, more reliable connections.
*Maximum extended Wi-Fi coverage specifications are based on performance test
results. Actual Wi-Fi coverage may vary due to environmental factors and
external sources of wireless interference.
Truly impressive wireless and wired speed. Ideal for 4K streaming and
online gaming.
Stream Ultra HD video without buffering, play online games without lag, and
download large files in a flash. Blazing fast AC Wi-Fi speeds of up to 1900Mbp
and 4 Gigabit Ethernet ports provide optimal performance for multiple devices,
ensuring that everyone on your network can enjoy smooth streaming video and
low-latency online gaming.
Specifications
| HARDWARE FEATURES |
| Interface |
4 x 10/100/1000Mbps Ethernet Ports(RJ45) |
| Button |
Reset Button, Power On/Off Button |
| Antenna |
3 dual band detachable antennas |
| External Power Supply |
12V/2.5A |
| Dimensions ( W x D x H ) |
11.2 x 6.2 x 2.1 in. (284 x 157 x 52 mm) |
| Touch Screen |
Screen Type: Capacitive
Screen Size: 4.3 inch
Screen Resolution:
128 ppi |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/ac, IEEE 802.11b/g/n |
| Frequency |
2.4GHz & 5GHz(11ac) |
| Signal Rate |
Up to 1300Mbps @5GHz, Up to 600Mbps @2.4GHz |
| Reception Sensitivity |
2.4GHz:
11g 54M: -76dBm@10% PER
11n HT20 MCS7: -73dBm@10%
PER
11n HT40 MCS7: -71dBm@10% PER
5GHz:
11a 6Mbps:-94dBm@10%
PER
11a 54Mbps: -75dBm@10% PER
11ac HT20 MCS8: -66dBm@10%
PER
11ac HT40 MCS9: -62dBm@10% PER
11ac HT80 MCS9: -59dBm@10% PER
|
| Wireless Modes |
Range Extender |
| Wireless Functions |
Concurrent Mode boost both 2.4G/5G Wi-Fi band, Devices Control, Domain
Login Function |
| Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
| Transmission Power |
CE: <20dBm(2.4GHz), <23dBm(5GHz), FCC: <30dBm
|
| OTHERS |
| Package Contents |
AC1900 Touch Screen Wi-Fi Range Extender RE590T
3 detachable
antennas
Power adapter
RJ-45 Ethernet Cable
Quick Installation
Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1,10,
Mac OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -30~70
(-22 ~158)
Operating Humidity: 10%~90% non-condensing
Storage
Humidity: 5%~90% non-condensing |
| Warranty |
Limited 3-Year Warranty
For further information on our warranty
policy please visit: https://www.tp-link.com.au/support/rma |
| Certifications |
CE, FCC, RoHS |
