Synology DS1517 DiskStation 5-Bay NAS System - Diskless
Powerful all-in-one private cloud solution
High capacity, fully-featured powerhouse
DS1517 is a powerful, scalable 5-bay NAS delivering outstanding data transfer
rates. Built-in four Gigabit LAN ports enables Link Aggregation and failover
functions for maximum performance and service continuity.
Engineered for reliability, backed by Synology
DS1517 is designed to reliably store your data and is backed by Synology's
three-year hardware warranty. An optional two-year extended warranty is
available in select regions for up to five years of coverage.
Synchronize files across your devices
Cloud Station Suite provides real-time data synchronization across all your
devices, such as computers, mobile devices, and other Synology NAS whenever a
file is modified. "Intelliversioning" keeps the most important file versions to
better utilize storage space.
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow
easy, drag-and-drop operation without requiring any complex setup on Mac or PC.
Advanced search and filtering tools allow for easy organization and sharing of
files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any
environment.
Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of
public clouds with the data privacy and security guaranteed by private clouds.
It allows you to work seamlessly together on documents and spreadsheets in a
protected environment.
Easy file access with QuickConnect
Access files on your Synology NAS over the Internet without the hassle of
setting up port forwarding rules, DDNS, or other complicated network settings.
QuickConnect allows you to connect via a simple customizable address (e.g.
https://customID.quickconnect.to), so that you can instantly access media and
work files on any Windows/Mac/Linux computer, laptop, or mobile device without
additional charge.
Powered by Synology DSM
Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
Simplified backup solution for your Mac, PC, and mobile devices.
Public Cloud Integration
Backup and synchronize data easily between your public cloud accounts and
your NAS.
DSM UI
Award-winning operating system with an intuitive user interface and powerful
capabilities.
Security
Comprehensive built-in security tools are constantly updated to tackle
evolving threats and protect your devices.
Multimedia
Complete multimedia solution for management, streaming, and playback.

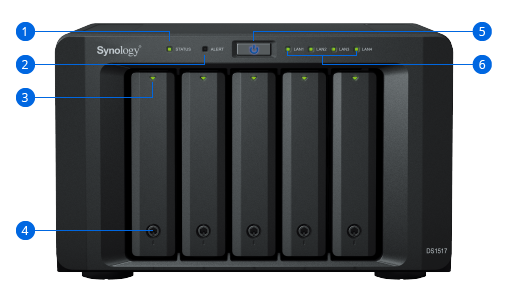

- Status indicator
- Alert indicator
- Drive status indicator
- Drive tray lock
-
Power button and indicator
- LAN indicator

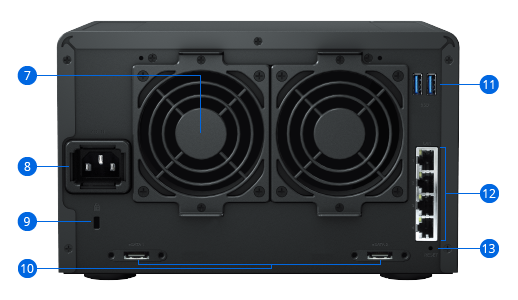

- Fan
- Power port
-
Kensington Security Slot
- eSATA port
- USB 3.0 port
- 1GbE RJ-45 port
- Reset Button
Specifications
| CPU |
| CPU Model |
Annapurna Labs Alpine AL-314 |
| CPU Architecture |
32-bit |
| CPU Frequency |
Quad Core 1.7 GHz |
| Hardware Encryption Engine |
|
| Memory |
| System Memory |
2 GB DDR3L |
| Storage |
| Drive Bays |
5 |
| Maximum Drive Bays with Expansion Unit |
15 |
| Compatible Drive Type* |
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
|
| Maximum Internal Raw Capacity |
60 TB (12 TB drive x 5) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units |
180 TB (12 TB drive x 15) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
108 TB |
| Hot Swappable Drive |
|
| Notes |
"Compatible drive type" indicates the drives that have been tested to
be compatible with Synology products. This term does not indicate the
maximum connection speed of each drive bay. |
| External Ports |
| RJ-45 1GbE LAN Port |
4 (with Link Aggregation / Failover support) |
| USB 3.0 Port |
2 |
| eSATA Port |
2 |
| File System |
| Internal Drives |
EXT4 |
| External Drives |
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT*
|
| Notes |
exFAT Access is purchased separately in Package Center. |
| Appearance |
| Size (Height x Width x Depth) |
157 mm x 248 mm x 233 mm
|
| Weight |
4.15 kg
|
| Others |
| System Fan |
80 mm x 80 mm x 2 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan |
|
| Power Recovery |
|
| Noise Level* |
22.4 dB(A)
|
| Scheduled Power On/Off |
|
| Wake on LAN/WAN |
|
| Power Supply Unit / Adapter |
200W
|
| AC Input Power Voltage |
100V to 240V AC |
| Power Frequency |
50/60 Hz, Single Phase |
| Power Consumption* |
39.5 W (Access)
18.2 W (HDD Hibernation)
|
| British Thermal Unit |
134.78 BTU/hr (Access)
62.10 BTU/hr (HDD Hibernation)
|
| Environment Temperature |
| Operating Temperature |
5°C to 40°C (40°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
| Relative Humidity |
5% to 95% RH |
| Certification |
- FCC Class B
- CE Class B
- BSMI Class B
|
| Warranty |
3 Year Hardware Warranty, Extendable to 5 Year Coverage |
| Notes |
- Power consumption is measured when fully loaded with Western Digital
1TB WD10EFRX hard drive(s).
- Noise Level Testing Environment: Fully loaded with Seagate 1TB
ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones,
each set up at 1 meter away from the Synology NAS front and rear;
Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C;
Humidity: 58.2-61.8%
|
| DSM Specifications |
| Storage Management |
| Maximum Internal Volume Number |
256 |
| Maximum iSCSI Target Number |
32 |
| Maximum iSCSI LUN |
256 |
| iSCSI LUN Clone/Snapshot, Windows ODX |
|
| SSD Read/Write Cache |
|
| SSD TRIM |
|
| Supported RAID Type |
- Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
|
| RAID Migration |
- Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
|
| Volume Expansion with Larger HDDs |
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
|
| Volume Expansion by Adding a HDD |
- Synology Hybrid RAID
- RAID 5
- RAID 6
- JBOD
|
| Global Hot Spare Supported RAID Type |
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
- RAID 10
|
| File Sharing Capacity |
| Maximum Local User Accounts |
2048 |
| Maximum Local Groups |
256 |
| Maximum Shared Folder |
256 |
| Maximum Shared Folder Sync Tasks |
4 |
| Maximum Concurrent CIFS/AFP/FTP Connections |
512 |
| Windows Access Control List (ACL) Integration |
|
| NFS Kerberos Authentication |
|
| High Availability Manager |
|
| Log Center |
|
| Syslog Events per Second |
400 |
| Add-on Packages |
| Central Management System |
|
| Chat |
|
| Maximum Users |
800 |
| Notes |
- The number of concurrent HTTP connections for Chat was configured to
the maximum.
- For tested models with expandable memory, the maximum amount of RAM
was installed.
|
| Cloud Station Server |
|
| Maximum Number of Concurrently Connected Devices |
512 |
| Maximum Number of Synced Files (ext4) |
500,000 / single file reaction time 763 ms |
| Notes |
- The maximum number of concurrently connected devices refers to the
maximum number of devices that can remain connected at the same time.
For more information on file processing capability, please refer to the
reaction time for file processing.
- File reaction time refers to the preparation time required for other
devices to start downloading a 1KByte file from a Synology NAS after the
file has been added to the NAS. RAM expansion was not used during
testing.
- Non-encrypted shared folders were used during the aforementioned
testing.
|
| Download Station |
|
| Maximum Concurrent Download Tasks |
50 |
| exFAT Access (optional) |
|
| Media Server |
|
| DLNA Compliance |
|
| Office |
|
| Maximum Users |
150 |
| Maximum Simultaneous Editing Users |
40 |
| Notes |
- CPU and RAM usage were both under 80% when the number of maximum
users was reached.
- For tested models with expandable memory, the maximum amount of RAM
was installed.
- Client performance may affect maximum simultaneous editing users.
Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
|
| Surveillance Station |
|
| Maximum IP cam (Licenses required) |
30 (including 2 Free License) |
| Total FPS (H.264)* |
900 FPS @ 720p (1280x720)
300 FPS @ 1080p (1920×1080)
200 FPS
@ 3M (2048x1536)
150 FPS @ 5M (2591x1944)
50 FPS @ 4K (3840x2160)
|
| Total FPS (H.265)* |
900 FPS @ 720p (1280x720)
900 FPS @ 1080p (1920×1080)
660 FPS
@ 3M (2048x1536)
330 FPS @ 5M (2591x1944)
150 FPS @ 4K (3840x2160)
|
| Total FPS (MJPEG)* |
250 FPS @ 720p (1280x720)
120 FPS @ 1080p (1920×1080)
100 FPS
@ 3M (2048x1536)
80 FPS @ 5M (2591x1944) |
| Notes |
Surveillance Station throughput is tested with Axis network camera,
using continuous recording with live view from Surveillance Station and
motion detection by camera. Live view and recording are sharing the same
stream from the camera. |
| Video Station |
|
| Video Transcoding |
Group 1 - Type 2 |
| Maximum Transcoding Channel Number |
1 channel, 30 FPS @ 720p (1280x720), H.264 (AVC)/MPEG-4 Part 2 (XVID,
DIVX5)/MPEG-2/VC-1 |
| VPN Server |
|
| Maximum Connections |
15 |
| Environment & Packaging |
| Environment |
RoHS Compliant |
| Packaging Content |
- Main Unit X 1
- Welcome Note X 1
- Accessory Pack X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
|
| Optional Accessories |
- Surveillance Device License Pack
- Expansion Unit: DX517 X 2
- VS360HD
- VS960HD
|
