Hardware |
|
Ordering SKUs |

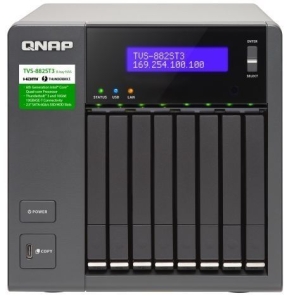

TVS-882ST3-i7-8G |
|
|
CPU |
Intel Core i7-6700HQ quad-core 2.6 GHz, up to 3.5
GHz |
|
|
Encryption Accleration |
Yes, AES-NI |
|
|
System Memory |
8GB (2 x 4GB) |
|
|
Maximum Memory |
32GB (2 x 16GB) |
|
|
Number of Memory Slots |
2 x DDR4 SODIMM slots |
|
(For dual-DIMM configuration, you must use a pair of identical DDR4
modules.) |
|
|
Flash |
512MB |
|
|
Drive |
8 x 2.5" SATA 6Gb/s HDD/SSD |
|
|
Thunderbolt Port |
2 x Thunderbolt 3 |
|
|
10GbE LAN Port |
2 x 10GBASE-T |
|
|
GbE LAN Port |
2 x Gigabit RJ45 |
|
|
USB 3.1 Port |
1 x Type-C USB 3.1 Gen2 10Gbps |
|
1 x Type-A USB 3.1 Gen2 10Gbps |
|
|
USB 3.0 Port |
2 |
|
|
LCM Display |
Yes |
|
|
PCIe Slot |
2 (1 PCIe 3.0 x8 + 1 PCIe 3.0 x4) |
|
Note: Pre-installed with a Thunderbolt 3 card and a 10GbE
card |
|
|
HDMI Port |
1, up to 3846 x 2160, 30Hz |
|
|
Audio Input |
3.5mm microphone input jack |
|
|
Audio Output |
3.5mm line out jack |
|
|
LED Indicators |
Status/Power, USB, Drive 1-8 |
|
|
Buttons |
Power, USB copy, reset, select, enter |
|
|
Infrared Receiver |
Yes, supplied with QNAP RM-IR004 remote control |
|
|
Other Interfaces |
Kensington security slot, maintenance port |
|
|
Dimension (HxWxD) |
177 x 180 x 235 mm |
|
6.97 x 7.09 x 9.25 inch |
|
|
Weight |
|
Net (NAS only) |
3.97 kg (8.75lbs) |
|
|
Operating Temperature |
0 ~ 40°C (32°F ~ 104°F) |
|
|
Relatie Humidity |
5~95% RH non-condensing, wet bulb: 27°C (80.6°F) |
|
|
Sound Level (dB)* |
15.2 dB (A) |
|
|
Power Consumption |
|
HDD sleep |
26.36W |
Typical operation |
43.43W |
|
|
Power Supply |
ATX 250W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz |
|
|
Fan |
1 x 12 cm (12V DC) |
|
|
Software |
|
Operating System |
QTS 4.3 (embedded Linux) |
|
|
Supported Client OS |
1. Windows 7, Windows 8, Windows 10, Windows Server 2003/2008
R2/2012/2012R2 |
|
2. Apple Mac OS 10.7+ |
|
3. Linux & UNIX |
|
|
Supported Browsers |
1. Microsoft Internet Explorer 10+ |
|
2. Google Chrome |
|
3. Apple Safari 7+ |
|
4. Mozilla Firefox |
|
|
Multilingual Support |
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English,
Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean,
Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish,
Swedish, Thai, Turkish |
|
|
File System |
1. Internal Hard Drive: EXT4 |
|
2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+,
exFAT* |
|
*exFAT is purchased separately in App Center. |
|
|
Network & Virtual Switch |
1. TCP/IP (IPv4 & IPv6: Dual
Stack)1 |
|
2. Jumbo frame (failover, multi-IP settings, port trunking/NIC
teaming) |
|
3. DHCP client, DHCP server |
|
4. USB Wi-Fi adapter support |
|
5. Virtual Switch |
|
Supports editing the Virtual Switches in Virtualization
station. |
|
Supports combining virtual machines and containers to the same Virtual
Switch. |
|
Supports NAT (Network Address Translation). |
|
Supports STP (Spanning Tree Protocol). |
|
Supports Thunderbolt to Ethernet converter |
|
6. WirelessAP Station via App Center |
|
|
Security |
1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S),
FTP, CIFS/SMB, AFP |
|
2. CIFS host access control for shared folders |
|
3. FIPS 140-2 validated AES 256-bit volume-based and shared folder data
encryption2 |
|
4. AES 256-bit external drive
encryption2 |
|
5. Importable SSL certificates. Supports certificates from Lets
Encrypt |
|
6. Instant alerts via email, SMS, beep, push service, and LCD
panel |
|
7. 2-step verification |
|
|
Storage Management |
1. Storage Space Utilization monitoring |
|
2. QNAP flexible Volume/LUN with thin provisioning and space
reclaim |
|
3. Disk volume types: RAID 0,1, 5, 6, 10, + hot spare, JBOD
single |
|
4. Supports storage pools |
|
5. Supports Qtier Technology |
|
6. Supports snapshots |
|
Supports Volume/LUN snapshot |
|
Snapshot manager |
|
Snapshot clone |
|
Snapshot vault |
|
Snapshot replica |
|
Snapshot agent for Microsoft Windows and VMware
vSphere |
|
7. Online volume expansion |
|
8. Online storage pool expansion |
|
9. Online RAID capacity expansion and online RAID level
migration |
|
10. SMART data migration |
|
11. Storage expansion via QNAP TX-500P/TX-800P/UX-500P/UX-800P
expansion units |
|
12. JBOD enclosure roaming |
|
13. SSD read-only/read-write cache |
|
14. Bad block scan and hard drive S.M.A.R.T. |
|
15. Bad block recovery & RAID recovery |
|
16. Bitmap support |
|
|
Powerful All-in-one server |
|
File Server |
1. File sharing across Windows, Mac, and
Linux/UNIX |
|
2. Microsoft networking |
|
3. Windows ACL |
|
4. Advanced folder permissions for CIFS/SMB, AFP,
FTP |
|
5. Shared folder aggregation (CIFS/SMB) |
|
|
FTP Server |
1. FTP over SSL/TLS (Explicit) |
|
2. FXP support |
|
|
File Station |
1. Supports mounting cloud drives (such as Google Drive, Dropbox,
Microsoft OneDrive, Microsoft OneDrive for Business, HiDrive, Amazon Cloud
Drive, Yandex Disk and Box). |
|
2. Supports mounting remote shared folders through FTP or Microsoft
networking (SMB/CIFS) |
|
3. Supports opening documents via Office Online, Google Docs or Chrome
Extension (Edit Office files in Google Docs, Sheets, and
Slides) |
|
4. Supports ISO Mounting (Up to 256 ISO Files) |
|
5. Supports sharing download links and upload
links |
|
6. Drag-n-drop Files via Chrome and Firefox
Browsers |
|
7. Photo, music, and video preview and playback |
|
8. File Compression (ZIP or 7z) |
|
9. Creation of and sending download links for sharing public files with
expiration date and password protection |
|
10. Supports displaying subtitles (*.SRT, UTF-8
format) |
|
- Video seeking support for video playback |
|
- Supports slideshow playback in media viewer |
|
11. Mobile App: Qfile for file browsing and
management |
|
|
Qfiling |
1. Supports auto filing |
|
2. Support recipe function |
|
3. Support iSCSI, USB, DVD and remote NAS as archiving
devices |
|
4. Support advanced settings |
|
- Delete original files |
|
- Intelligent subtitle filing for videos |
|
- Data integrity check |
|
- File conflict policy |
|
|
Transcode Management |
1. Transcode video files to 240p, 360p, 480p, 720p and 1080p
resolution |
|
2. Automatic video transcoding for watched folders |
|
3. Embed subtitles into videos for background
transcoding |
|
|
Backup Station |
1. Support backing up to Amazon S3, Amazon Glacier, Microsoft Azure,
Google Cloud Storage, Openstack Swift, WebDAV, and
HKBN |
|
2. Syncing with Microsoft OneDrive, Google Drive, Dropbox, Amazon
Drive, Yandex Disk, Box, hubiC, BackBlaze B2, Amazon S3, and
HiDrive |
|
3. Works as both RTRR server & client with bandwidth
control |
|
4. Rsync server functionality with download bandwidth
control |
|
5. Syncing with remote servers through RTRR, Rsync, FTP, and
CIFS/SMB |
|
6. Scheduled backup to local and remote storage
spaces |
|
7. Backup versioning for RTRR |
|
8. Encryption, compression, and file filters |
|
9. Centralized management for backup, restoration, and sync
jobs |
|
10. Support for Apple Time Machine |
|
11. Data backup to multiple external storage
devices |
|
12. Desktop backup with QNAP NetBak Replicator for
Windows |
|
13. Third party backup software support: Veeam backup &
replication, Acronis True Image, Arcserve backup, Retrospect, Backup Exec,
etc. |
|
|
Cloud Drive Sync |
1. Multiple cloud account management like Google Drive, Dropbox,
OneDrive, and hubiC |
|
2. Supports multiple cloud accounts |
|
3. Manual, scheduled, periodic and continuous sync |
|
4. Flexible file filtering using type, date, and
size |
|
5. SSL transfer encryption |
|
6. Dashboard and job statistics |
|
7. Configurable network error recovery options |
|
8. Extensive job activity logging for tracing history of status and
statistics |
|
9. Concurrent job execution and multi-threaded data
transfer |
|
10. Per-account bandwidth throttling |
|
|
Cloud Backup Station |
1. S3 Plus (including Amazon S3) |
|
2. Amazon Glacier |
|
3. Google Cloud Storage |
|
4. WebDAV-based cloud storage |
|
5. Microsoft Azure |
|
6. OpenStack Swift |
|
|
Print Server |
1. Max number of printers: 3 |
|
2. Supports Internet Printing Protocol |
|
3. Print job display and management |
|
4. IP-based and domain name-based privilege
control |
|
|
Photo Station |
1. Show photos by thumbnails, list, timeline, or folder
view |
|
2. Supports virtual/smart albums |
|
3. Validity control for sharing albums |
|
4. Tag photos with text, colors, and ratings |
|
5. Slideshows with background music and different transition
effects |
|
6. Geotag photos and display them on Google maps |
|
7. Supports uploading photos/videos to Picasa, Flickr, and
Weibo |
|
8. Backup/Restore album configurations |
|
9. Supports advanced folder permission |
|
10. Supports domain users |
|
11. Photo Station Extension: Supports face detection and PDF to
image |
|
12. Mobile app: Qphoto for online browsing and
sharing |
|
|
Music Station |
1. Play or share music via web browser |
|
2. Supports streaming music to multiple devices |
|
3. Supports changing album covers via Google search or by uploading
photos. |
|
4. Internet radio (MP3) |
|
5. Up to 8 music alarms |
|
6. Mobile app: Qmusic for music streaming and
management |
|
7. Supports scrolling lyrics. |
|
|
iTunes Server |
1. Audio and video sharing for Windows & Mac
iTunes |
|
|
Video Station |
1. Show photos by thumbnails, list, timeline, or folder
view |
|
2. Supports virtual/smart collections |
|
3. Tag videos with text, color, and ratings |
|
4. Share video links to social websites or through
email |
|
5. Display movie information and posters from Internet sources or
user-uploaded files |
|
6. Supports displaying subtitles (*.SRT,*.ASS,
*.SSA) |
|
7. Supports online searching and downloading of subtitles as well as
importing subtitle files |
|
8. Supports adjusting the display style of
subtitles |
|
9. Supports Facebook friend login |
|
10. Supports advanced folder permission settings |
|
11. Supports LDAP users |
|
12. Videos can be uploaded to YouTube and Youku |
|
13. Supports multi-zone video display |
|
14. Video seeking support for video playback |
|
15. Mobile app: Qvideo for online video browsing and
management |
|
|
AirPlay & Chromecast |
1. Streams videos, photos and music from NAS to Apple TV or Chromecast
via File Station, Music Station, Photo Station, Video Station or mobile
app (Qfile, Qmusic, Qphoto or Qvideo). |
|
Note: The Media Streaming add-on app must be installed from the QTS App
Center. |
|
|
Download Station |
1. PC-less BT, FTP/FTPS, and HTTP/HTTPS, Thunder, FlashGet and qqdl
download (up to 500 Tasks) |
|
The maximum number of concurrent downloads: 90 (30 BT/PT, 30 HTTP,
30FTP downloads) |
|
2. BT download with search, Magnet Link and PT
support |
|
3. Supports add-ons to expand download
functionality. |
|
4. Scheduled download and bandwidth control |
|
5. RSS subscription and download (broadcatching) |
|
6. Proxy support for BT download |
|
7. Mobile app: Qget for downloads browsing and
management |
|
|
Power Management |
1. Wake on LAN |
|
2. Internal hard drive standby mode |
|
3. Scheduled power on/off |
|
4. Automatic power on after power recovery |
|
5. USB and network UPS support with SNMP
management |
|
|
Access Right Management |
1. Batch users creation |
|
2. Import/Export users |
|
3. User quota management |
|
4. Local user access control for CIFS, AFP, FTP, and
WebDAV |
|
5. Application access control for Photo Station, Music Station, Video
Station, and File Station |
|
6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File
Station |
|
|
Domain Authentication Integration |
1. Microsoft Active Directory (AD) & Domain Controller
support |
|
2. LDAP server, LDAP client |
|
3. Domain users login via CIFS/SMB, AFP, FTP, and File
Station |
|
|
myQNAPcloud Service |
1. Private cloud storage and sharing |
|
2. Free host name registration (DDNS) |
|
3. Optional myQNAPcloud SSL certificates (DDNS) |
|
4. Auto router configuration (via UPnP) |
|
5. Web-based file manager with HTTPS 2048-bit
encryption |
|
6. CloudLink for remote access without any complicated router
setup |
|
7. myQNAPcloud connect for easy VPN connection (Windows VPN
utility) |
|
|
Qsync |
1. Sync files across multiple devices with SSL secure
connection |
|
2. Selective synchronization for only syncing specific
folders |
|
3. Use team folders as a file center for greater team collaboration
(maximum sync tasks:32) |
|
4. Shares files by links via e-mail |
|
5. Policy settings for conflicting files and file type filter
support |
|
6. Version control: up to 64 versions |
|
7. Unified privilege management |
|
8. Unified configuration management |
|
9. Supports central configuration mode |
|
10. Supports remote erase/restore |
|
11. Supports shared folders sync |
|
12. Supports Windows & Mac OS |
|
|
Resource Monitor |
1. Monitor NAS system resources including CPU, memory and
network |
|
2. Monitor NAS storage resources including volumes, RAID, and disk
activity |
|
3. Monitor the resource usage of NAS applications |
|
4. An extra swap space will be created if SSD is added to the NAS. Swap
space on SSDs is prioritized over swap space on HDDs because of the
greater speeds of SSDs |
|
|
Helpdesk |
1. Report issues to the QNAP support team, with automatically-collected
system information. |
|
2. Allows QNAP support engineers to remotely connect to the NAS to fix
issues (with user permission). |
|
|
Web Administration |
1. Multi-window, multi-tasking based system
management |
|
2. Smart toolbar and dashboard for neat system status
display |
|
3. Dynamic DNS (DDNS) |
|
4. SNMP (v2 & v3) |
|
5. Resource monitor |
|
6. Network recycle bin for file deletion via CIFS/SMB, AFP, and File
Station |
|
Automatic Cleanup |
|
File Type Filter |
|
7. Comprehensive logs (events & connection) |
|
8. Syslog client/server |
|
9. System settings backup and restore |
|
10. Mobile app: Qmanager for remote system monitoring &
management |
|
|
Notes Station |
1. New user interface |
|
2. New collaborative editor for multi-user text
editing |
|
3. New spreadsheet editor for creating tables. |
|
4. Online quick preview of multimedia attachments |
|
5. Smart snapshot for version control |
|
|
HD (HybridDesk) Station 3.1 |
1. Use the NAS as a HTPC |
|
2. Enjoy videos, music, photos on TV via HDMI |
|
3. Web browsers (Chrome, Firefox) |
|
4. Supports international keyboards, input and
mouse |
|
5. Supports user login permissions |
|
Note: |
|
- The playback and quality of some video les may be affected by the
systems CPU and GPU decoding abilities. |
|
|
Linux Station |
1. Support installing Ubuntu Kylin via Linux Station. Use your NAS as a
Linux-based PC |
|
2. Download and use a variety of applications from the Ubuntu Software
Center |
|
3. Supports remote desktop to monitor and access Ubuntu
remotely |
|
|
Virtualization Station |
1. Supports Virtual Machine (VM) creation to run operating systems such
as Windows, Linux, Unix and Android |
|
2. Supports VM import and export |
|
3. Supports VM cloning & snapshots |
|
4. Supports VM backup and restore |
|
5. VM console can be displayed via HDMI output -
QVM |
|
6. HTML5-based shared remote console |
|
7. Supports different networking modes via Virtual
Switch |
|
|
Container Station |
1. Supports LXC and Docker |
|
2. Download applications from the built-in Docker Hub
Registry |
|
3. Supports one-click installation, container export/import &
console mode |
|
4. Supports three networking modes (Bridge, NAT and
Host)* |
|
5. Supports auto-start containers |
|
6. Supports downloading Docker certificates |
|
7. Supports adding private registries |
|
*Docker containers are capable of Bridge, NAT and Host mode, while
Linux containers (LXC) support NAT only. |
|
|
Qsirch |
1. Supports full-text search |
|
2. Bar chart to show data distribution |
|
3. Supports previews for photos, music, videos, Gmail, PDF,
etc. |
|
4. Support for using search operators in advanced
search |
|
- Search scope can be specified in advanced search |
|
5. Customized search filters |
|
- Users can include or exclude search conditions in
Filter |
|
- Users can search files by filter conditions |
|
6. Added the ability to suggest related files in
Viewer |
|
7. Supports cloud viewers for previewing document |
|
8. Show search results using thumbnails or a list |
|
9. Supports search Chrome extension |
|
|
iSCSI (IP SAN) |
1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs
combined) |
|
2. Supports LUN mapping & masking |
|
3. Online LUN capacity expansion |
|
4. Support for SPC-3 persistent reservation |
|
5. Supports MPIO & MC/S |
|
6. iSCSI LUN backup, one-time snapshot, and
restoration |
|
7. iSCSI connection and management by QNAP Windows
Qfinder |
|
8. Virtual disk drive (via iSCSI initiator) |
|
9. Stack chaining master |
|
10. Max No. of virtual disk drives: 8 |
|
|
Surveillance Station |
1. Supports over 3,000 IP cameras |
|
2. Includes 4 free camera licenses, up to 72 camera channels by
purchasing additional licenses3 |
|
3. Instant playback to check recent events |
|
4. Visual aid by e-map |
|
5. Playback and speed control using the shuttle
bar |
|
6. Video preview on playback timeline |
|
7. Intelligent video analytics (IVA) for advanced video
searching |
|
8. Surveillance client for Mac |
|
9. Mobile surveillance app: Vmobile (iOS and
Android) |
|
10. Mobile recording app: Vcam (iOS and Android) |
|
|
QVPN Service (Integrated VPN Server, VPN Client and L2TP/IPSec
VPN Services) |
1. VPN Server: Secure remote access with PPTPL2TP/IPSec & OpenVPN
VPN services |
|
2. VPN Server: Up to 100 clients |
|
3. VPN Server: Supports domain users as VPN users |
|
4. VPN Client: Supports PPTP, L2TP/IPSec & OpenVPN VPN
protocols |
|
5. VPN Client: Supports importing .ovpn files to create OpenVPN
connection |
|
|
DLNA Server |
1. Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox
One |
|
2. Support CUE indexing file for APE, FLAC audio
format |
|
|
Qcenter (NAS CMS) |
1. Multiple NAS monitoring |
|
2. Utilization history reports |
|
3. Unified configuration management |
|
4. Visual display reports |
|
5. Monitor NAS behind NAT routers with Qcenter
Assistant |
|
6. Available in the App Center and as a virtual appliance from ESXi and
Hyper-V |
|
|
Qcontactz |
1. One-way scheduled sync of contacts from multiple Google
accounts |
|
2. Import contacts from file: CSV or vCard 3.0 |
|
3. Export contacts into a file: CSV and vCard 3.0 |
|
4. Find duplicate contacts and merge them |
|
5. Snapshot management for your contacts database |
|
6. Manage contacts: Groups, favorite, lock, search, delete &
restore |
|
7. Supported for mobile: Android and iPhone |
|
|
OceanKTV |
1. Use the NAS as a karaoke machine. |
|
2. Play videos from YouTube without needing to download
them. |
|
3. Display songs by artists, languages, and
favorites. |
|
4. Enhance the experience with effects such as tuning echo, key, or
applause |
|
5. Control the playlist with a mobile app. |
|
6. Supports keyboard and remote control
(RM-IR004). |
|
Note: Microphones are not included. |
|
|
Qfinder Pro |
1. Find QNAP NAS that are on the same local network as your
PC. |
|
2. Easily mount NAS shared folders |
|
3. Configure basic settings for the NAS including firmware updates,
setting SMTP server, and changing network settings |
|
4. Supports direct connection with USB QuickAccess and
Thunderbolt |
|
5. Storage Plug & Connect (Windows only) |
|
Create and map NAS shared folders |
|
Create and connect to iSCSI target/LUNs |
|
6. Media Upload (Windows only) |
|
Upload media files to the NAS and automatically create thumbnails or
transcode videos using the PC |
|
Note: Microphones are not included. |
|
|
App Center |
1. Official and community software add-ons |
|
2. Automatically update apps or send notifications of new app
versions |
|
3. App repository to import third-party content |
|
4. Choose what volume to save apps
to |
