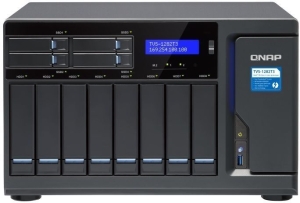

QNAP Systems TVS-1282T3-I7-64G 12-Bay NAS System - Diskless
  • 2.5"/3.5" SSD/HDD(8), 2.5" SSD(4), Intel Core i7-7700(3.6GHz), 64GB-RAM, 512MB-DOM, M.2(2), GigLAN(4), HDMI(3), TB3(4), TWR

IMG 1 of 1
No Longer Available
Part Number:
424692
(?) Brand:
QNAP Systems
Manuf No:
TVS-1282T3-i7-64G
TVS1282T3i764G
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Date Added:
28/11/2017
Details Files Finance Images & Video
All stock codes associated to this product
TVS1282T3i764G, TVS-1282T3-i7-64G, BAQNTVS1282T364G, BAQN-TVS-1282T3-64G

Qnap Systems TVS-1282T3-I7-64G 12-Bay NAS System - Diskless

Exclusively providing a Thunderbolt/NAS/iSCSI SAN triple solution, the TVS-1282T3 features four Thunderbolt 3 ports to enable seamless collaboration between up to four Mac and Windows devices. Coupled with its higher bandwidth to smooth 4K video transfer and online editing, the TVS-1282T3 is a perfect match for Thunderbolt-equipped Mac and Windows users for 4K workflows, file storage and high-speed sharing. The TVS-1282T3 leverages 7thGeneration Intel 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution, providing exceptional performance to fulfill critical tasks.

Features

  • Built-in M.2 SATA 6Gb/s slots & 2.5 SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Four Thunderbolt 3 (40 Gbps) ports and dual 10GbE network for on-the-fly video editing and rapid file sharing
  • Transcodes 4K H.264 videos on-the-fly or offline
  • Four available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
  • Flexible storage expansion with QNAP storage expansion enclosures and Virtual JBOD (VJBOD)
  • Supports QRM+ unified remote server management, Qcenter for centrally managing multiple QNAP NAS, virtual machine and container applications, and storage for virtualization

Note:
1. Requires MacOS Sierra 10.12.3 (or later) for using Thunderbolt connection on Mac.
2. Thunderbolt 3 reaches the maximum theoretical transfer rate of 40 Gigabits per second. Actual performance may vary due to hardware/software limitations and usage environment.
3. Thunderbolt 3 (40 Gbps) doubles its theoretical potential for speed when compared to Thunderbolt 2 (20 Gbps). This results in the TVS-1282T3s file transfer speed increasing from 900 MB/s to 1,600 MB/s.

Thunderbolt 3 NAS, extraordinary performance

Featuring high-performance 7thGeneration Intel processors, the TVS-1282T3 provides three options powered an Intel Core i5 quad-core processor with 16GB DDR4 RAM and Intel Core i7 quad-core processor with 32GB/64GB DDR4 RAM, driving outstanding system performance for CPU-demanding applications. The TVS-1282T3 Thunderbolt 3 NAS not only features Thunderbolt 3 technology for faster data transfer but also has dual 10GbE ports giving you incredible flexibility for network connectivity. The Thunderbolt 3 ports on the TVS-1282T3 are also compatible with USB Type-C cables/devices and supports 10 Gbps USB 3.1 Gen2, allowing compatibility with newer, faster USB external drives/enclosures for transferring large-sized media files.

Note: Thunderbolt cables are sold separately. Thunderbolt 3 (USB-C) to Thunderbolt 2 converters may not be compatible with certain Windows PC models.

Thunderbolt 3 certified cable

Next-generation Thunderbolt 3 delivers bi-directional 20Gbps speed. Use a certified Thunderbolt 3 40Gbps cable (with the Thunderbolt icon and 3) and an SSD RAID5 configuration to enjoy the highest possible performance and the best storage allocation for your NAS.

Note: Please ensure your cable is Thunderbolt 3 certified.

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:

NAS: TVS-1282T3

Intel Core i7-7700 3.60GHz CPU, 32GB RAM, Intel SSDSC2BB240G4 (SATA) x 12, RAID5

Host: MacBook Pro
Intel Core i7 2.9GHz CPU, macOS Sierra Version 10.12.3, 16GB 2133MHz LPDDR3

Host: MSI GS63VR 6RF Stealth Pro (Turbo mode)
Intel Core i7-6700HQ 2.60GHz CPU, Windows 10 64-bit, 32GB RAM

Highly-efficient media collaboration for Mac and Windows

The TVS-1282T3 is a perfect match for Thunderbolt 3-capable MacBook Pro, and is backward-compatible with Mac Pro and iMac featuring Thunderbolt 2 via Thunderbolt 3 (USB-C) to Thunderbolt 2 converter. The higher bandwidth is especially suited for creative professionals and enthusiasts from photographers, filmmakers to graphic designers who focus more on 4K or 3D workflows. The latest Final Cut Pro X 10.3 adds support for SMB protocol, allowing you to easily store files in the TVS-1282T3 and share files with Windows, and other devices using Thunderbolt, 10GbE or 1GbE connection. Up to 4 Thunderbolt devices can connect to the TVS-1282T3 to process real-time video editing simultaneously without impacting NAS performance, while 4K videos can be directly displayed using the TVS-1282T3's HDMI output. Coupled with its large capacity potential, the TVS-1282T3 provides an ideal storage solution with unmatched performance for high-resolution file storage and I/O-intensive tasks to increase productivity in multi-workstation environments.

Advanced hardware for greater efficiency

High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios alongside flexible expansion interface are distinctive cornerstones for realizing optimum performance and diverse applications.

1. 4 x 2.5 SSD slots

Offers flexible configuration in tiered storage and enables cache acceleration.

2. Tool-less HDD tray and installation

2.5" SSD trays and 3.5" hard drive trays feature tool-less design for easy installation and replacement.

3. 2 x built-in M.2 SSD slots

Supports SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors; allows the greatest flexibility in tiered storage configuration and enables cache acceleration.

Note: M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

4. DDR4 2133 MHz memory

Supports four DDR4 memory modules for a maximum of 64GB RAM.

5. 7th Generation Intel Core Processor

The latest 14nm manufacturing technology with faster buses supports DDR4, PCIe Gen.3, and DMI 3.0 to provide higher performance and more efficient data transmission than the previous generation.

6. 4 x Thunderbolt 3 connectors

Thunderbolt 3 provides up to 40 Gbps of bandwidth, allows USB Type-C devices, and supports USB 3.1 Gen2 for up to 10 Gb/s transfer speeds.

7. 2 x 10GBase-T network ports

Allows optimized network traffic distribution with the other four Gigabit Ethernet ports for diverse applications.

8. 4 x Gigabit Ethernet ports

Allows optimized network traffic distribution with the other two 10GbE ports for diverse applications. The Network & Virtual Switch app makes network management much easier.

9. 3 x HDMI outputs

Three HDMI ports support duplicated and extended desktop options.

10. Compartmentalized smart cooling

Separately detects the CPU and hard drive temperatures to dynamically control fan speed and performs quieter fan operations.

11. 3.5mm audio jack

Connect speakers or headphones for direct audio output from the NAS.

12. 2 x built-in speakers

Supports direct audio output and provides verbal system warnings.

M.2 SATA 6Gb/s SSD & 2.5" SSD cache

The TVS-1282T3 provides 4 SSD slots dedicated for caching to increase IOPS performance, and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance, and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-1282T3 combines M.2 SSD, 2.5" SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time.

Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution

The advanced hardware design of TVS-1282T3 can facilitate optimized storage deployment based on different usage scenarios.

Tiered Storage

QNAP's Qtier Technology empowers the TVS-1282T3 with Auto Tiering that helps continuously optimize storage efficiency across M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-1282T3 can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-1282T3 an extremely efficient shared resource. Qtier now supports On Demand Allocation Priority, providing customizable flexibility to arrange tiered storage suited for your system environments and application demands.

Application-based Partitioning

Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-1282T3 supports three different types of storage media: M.2, SSD and SATA hard drives, and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.

Network Traffic Distribution

With four GbE ports and two 10GbE ports, the TVS-1282T3 allows applications to use dedicated interfaces to meet network traffic distribution requirements. Network interfaces can also be easily managed with the Network & Virtual Switch app, which enables optimized network resources for TVS-1282T3, virtual machines and containerized apps. No matter if they are business organizations or individual users, they can effortlessly manage network connections by using the Network & Virtual Switch.

4K HDMI output with a free remote control for an excellent audiovisual experience

The TVS-1282T3 comes with three HDMI ports (4K 30hz output) for using three monitors in either "duplicated" or "extended" desktop configuration*. You can connect the TVS-1282T3 to a HDTV or A/V receiver and use the media player in HybridDesk Station (HD Station) to enjoy rich media content and 4K videos. HD Station supports multi-tasking and user authentication so only authorized users can access the stored data. Besides using the bundled remote control, you can also turn your mobile devices into remote controls by installing the Qremote app to control HD Station. You can customize the actions of individual buttons of your QNAP remote control using QButton. From playing music, to viewing surveillance feeds in Surveillance Station, to shutting down or restarting the NAS, everyday and common tasks can be just a button press away with QButton.

* Linux Station must be installed from the App Center.

Access 10GbE networks over Thunderbolt with Thunderbolt-to-Ethernet (T2E)

As Apple computers do not natively support 10 Gigabit Ethernet, Mac users previously needed to purchase a Thunderbolt-to-Ethernet adapter to connect to high-speed Ethernet networks. The innovative Thunderbolt-to-Ethernet (T2E) allows computers without Ethernet ports (such as MacBook Pro) to access 10GbE network resources over a Thunderbolt connection to the TVS-1282T3. This saves users from having to buy adapters or converters and greatly streamlines the connectivity process.

Note: T2E transmission speed may be affected when using a virtual switch. QNAP aims to continue improving and optimizing T2E performance.

Thunderbolt 3/NAS/iSCSI SAN triple solution

The TVS-1282T3 can simultaneously run general Ethernet services in addition to the Thunderbolt 3 network, completely independently and with no bandwidth interference. As an unmatched NAS that combines Thunderbolt, NAS and iSCSI SAN into one box, the TVS-1282T3 prevents the restriction of DAS connecting to only one device, and breaks the cost barrier for creating 10GbE high-speed network environments.

Thunderbolt NAS mode

You can directly access files on the TVS-1282T3 on a file-based level. Simply attach your computer to the TVS-1282T3 with a Thunderbolt 3 cable, and you will find the TVS-1282T3 in Finder/File Explorer with accessible shared folders available for you. It is plug-and-use, and completely simple.

Ethernet NAS mode

The TVS-1282T3 also features Ethernet networking for flexible file sharing across multiple devices simultaneously using SMB/CIFS, AFP and NFS for sharing across Windows, Mac and Linux/UNIX networks. Use Qfinder Pro to find the TVS-1282T3 attached to your computer, and you can find the Thunderbolt IP and Ethernet IP for file sharing based on your needs.

iSCSI SAN block-based mode

The TVS-1282T3 supports iSCSI SAN configuration, while the Thunderbolt interface can contribute a lot to iSCSI SAN storage performance. After creating an iSCSI target on the TVS-1282T3, you can access the iSCSI with your computer* through Thunderbolt IP.

*iSCSI initiator for Mac: ATTO Xtend SAN or SNS globalSAN; for Windows: Microsoft iSCSI initiator.

Flexibly attach, share, and expand in 4 ways

With four Thunderbolt 3 ports on the TVS-1282T3, you can flexibly arrange the connection of your computer workstations with the TVS-1282T3 and its storage expansion enclosures based on your needs.

High accessibility (Mac+JBOD)

Attach three Mac workstations to the TVS-1282T3 via Thunderbolt 3 ports for online video editing, while the remaining Thunderbolt 3 port is used for storage expansion by connecting up to six NAS expansion enclosures (TX-500P / TX-800P). You can also take advantage of the built-in 10GbE LAN card for multi-device file sharing over a 10GbE network at the same time.

Optimal collaboration (Mac+Mac)

When using multiple workstations to work together to speed up a project, you can connect each workstation separately to the Thunderbolt 3 ports on the TVS-1282T3 to enjoy simultaneous, speedy video editing.

Dividing resources (Mac+NAS)

Large-sized video production studios often require multiple servers to increase productivity with different workflow stages, such as capturing, editing, production, post-production, and dubbing. In this situation it can be helpful to daisy chain an additional 6 TVS-1282T3 units to the original TVS-1282T3 and arrange each NAS for dedicated workflow stages, while the other Thunderbolt 3 ports are connected to the workstations for smoothly accessing large-sized video files. Meanwhile, each TVS-1282T3 allows file sharing with multiple devices through Gigabit or 10 Gigabit Ethernet network.

Seamless expansion (JBOD+JBOD)

Rest assured your massive files are safely stored in the TVS-1282T3 which supports seamless capacity expansion to offer you abundant storage. You can connect up to six NAS expansion enclosures (TX-500P / TX-800P) to the TVS-1282T3 through Thunderbolt 3 ports to enjoy up to 56 SSD/HDD total storage capacity, and share files via 10GbE network.

A feature-rich NAS with QTS operating system

QTS simple, powerful & intelligent

The intuitive QTS features a modern flat design to help you manage QNAP NAS easily. QTS provides an intelligent desktop, graphical dashboard, drag-n-drop icons and grouped shortcuts to make storage and file management extremely simple. You can even open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency. The built-in App Center contains install-on-demand apps to provide potentially limitless potential for the NAS.

QRM+: Centralized management solution for networked computing devices

QRM+ is QNAP's Centralized Management Solution, designed for IT teams, for networked computing devices. It provides a single-point solution to discover, map, monitor and manage all of the critical computing devices (including servers, PCs, and thin clients) in your network, and facilitates device discovery with the graphical topology diagram. QRM+ supports IPMI 2.0, provides remote KVM (Keyboard, Video, Mouse) for certain IPMI devices, and supports tracking every action using KVM recording and playback. Simply install QRMAgent on your Windows and Linux devices and you will see their system status on the QRM+ management interface. With centralized management using QRM+ on the TVS-1282T3, IT infrastructure and device security is enhanced while troubleshooting and network resource performance analysis is greatly simplified.

Integrated virtualization and container solutions

Virtualization Station allows you to host virtual machines (VM) on the TVS-1282T3 and access them via a web browser or VNC. It supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, and Device Management for centrally managing VMs. The TVS-1282T3 also features Container Station, integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the NAS as well as download apps from the built-in Docker Hub Registry. Containers Station also supports the QIoT Containers platform that helps quickly structure your IoT environment and deployment on your private IoT cloud.

Storage for comprehensive virtualization applications

The TVS-1282T3 is a comprehensive iSCSI/IP-SAN storage solution, and supports VMware, Citrix, Microsoft Hyper-V and Windows Server 2012 R2, benefiting flexible deployment and management in virtualization environments. The TVS-1282T3 supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Fast data filing and searching to double your productivity

The TVS-1282T3 provides Qfiling and Qsirch for effortlessly organizing and searching for files, providing you with a highly-efficient data storage center. Qfiling automates file organization - simply determine filing conditions, set a schedule, and files will be organized and archived based on your settings. The Qsirch full-text search tool features quick file searching and supports thumbnail previews, content abstract, keyword hints, and more, greatly saving your time spent looking for files on the NAS.

Centralized email and contact management for improved communication workflows

It can be hard to manage emails and contact information that are scattered across multiple computers, devices, and accounts - not to mention if important emails or contact information are lost or become inaccessible due to account closure or device malfunction/loss. QmailAgent and Qcontactz help you centrally store and manage emails and contact information, making them accessible to all of your devices at any time - and with the powerful Qsirch search engine, you can easily find specific contacts and emails whenever needed.

Comprehensive security

QNAP's full NAS encryption by volume-based technology effectively ensures data security by encrypting all of the files stored in the default shared folders on the TVS-1282T3. Besides AES 256-bit encryption for both volumes and shared folders, the TVS-1282T3 also provides numerous security options, such as antivirus, encrypted access, IP blocking, 2-step verification, and more.

Well-rounded backup & disaster recovery

The TVS-1282T3 offers flexible backup solutions for Windows and Mac users, Volume/LUN snapshots (block-based LUN* and file-based LUN), Folder snapshot, Snapshot Replica and Clone. It also supports Hybrid Backup Sync that consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

* Up to 256 snapshots per volume or LUN, and a maximum 1,024 snapshots per NAS. It is recommended to use block-based LUN snapshots.

Flexible storage expansion

VJBOD: Achieve optimal capacity utilization across multiple QNAP NAS

The TVS-1282T3 supports capacity expansion by connecting up to six Thunderbolt storage expansion enclosures. You can gradually expand the TVS-1282T3's storage on demand, and use the QTS Storage Manager to easily handle the NAS capacity expansion and storage expansion enclosure management.

The maximum number of drives available by connecting QNAP expansion enclosures:

QNAP NAS Model Expansion Enclosure No. of Expansion Enclosures Total HDD No. (NAS + Enclosure)
TVS-1282T3 TX-800P* 6 56
5 48
4 40
3 32
2 24
1 16
TX-500P* 6 38
5 33
4 28
3 23
2 18
1 13

*Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter is required for connecting Thunderbolt 2 expansion enclosures.

VJBOD: Achieve optimal capacity utilization across multiple QNAP NAS

Besides using physical storage expansion enclosures, there is an additional option to expand NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand the storage capacity of a QNAP NAS with unused storage space from other QNAP NAS. You can mount iSCSI LUNs from a QNAP NAS to the TVS-1282T3 as local disks, and create virtual storage pools and volumes for operating NAS services. VJBOD supports 10GbE/40GbE Ethernet connection interface and port trunking (link aggregation with multiple LAN ports) that increase the performance and reliability of your VJBOD storage.

*QNAP NAS used with VJBOD must support iSCSI and Storage Pools and use QTS 4.2.1 (or later). Up to 8 remote NAS units can be mounted.

Specifications

Hardware

Ordering P/N

TVS-1282T3-i7-64G

CPU

TVS-1282T3-i7-64G

Intel Core i7-7700 3.6 GHz quad-core processor

System memory :

TVS-1282T3-i7-64G

Total DIMM slots

4

System memory

64GB DDR4 RAM

Memory modules pre-installed

16 GB x4

Flash Memory

512MB DOM

M.2 Slot

2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD

Note:

1. The M.2 SSD is not included as standard.

2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (fromQNAPor a third-party provider) on the M.2 SSD.

Hard Drive Tray

4 x 2.5" SSD

8 x 2.5"/3.5" hard drive or SSD

Drive Interface

SATA 6Gbps/3Gbps; Hot-swappable

Thunderbolt Port

4 x Thunderbolt 3 high-speed port

USB

1 x USB 3.0 port (Front)

4 x USB 3.0 port (Rear)

LAN Port

2 x 10GBase-T port

4 x GbE port

HDMI Output

3

Audio Input

Audio In: 2 x 6.3mm MIC In

Audio Output

2 x built-in speaker, 1 x 3.5mm Line-out jack

Note:Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.

LED Indicators

System status, 2.5" SSD, M.2 SSD, 3.5" HDD

Buttons

System: Power button, Reset button, USB one-touch-backup button

System Warning

Buzzer

Form Factor

Tower

Dimensions

234.6 x 369.9 x 319.8 mm

9.23 x 14.56 x 12.59 inch

Weight

Net (NAS only): 11.55kg/ 25.46 lb

Gross (with packing and accessories): 13.65 kg/ 30.09 lb

Sound Level (dB)*

Sound pressure (LpAm) (bystander position): 21.6 dB

(with 8 x Seagate ST2000VN000-1HJ164 hard drive installed)

Temperature

0-40°C

Relative Humidity

5~95% non-condensing, wet bulb: 27°C

Power Supply

Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W

PCIe Slot

3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4)

Note:Three PCle slots are occupied by two Thunderbolt 3 cards and a 10GbE adapter.

Fan

System: 3 x 8 cm cooling fan

CPU: 2 x 9 cm fan

Software

Operating System

QTS 4.3 (embedded Linux)

Supported Client OS

1. Windows 7, Windows 8, Windows 10, Windows Server 2003/2008 R2/2012/2012R2

2. Apple Mac OS 10.7+

3. Linux & UNIX

Supported Browsers

1. Microsoft Internet Explorer 10+

2. Google Chrome

3. Apple Safari 7+

4. Mozilla Firefox

Multilingual Support

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

File System

1. Internal Hard Drive: EXT4

2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+, exFAT*

*exFAT is optional purchased by App Center

Networking

1. TCP/IP (IPv4 & IPv6: Dual Stack)1

2. Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)

3. Service binding based on network interfaces

4. Squid Proxy server

5. Proxy client

6. DHCP client, DHCP server

7. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

8. UPnP & Bonjour Discovery

9. USB Wi-Fi Adapter Support

Network & Virtual Switch

1. TCP/IP (IPv4 & IPv6: Dual Stack)1

2. Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)

3. DHCP client, DHCP server

4. USB Wi-Fi Adapter Support**

5. Virtual Switch

Supports editing the Virtual Switches in Virtualization station.

Supports combining virtual machines and containers to the same Virtual Switch.

Supports NAT (Network Address Translation).

Supports STP (Spanning Tree Protocol).

Supports Thunderbolt to Ethernet converter.

6. WirelessAP Station

Security

1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP

2. CIFS host access control for shared folders

3. FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption2

4. AES 256-bit external drive encryption2

5. Importable SSL certificates. Supports certificates from Lets Encrypt.

6. Instant alerts via email, SMS, beep, push service, and LCD panel3

7. 2-step verification

Web Administration

1. Multi-window, multi-tasking based system management

2. Smart toolbar and dashboard for neat system status display

3. Dynamic DNS (DDNS)

4. SNMP (v2 & v3)

5. Resource monitor

6. Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station

- Automatic Cleanup

- File Type Filter

7. Comprehensive logs (events & connection)

8. Syslog client/server

9. System settings backup and restore

10. Mobile app: Qmanager for remote system monitoring & management

Powerful All-in-one server

File Server

1. File sharing across Windows, Mac, and Linux/UNIX

2. Microsoft networking

3. Windows ACL

4. Advanced folder permissions for CIFS/SMB, AFP, FTP

5. Shared folder aggregation (CIFS/SMB)

FTP Server

1. FTP over SSL/TLS (Explicit)

2. FXP support

File Station

1. Supports mounting cloud drives (such as Google Drive, Dropbox, Microsoft OneDrive, Microsoft OneDrive for Business, HiDrive, Amazon Cloud Drive, Yandex Disk and Box).

2. Supports mounting remote shared folders through FTP, WebDAV or Microsoft networking (SMB/CIFS)

3. Supports opening documents via Office Online, Google Docs or Chrome Extension (Edit Office files in Google Docs, Sheets, and Slides)

4. Supports ISO Mounting (Up to 256 ISO Files)

5. Supports sharing download links and upload links

6. Drag-n-drop Files via Chrome and Firefox Browsers

7. Photo, music, and video preview and playback with hardware-accelerated transcoding3

8. File Compression (ZIP or 7z)

9. File Compression (ZIP or 7z)

10. Creation of and sending download links for sharing public files with expiration date and password protection

11. Supports displaying subtitles (*.SRT, UTF-8 format)

- Video seeking support for video playback during on-the-fly transcoding3

- Supports slideshow playback in media viewer

12. Mobile App: Qfile for file browsing and management

Qfiling

1. Supports auto filing

2. Support recipe function

3. Support iSCSI, USB, DVD and remote NAS as archiving devices

4. Support advanced settings

- Delete original files

- Intelligent subtitle filing for videos

- Data integrity check

- File conflict policy

* Supported models: x86-based QNAP NAS with at least 2GB RAM.

Transcode Management

1. Transcode video files to 240p, 360p, 480p, 720p and 1080p resolution

2. Automatic video transcoding for watched folders

3. Hardware accelerated transcoding support3

4. Embed subtitles into videos for background transcoding

Hybrid Backup Sync

1. Support for Amazon S3, Amazon Glacier, Microsoft Azure, Google Cloud Storage, Openstack Swift, and WebDAV

2. Syncing with Microsoft OneDrive, Google Drive, Dropbox, Amazon Drive, Yandex Disk, Box, and hubiC

3. Works as both RTRR server & client with bandwidth control

4. Rsync server functionality with download bandwidth control

5. Syncing with remote servers through RTRR, Rsync, FTP, and CIFS/SMB

6. Scheduled backup to local and remote storage spaces

7. Backup versioning for RTRR

8. Encryption, compression, and file filters

9. Centralized management for backup, restoration, and sync jobs

10. Support for Apple Time Machine

11. Data backup to multiple external storage devices

12. Desktop backup with QNAP NetBak Replicator for Windows

13. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, Retrospect, Backup Exec, etc.

Cloud Drive Sync

1. Multiple cloud account management like Google Drive, Dropbox, OneDrive, and hubiC

2. Supports multiple cloud accounts

3. Manual, scheduled, periodic and continuous sync

4. Flexible file filtering using type, date, and size

5. SSL transfer encryption

6. Dashboard and job statistics

7. Configurable network error recovery options

8. Extensive job activity logging for tracing history of status and statistics

9. Concurrent job execution and multi-threaded data transfer

10. Per-account bandwidth throttling

Cloud Backup Station

1. S3 Plus (including Amazon S3)

2. Amazon Glacier

3. Google Cloud Storage

4. WebDAV-based cloud storage

5. Microsoft Azure

6. OpenStack Swift

Print Server

1. Max number of printers: 3

2. Supports Internet Printing Protocol

3. Print job display and management

4. IP-based and domain name-based privilege control

Photo Station

1. Show photos by thumbnails, list, timeline, or folder view

2. Supports virtual/smart albums

3. Validity control for sharing albums

4. Tag photos with text, colors, and ratings

5. Slideshows with background music and different transition effects

6. Geotag photos and display them on Google maps

7. Supports uploading photos/videos to Picasa, Flickr, and Weibo.

8. Backup/Restore album configurations.

9. Supports advanced folder permission

10. Supports domain users

11. Photo Station Extension: Supports face detection and PDF to image (available for x86-based models).

12. Mobile app: Qphoto for online browsing and sharing.

Music Station

1. Play or share music via web browser

2. Supports streaming music to multiple devices.

3. Supports changing album covers via Google search or by uploading photos.

4. Internet radio (MP3)

5. Up to 8 music alarms

6. Mobile app: Qmusic for music streaming and management

7. Switch between spotlight mode and manage mode.

8. Supports advanced search.

9. Supports scrolling lyrics.

iTunes Server

1. Audio and video sharing for Windows & Mac iTunes

Video Station

1. Show photos by thumbnails, list, timeline, or folder view

2. Supports virtual/smart collections

3. Tag videos with text, color, and ratings

4. Share video links to social websites or through email

5. Display movie information and posters from Internet sources or user-uploaded files

6. Supports displaying subtitles (*.SRT,*.ASS, *.SSA)

7. Supports online searching and downloading of subtitles as well as importing subtitle files

8. Supports adjusting the display style of subtitles

9. Supports Facebook friends login

10. Supports advanced search.

11. Supports advanced folder permission settings.

12. Supports LDAP users.

13. Videos can be uploaded to YouTube and Youku.

14. Supports multi-zone video display

15. Video seeking support for video playback during on-the-fly transcoding3

16. Mobile app: Qvideo for online video browsing and management

AirPlay & Chromecast

1. Streams videos, photos and music from NAS to Apple TV or Chromecast via File Station, Music Station, Photo Station, Video Station or mobile app (Qfile, Qmusic, Qphoto or Qvideo).

Note: The Media Streaming add-on app must be installed from the QTS App Center.

Download Station

1. PC-less BT, FTP/FTPS, and HTTP/HTTPS, Thunder, FlashGet and qqdl download (up to 500 Tasks)

- The maximum number of concurrent downloads: 90 (30 BT/PT, 30 HTTP, 30FTP downloads)

2. BT download with search, Magnet Link and PT support

3. Supports add-ons to expand download functionality.

4. Scheduled download and bandwidth control

5. RSS subscription and download (broadcatching)

6. Proxy support for BT download

7. Mobile app: Qget for downloads browsing and management

Storage Management

1. Storage Space Utilization monitoring

2. QNAP flexible Volume/LUN with thin provisioning and space reclaim3

3. Disk volume types: RAID 0,1, 5, 6, 10, + hot spare, JBOD single

4. Supports storage pools

5. Supports Qtier Technology (Auto Tiering, 8GB System RAM and SSD drives are required)

6. Supports snapshots (4GB System RAM required)3

- Supports Volume/LUN snapshot

- Snapshot manager

- Snapshot clone

- Snapshot vault

- Snapshot replica

- Snapshot agent for Microsoft Windows and VMware vSphere

7. Online volume expansion

8. Online storage pool expansion

9. Online RAID capacity expansion and online RAID level migration

10. SMART data migration

11. Storage expansion via QNAP UX-500P/UX-800P expansion units3

12. JBOD enclosure roaming

13. SSD read-only/read-write cache

14. Bad block scan and hard drive S.M.A.R.T.

15. Bad block recovery & RAID recovery

16. Bitmap support

Power Management

1. Wake on LAN

2. Internal hard drive standby mode

3. Scheduled power on/off

4. Automatic power on after power recovery

5. USB and network UPS support with SNMP management

Access Right Management

1. Batch users creation

2. Import/Export users

3. User quota management

4. Local user access control for CIFS, AFP, FTP, and WebDAV

5. Application access control for Photo Station, Music Station, Video Station, and File Station

6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station

Domain Authentication Integration

1. Microsoft Active Directory (AD) & Domain Controller support

2. LDAP server, LDAP client

3. Domain users login via CIFS/SMB, AFP, FTP, and File Station

myQNAPcloud Service

1. Private cloud storage and sharing

2. Free host name registration (DDNS)

3. Optional myQNAPcloud SSL certificates (DDNS)

4. Auto router configuration (via UPnP)

5. Web-based file manager with HTTPS 2048-bit encryption

6. CloudLink for remote access without any complicated router setup

7. myQNAPcloud connect for easy VPN connection (Windows VPN utility)

Qsync

1. Sync files across multiple devices with SSL secure connection

2. Selective synchronization for only syncing specific folders

3. Use team folders as a file center for greater team collaboration (maximum sync tasks: x86:32, ARM:5)

4. Shares files by links via e-mail

5. Policy settings for conflicting files and file type filter support

6. Version control: up to 64 versions.

7. Unified privilege management

8. Unified configuration management

9. Supports central configuration mode

10. Supports remote erase/restore

11. Supports shared folders sync

12. Supports Windows & Mac OS

Resource Monitor

1. Monitor NAS system resources including CPU, memory and network.

2. Monitor NAS storage resources including volumes, RAID, and disk activity.

3. Monitor the resource usage of NAS applications.

4. An extra swap space will be created if SSD is added to the NAS. Swap space on SSDs is prioritized over swap space on HDDs because of the greater speeds of SSDs.

Helpdesk

1. Report issues to the QNAP support team, with automatically-collected system information.

2. Allows QNAP support engineers to remotely connect to the NAS to fix issues (with user permission).

Notes Station

1. New user interface

2. New collaborative editor for multi-user text editing.

3. New spreadsheet editor for creating tables.

4. Online quick preview of multimedia attachments

5. Smart snapshot for version control

6. Full site backup for admin user - coming soon.

HD (HybridDesk) Station 3.13

1. Use the NAS as a HTPC.

2. Enjoy videos, music, photos on TV via HDMI

3. Web browsers (Chrome, Firefox)

4. Supports international keyboards, input and mouse

5. Supports user login permissions

Note: The playback and quality of some video les may be affected by the systems CPU and GPU decoding abilities.

Linux Station

1. Support installing Ubuntu Kylin via Linux Station. Use your NAS as a Linux-based PC.

2. Download and use a variety of applications from the Ubuntu Software Center.

3. Supports remote desktop to monitor and access Ubuntu remotely.

4. An open source software platform for developers.

Note: The NAS requires at least 4GB RAM and Container Station must be installed.

Virtualization Station3

1. Supports Virtual Machine (VM) creation to run operating systems such as Windows, Linux, Unix and Android

2. Supports VM import and export

3. Supports VM cloning & snapshots

4. Supports VM backup and restore

5. VM console can be displayed via HDMI output - QVM

6. HTML5-based shared remote console

7. Supports different networking modes via Virtual Switch

Container Station

1. Supports LXC and Docker

2. Download applications from the built-in Docker Hub Registry

3. Supports one-click installation, container export/import & console mode

4. Supports three networking modes (Bridge, NAT and Host)*

5. Supports auto-start containers

6. Supports downloading Docker certificates

7. Supports adding private registries

8. Added an application repository for users to switch to any repository on GitHub.com.

*Docker containers are capable of Bridge, NAT and Host mode, while Linux containers (LXC) support NAT only.

Qsirch

1. Supports full-text search

2. Bar chart to show data distribution

3. Supports previews for photos, music, videos, Gmail, PDF .etc

4. Support for using search operators in advanced search.

- Search scope can be specified in advanced search.

5. Customized search filters

- Users can include or exclude search conditions in Filter.

- Users can search files by filter conditions.

6. Added the ability to suggest related files in Viewer.

7. Supports cloud viewers for previewing document.

8. Show search results using thumbnails or a list

9. Supports search Chrome extension

iSCSI (IP SAN)

1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)

2. Supports LUN mapping & masking

3. Online LUN capacity expansion

4. Support for SPC-3 persistent reservation

5. Supports MPIO & MC/S

6. iSCSI LUN backup, one-time snapshot, and restoration

7. iSCSI connection and management by QNAP Windows Qfinder

8. Virtual disk drive (via iSCSI initiator)

9. Stack chaining master

10. Max No. of virtual disk drives: 8

Surveillance Station

1. Supports over 3,000 IP cameras

2. Includes 8 free camera licenses, up to 80 camera channels by purchasing additional licenses3

3. Instant playback to check recent events

4. Visual aid by e-map

5. Playback and speed control using the shuttle bar

6. Video preview on playback timeline

7. Intelligent video analytics (IVA) for advanced video searching

8. Surveillance client for Mac

9. Mobile surveillance app: Vmobile (iOS and Android)

10. Mobile recording app: Vcam (iOS and Android)

QVPN Service
(Integrated VPN Server, VPN Client and L2TP/IPSec VPN Services)

1. VPN Server: Secure remote access with PPTPL2TP/IPSec & OpenVPN VPN services

2. VPN Server: Up to 100 clients.

3. VPN Server: Supports domain users as VPN users.

4. VPN Client: Supports PPTP, L2TP/IPSec & OpenVPN VPN protocols.

5. VPN Client: Supports importing .ovpn files to create OpenVPN connection.

DLNA Server

1. Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One

2. Support CUE indexing file for APE, FLAC audio format.

3. Video and Audio On-the-y Transcoding3

Qcenter (NAS CMS)

1. Multiple NAS monitoring

2. Utilization history reports

3. Unified configuration management

4. Visual display reports

5. Monitor NAS behind NAT routers with Qcenter Assistant

6. Available in the App Center and also as virtual appliance from ESXi and Hyper-V

OceanKTV

1. Use the NAS as a karaoke machine.

2. Play videos from YouTube without needing to download them.

3. Display songs by artists, languages, and favorites.

4. Enhance the experience with effects such as tuning echo, key, or applause

5. Control the playlist with a mobile app.

6. Supports keyboard and remote control (RM-IR004).

Note: Microphones are not included.

Qfinder Pro

1. Find QNAP NAS that are on the same local network as your PC.

2. Easily mount NAS shared folders.

3. Configure basic settings for the NAS including firmware updates, setting SMTP server, and changing network settings.

4. Supports direct connection with USB QuickAccess and Thunderbolt (specific models only).

5. Storage Plug & Connect (Windows only).

- Create and map NAS shared folders.

- Create and connect to iSCSI target/LUNs.

6. Media Upload (Windows only).

- Upload media files to the NAS and automatically create thumbnails or transcode videos using the PC.

App Center

1. Official and community software add-ons

2. Automatically update apps or send notifications of new app versions.

3. App repository to import third-party content.

4. Choose what volume to save apps to.

Qcontactz

1. One-way scheduled sync of contacts from multiple Google accounts

2. Import contacts from file: CSV or vCard 3.0

3. Export contacts into a file: CSV and vCard 3.0

4. Find duplicate contacts and merge them

5. Snapshot management for your contacts database

6. Manage contacts: Groups, favorite, lock, search, delete & restore

7. Supported for mobile: Android and iPhone

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 2 | TM: 2 | LM: 18 | TY: 214 | T: 7537

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
