All stock codes associated to this product
PV3200PT, 3582147, 4718755063077
Benq PV3200PT 32" UHD Colour Accurate Monitor - Black
Features
- 32”W Large Screen 3840x2160 UHD Resolution
- 100% Rec. 709 with IPS Technology
- Hardware Calibration with Accuracy Color
Accurate Colors You Can Count On
Designed to meet high demands of imaging professionals, BenQ PV3200PT
Technicolor Color Certified to ensure reliable digital color rendering on
screen. Uncompromising Rec. 709, color performance and powerful calibration
tools make the PV3200PT ideal for video post-production.
Outstanding Color Accuracy and Resolution

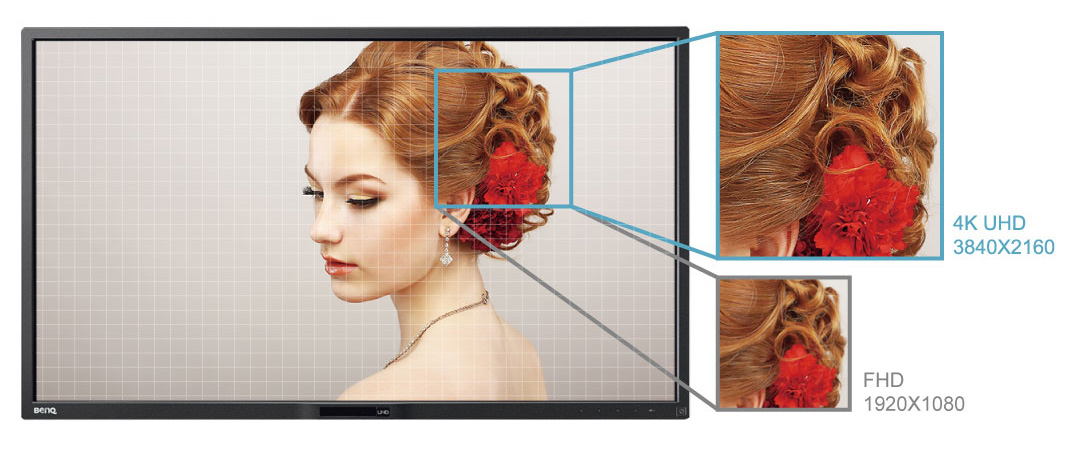

4K UHD Monitor
With four times the resolution of Full HD displays, 4K UHD resolution
delivers extraordinary clarity of fine details and textures for visually
intensive work with the most perceptible quality in graphics, designs, and
photos that human eyes can see.
Devoted to meet the latest professional color standard, BenQ has developed
AQCOLOR technology to uphold the concept: Accurate Reproduction". BenQ has
invited a color expert to lead the team, and also actively participated in ICC
(International Color Consortium) and ISO (International Standard Organization)
to establish color-related standards and implementation.

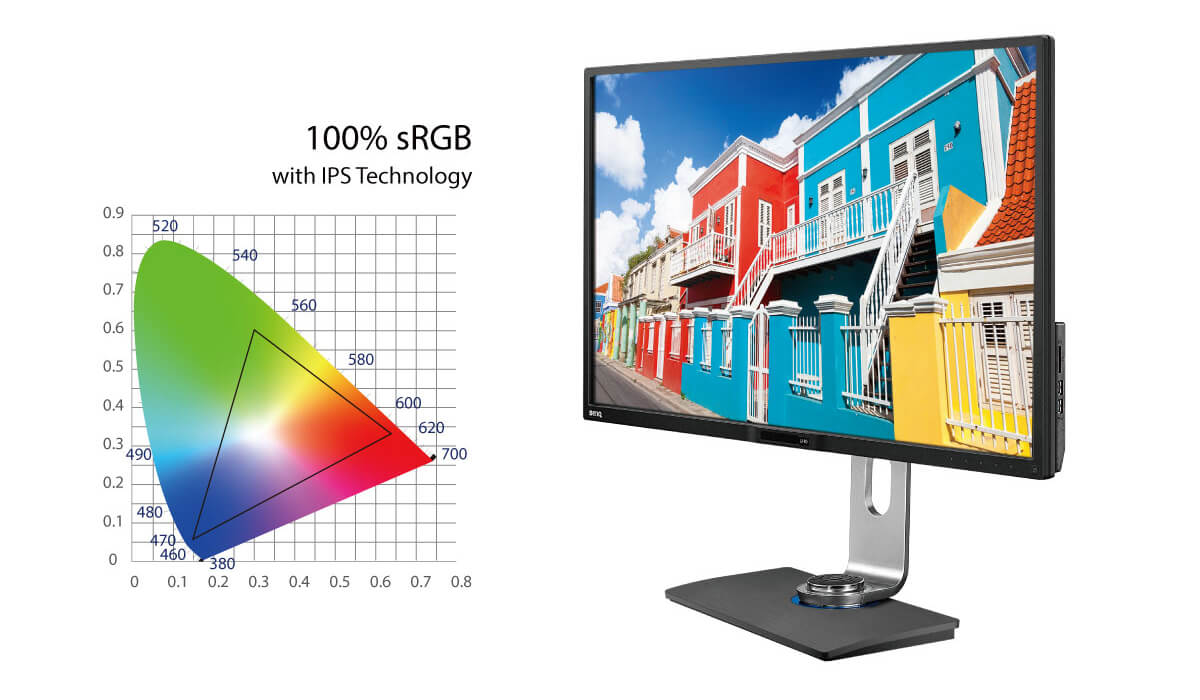

100% Rec. 709, and sRGB Color Gamut
PV3200PT provides 100% Rec. 709 and sRGB, ensuring accurate output for
high-definition television, digital cinema, and professional graphic arts to
perfectly match the intended original colors.

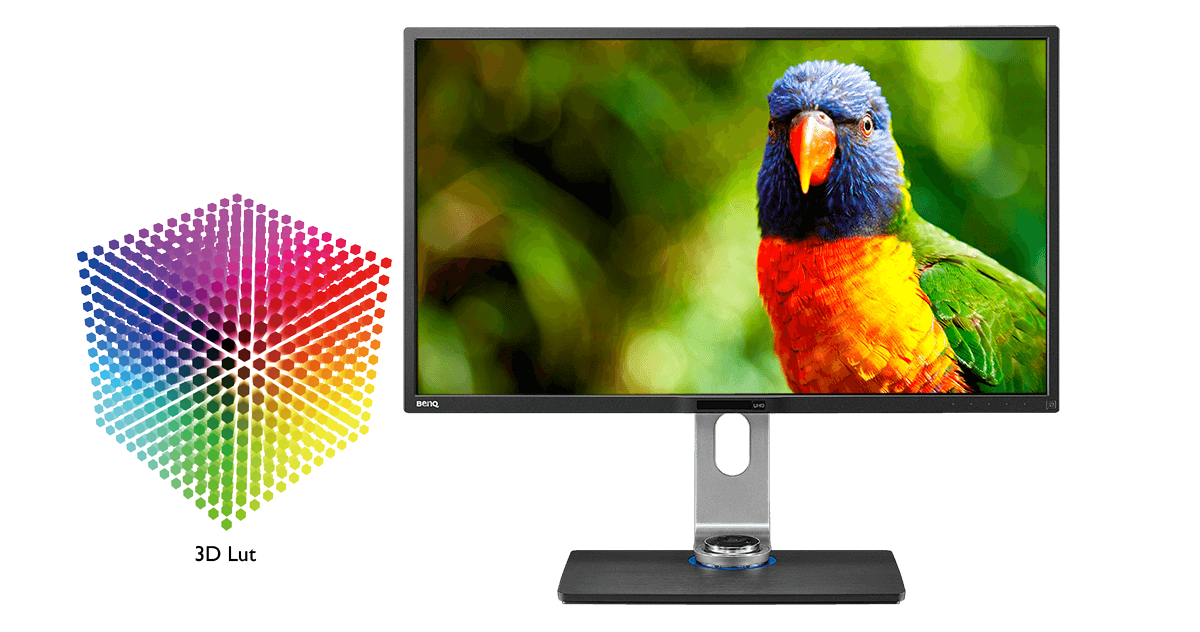

14-Bit 3D LUT and Delta E = 2
The 14-bit 3D look up table (LUT) improves RGB color blending accuracy,
resulting in impeccable color reproduction. Precise Delta E2 in both Rec. 709
and sRGB color spaces renders the truest and most representative view of the
original image.

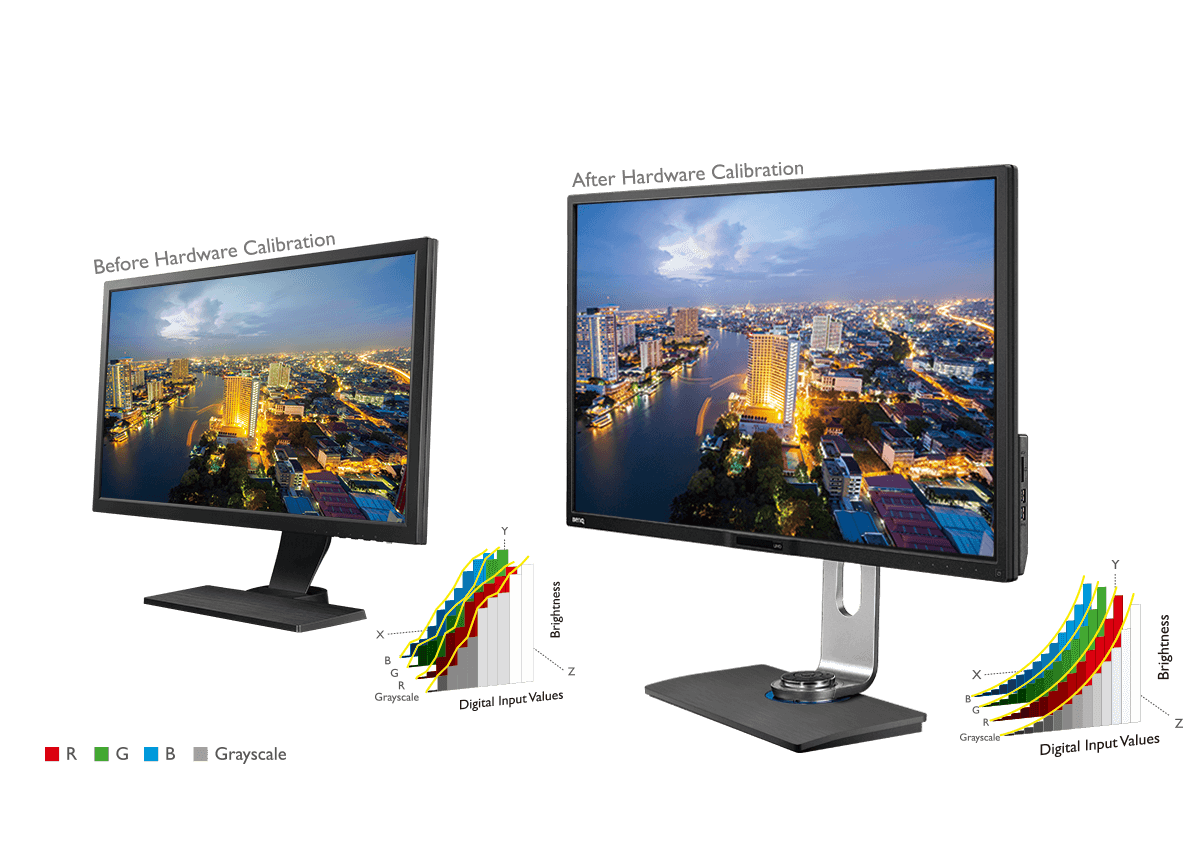

Hardware Calibration Produces Consistent Quality
Hardware calibration allows you to adjust the monitor's internal image
processing chip without changing the graphics card output data, keeping
displayed images consistent with the original content without being affected by
graphic settings.

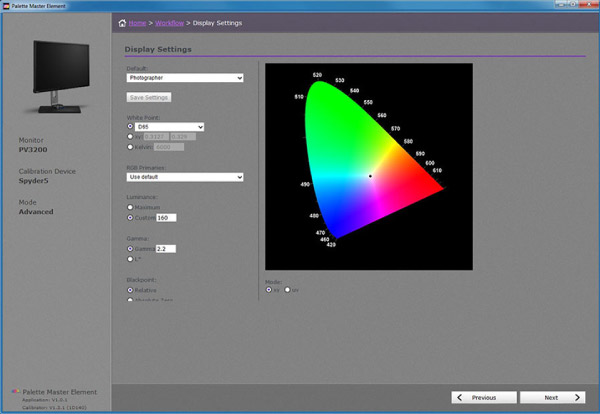

Palette Master Element Calibration Software Regulates
Performance
By using Palette Master Element and a calibrator, you can tune and maintain
the monitor's color performance at its most optimal state.
- Calibrator purchased separately
- Supported Platforms: Win7 or above, Mac OS 10.6.8 or above
- Supported Calibrators: X-Rite i1 Display Pro / i1 Pro / i1 Pro 2 &
Datacolor Spyder 4 / Spyder 5

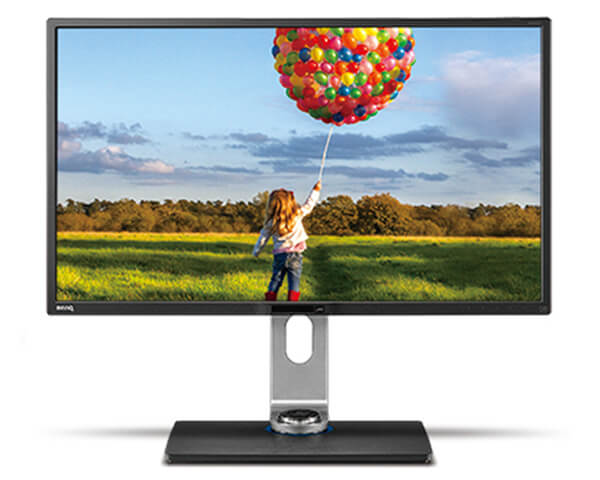

Brightness Uniformity
Achieved via delicate processes utilizing high precision apparatus to
meticulously fine-tune hundreds of sub-regions on the entire screen, BenQ
Brightness Uniformity offers perfectly authentic and consistent viewing
experiences.

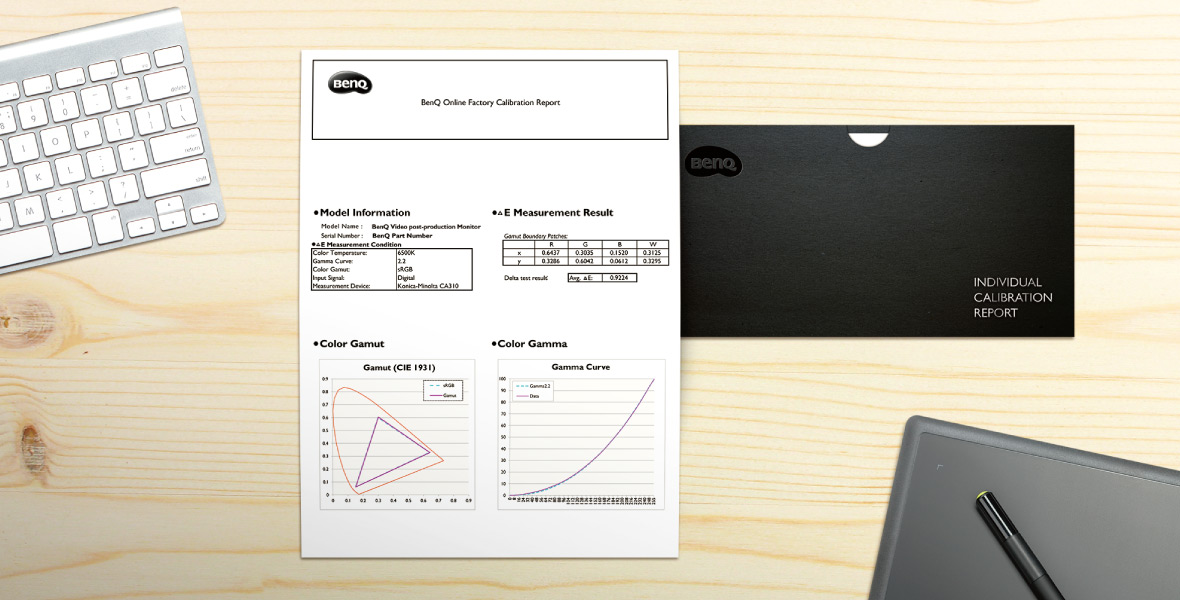

Professionally Factory Calibrated for Exacting Color
Accuracy
Each BenQ Video Post-Production Monitor is individually factory-calibrated
upon production to assure precise Delta-E and Gamma performance. Achieving an
average Delta E2 in sRGB and Rec.709 color spaces, calibration results are
validated against industry color standards to deliver the truest and most
representative view of original content.
*Calibration eliminates slight color performance variations between
individual panels of the same model. Therefore, the calibration data of each
report will vary slightly from reports from other displays of the same
model.

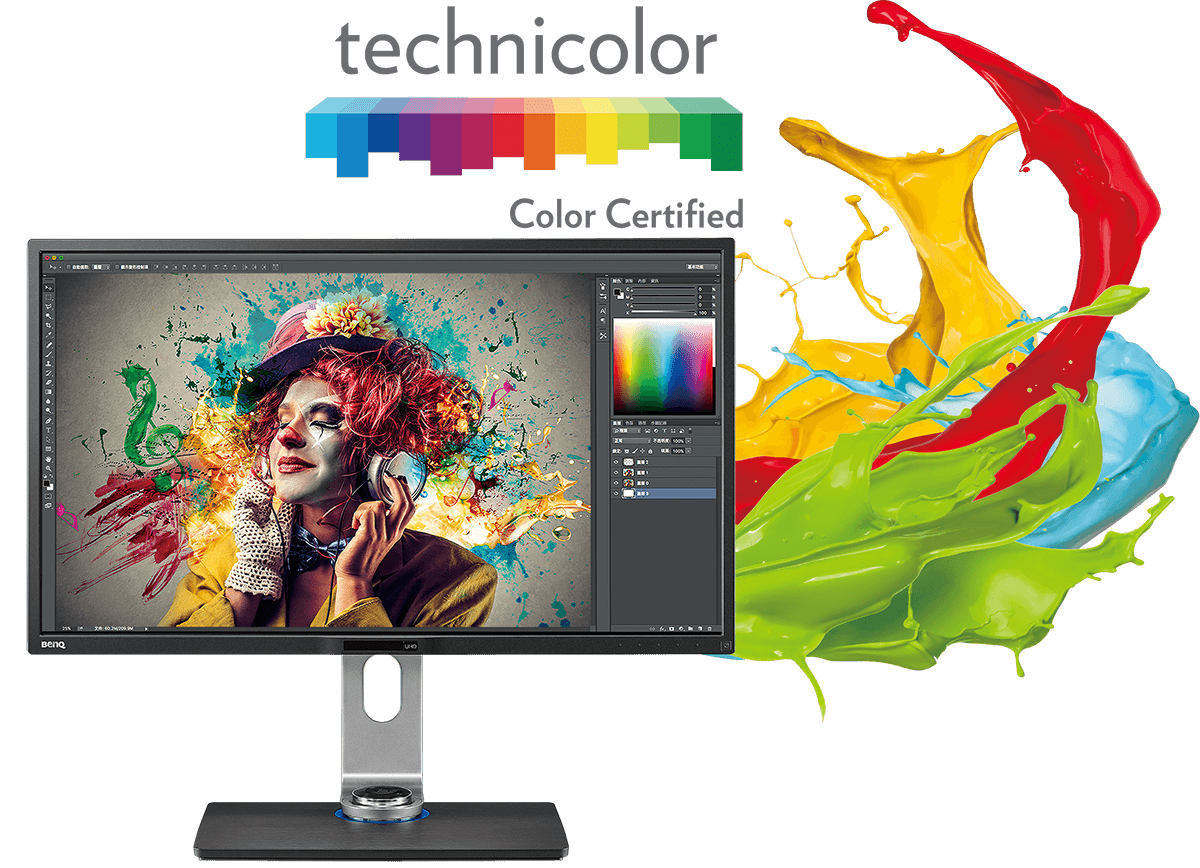

Technicolor Color Certified
Technicolor Color Certification meets strict color standards widely used in
Hollywood and entertainment industries. BenQ Video Post-Production Monitors are
Technicolor Color Certified, ensuring consistent and accurate colors for
impressive performance in broadcast, film, animation, and entertainment
applications.
Work Efficiently and Comfortably with Intuitive Design

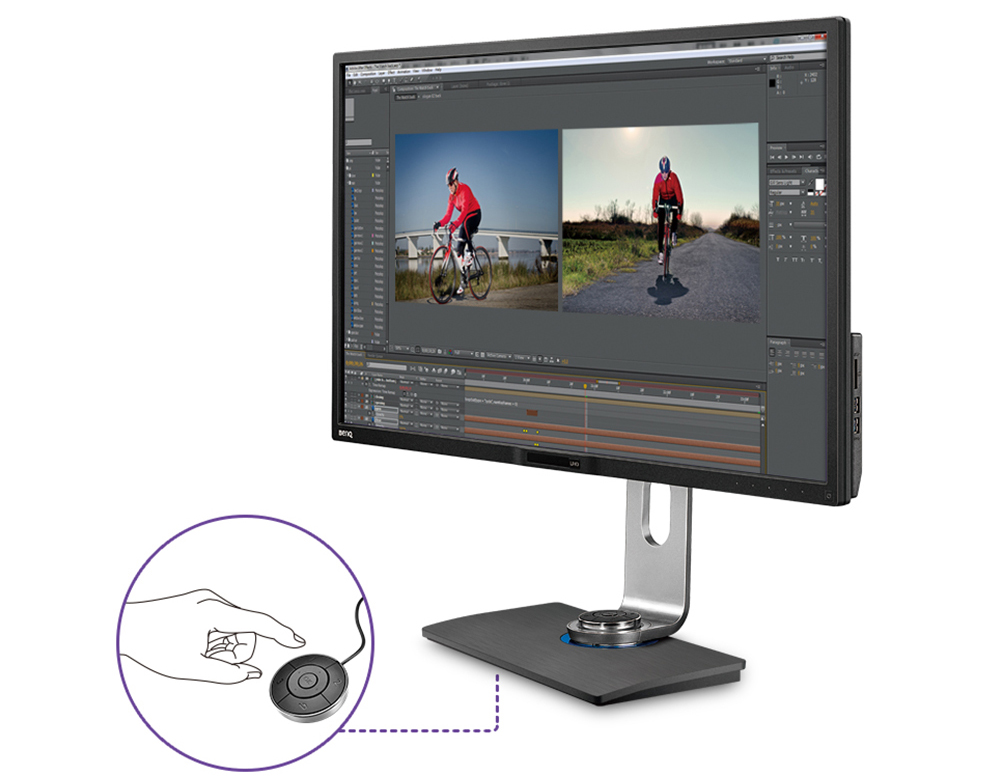

Hotkey Puck
Hotkey Puck lets you switch between Rec.709, EBU and SMPTE-C effortlessly.
The buttons can also be customized to map other modes or OSD settings, such as
brightness and contrast to bring added convenience to producers.
*How to set up Hotkey Puck to switch between modes rapidly
Ergonomic Design
Customize your workstation for the perfect user environment with an extensive
range of height, tilt, pivot, stroke and swivel monitor adjustments, so you can
enjoy viewing pictures in their full context.
Caring for Your Eyes
Industry-Leading Eye-Care Technology
BenQ exclusive eye-care technologies reduce eye fatigue for user comfort,
enhanced productivity, and workplace safety during extended use.
Specifications
Display |
|
Screen Size |
32 |
Panel Type |
IPS |
Backlight Technology |
LED backlight |
Resolution (max.) |
3840x2160 at 60Hz(DP, mDP) |
|
3840x2160 at 30Hz(HDMI) |
Brightness |
350cd/m2 |
Native Contrast(typ.) |
1000:01 |
Viewing Angle (L/R;U/D) (CR>=10) |
178/178 |
Response Time |
5 ms (GtG) |
Refresh Rate |
60Hz |
Aspect Ratio |
16:09 |
Display Colors |
1.07billion |
Color Gamut |
100% Rec. 709 |
Display Area(mm) |
708.5 x 398.5? |
Pixel Pitch (mm) |
0.185 |
PPI |
138 |
DCR (Dynamic Contrast Ratio) (typ.) |
20M:1 |
Color Bit |
10bits |
|
|
Monitor |
|
Segment |
Video Post Production |
Product Color |
Black |
Color Mode |
Standard / Rec.709 / EBU / SMPTE-C |
|
/Calibration 1 /Calibration 2/ Custom 1 / Custom 2 |
Display Mode |
Full, Aspect Ratio, 1:1 |
Color Temperature |
5000K / 6500K / 9300K / User Define |
Gamma |
1.8~2.6 |
K Locker |
Yes |
OSD Language |
17 Languages (English / Francais / Deutsch / Italiano / Espanol
/ |
|
Polish / Czech / Hungarian / Serbo-croatian / Romanian
/ |
|
Netherlands / Russian / Swedish / Portuguese / Japanese
/ |
|
Chinese / S-Chinese) |
PIP/PBP |
Yes |
HDCP |
1.4 |
VESA Wall Mount |
100x100mm |
Display Screen Coating |
Anti-Glare |
|
|
Eye Care |
|
Flicker-free Technology |
Yes |
|
|
Professional |
|
Eye Protector |
Yes |
ECO sensor |
Yes |
3D-LUT |
14bits |
Delta E |
<= 2 ( avg) |
Brightness Uniformity |
Yes |
Hardware Calibration |
Yes |
Black Level |
Yes |
Hotkey Puck |
Yes |
Factory Calibration Report |
Yes |
FW update by USB |
Yes |
|
|
Connectivity |
|
HDMI |
HDMI (v1.4)x1 |
DisplayPort |
DisplayPort (v1.2) x1 |
Mini DisplayPort |
MiniDisplayPort (ver1.2)x1 |
USB 3.0 Hub |
USB Downstream x 2 |
USB 3.0 Hub |
USB Upstream x1 |
Card Reader |
SD Slot 7-in-1, USB 3.0 |
|
|
Power |
|
Voltage Rating |
90~264V |
Power Supply |
Built-in |
Power Consumption (on mode.) |
90W |
Power Consumption (stand by mode) |
0.5W degree |
Power Consumption (sleep mode) |
0.5W degree |
|
|
Dimension and Weight |
|
Dimensions (HxWxD mm) (w/o Base) |
436.4 x 740.3 x 65.6 |
Dimensions (HxWxD mm) |
H: 640.2 x 740.3 x 233.5 |
|
L: 490.2x 740.3 x 233.5 |
Net Weight (kg) |
12.2 degree |
Gross Weight (kg) |
15.4 degree |
Tilt (down/up) |
-0.25 |
Swivel (left/right) |
45/45 |
Pivot |
90 degree |
Height Adjustment (mm) |
150mm |
|
|
Software |
|
Palette Master Element |
Yes |
Support Calibrator |
X-Rtie i1 Display Pro / i1 Pro /i1 Pro 2 , Datacolor Spyder
4/5 |
|
|
Video Signal Data |
|
Hor. Frequency (KHz) |
30~140KHz (DP/mDP) |
|
30~89KHz (HDMI)? |
Ver. Frequency (Hz) |
50~76 Hz (DP/mDP) |
|
24~76 Hz (HDMI)? |
Video Bandwidth (MHZ) |
600 (DP/mDP) |
|
300 (HDMI) |
|
|
Included Accessories |
|
Other Accessories |
CD, QSG, Individual Calibration Report ,Hotkey
Pucks |
Power Cable |
Yes(1.8m) |
Signal Cable |
mDP to DP cable (1.8m), HDMI cable (1.8m), USB 3.0 cable
(1.8m) |
|
|
Reliability |
|
Operating Temperatur |
0 degree C - 40 degree C |
Operating Humidity (non-condensing) |
10% - 90% |
|
|
Certification |
|
Mac Compatible |
Yes |
Windows Compatible |
Windows10, Windows8.1, Windows8, Windows7 |
Technicolor |
Yes |
