All stock codes associated to this product
UCD3D34KH, UCD3D34K-H, 9350784011916
Alogic Triple-Display Universal Hybrid Docking Station w. 4K &
Power Delivery - USB-C/USB3.0
Description
The Alogic UCD3D34K-H is a triple display hybrid dock which works with both
USB-C and USB 3.0 enabled computers allowing users to set up an efficient and
effective multi display work space at office or home.
The dock supports all the miracles of USB-C such as native support for video
and power delivery and at the same time features two video ports powered by
DisplayLink. The hybrid feature of the dock makes it perfect for office use in a
Hot Desking environment where both USB 3.0 and USB-C devices are in use. This
dock can support all current devices and future proof your investment for USB-C
enabled computers.

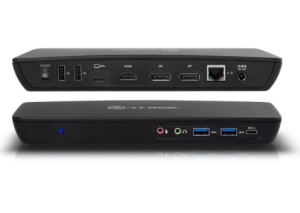

The dock features (1) HDMI, (2) DisplayPort (2) USB 3.0 (USB-A) (2) USB 2.0
(USB-A) (1) USB-C (1) RJ-45 Gigabit Ethernet and (1) 3.5mm Audio In (1) 3.5mm
Audio Out.
Features
- Triple Display support through HDMI & DisplayPort outputs
- A wide variety of monitors with VGA, DVI, HDMI & DisplayPort can be
connected for use with the dock by use of appropriate cables & adapters.
- Power delivery of up to 80W USB-C laptop charging through USB-C Port
- Gigabit Ethernet port for wired internet access
- 4 x USB-A ports for latest peripherals (including 1 fast charging Port)
- 1 x USB-C Port to charge & sync your USB-C devices like Mobile Phones
& Hard Drives
- 3.5mm Audio port for mic and headphones
- Universal compatibility with popular USB-C (DP alt mode) and USB 3.0
(USB-A) enabled laptop, PC tablet brands and operating systems
- Warranty - 1 Year warranty
Package Content
- UCD3D34K-H Dock X 1
- USB Cable x 1
- Power Adapter x 1
- User's Manual x 1
Specifications
|
User Interface |
|
|
Outputs |
1 X HDMI |
|
2 X DisplayPort |
|
1 X Gigabit Ethernet |
|
4 X USB Type A (2 x USB 3.0 and 2 x USB 2.0) |
|
1 x USB-C Port |
|
2 x 3.5mm Audio Jack |
|
Inputs |
1 X USB-C |
|
Ethernet |
10/100/1000 BASE-T |
|
|
|
Power Adapter |
|
|
Input |
AC 100-240V |
|
Output |
DC 20V/6A |
|
|
|
Resolution |
Single display, either one |
|
DP 1 |
3840x2160@60Hz |
|
DP 2 |
3840x2160@60Hz |
|
HDMI |
3840x2160@30Hz |
|
|
|
Multiple display |
|
|
DP 1 |
3840x2160@60Hz |
|
DP 2 |
3840x2160@60Hz |
|
HDMI |
3840x2160@30Hz |
|
|
|
OS Support |
Windows 10 and above and Mac OS Sierra |
|
|
|
Physical Characteristics |
|
|
Colour |
Black |
|
Dimensions |
220(L) X 90(W) X 28(H) mm |
|
|
|
System Requirement |
USB-C Ports with DP alt Mode or USB 3.0 Port |
|
Windows 10 and above or Mac OS
Sierra |
