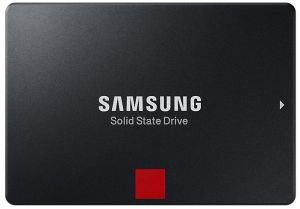

Samsung 512GB 2.5" Solid State Drive - V-NAND, 2-Bit MLC, SATA-III -
860 PRO Series
The SSD to trust
Get industry-leading reliability with the 860 PRO. Powered by the latest
V-NAND technology and a robust algorithm-based controller, it readily handles
heavy workloads of high-end PCs, workstations and NAS (Network Attached Systems)
to give lasting assurance to gamers, IT and creative professionals.
Enhanced performance
Speeds are more consistent and sustained, even with heavy workloads and
multiple tasks. The 860 PRO performs at sequential write speeds up to 530 MB/s
with the best combination of the latest V-NAND and a refined controller,
delivering sequential read speeds up to 560 MB/s.
* Performance may vary based on SSD’s firmware version and system hardware
&configuration. Sequential performance measurements based on CrystalDiskMark
v.5.0.2 and IOmeter 1.1.0. * Test system configuration: Intel Core i5-3550 CPU @
3.3 GHz, DDR3 1333 MHz 4 GB, OS – Windows 7 Ultimate x64, Chipset: ASUS P8H77-V
Fierce endurance
Under heavy workloads, endurance is everything. Safely store and render 4K
videos and 3D data used by the latest applications, up to 8x higher TBW* than
the previous 850 PRO. The latest V-NAND technology gives you industry-leading
endurance backed by a 5-year or up to 4,800 TBW limited warranty.
* Terabyte Written * Warrantied TBW for 860 PRO: 300 TBW for 256 GB model,
600 TBW for 512 GB model, 1,200 TBW for 1 TB model, 2,400 TBW for 2 TB model and
4,800 TBW for 4 TB model. * 5-years or TBW, whichever comes first. For more
information on the limited warranty, please visit
www.samsung.com/au/support/warranty (‘Solid State Drive’).
Smart compatibility
Benefit from faster, more fluid communication with your host system. The
refined ECC* algorithm and a new MJX controller generate higher speeds, and the
improved queued trim enhances Linux compatibility. Our advanced engineering
makes the 860 PRO more compatible with your computing system.
* Error Correction Code
Samsung Magician
Management software
- Samsung Magician software is designed to help you manage your SSD with a
simple and intuitive user interface.
Firmware update
- Get notifications when new firmware is released, and easily install
updates for enhanced performance, stability, and compatibility.
Perf. benchmark
- Check your SSD's sequential and random read/write speeds, so you can
maintain superb performance.
Data security
- Protect data by selecting security options. The 860 PRO supports AES
256-bit hardware-based encryption and is compliant with TCG Opal and IEEE
1667.
Specifications
- Application Client PCs
- Capacity 512 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity
may be less (due to formatting, partitioning, operating system, applications
or otherwise)
- Form Factor 2.5 inch
- Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA
1.5 Gb/s interface
- Dimension (WxHxD) 100 X 69.85 X 6.8 (mm)
- Weight Max 51.0g Weight
- NAND Type Samsung V-NAND 2bit MLC
- Controller Samsung MJX Controller
- Cache Memory Samsung 512 MB Low Power DDR4 SDRAM
Special Feature
- TRIM Support TRIM Supported
- S.M.A.R.T Support S.M.A.R.T Supported
- GC (Garbage Collection) Auto Garbage Collection Algorithm
- Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667
(Encrypted drive)
- WWN Support World Wide Name supported
- Device Sleep Mode Support Yes
Performance
- Sequential Read Up to 560 MB/s Sequential Read * Performance may vary
based on system hardware & configuration
- Sequential Write Up to 530 MB/s Sequential Write * Performance may vary
based on system hardware & configuration
- Random Read (4KB, QD32) Up to 100,000 IOPS Random Read * Performance may
vary based on system hardware & configuration
- Random Write (4KB, QD32) Up to 90,000 IOPS Random Write * Performance may
vary based on system hardware & configuration
- Random Read (4KB, QD1) Up to 11,000 IOPS Random Read * Performance may
vary based on system hardware & configuration
- Random Write (4KB, QD1) Up to 43,000 IOPS Random Write * Performance may
vary based on system hardware & configuration
Environment
- Power Consumption *Average: 2.0 W*Maximum: 4.0 W (Burst mode)* Actual
power consumption may vary depending on system hardware & configuration
- Reliability (MTBF) 2 Million Hours Reliability (MTBF)
- Operating Temperature 0 - 70 Operating Temperature
- Shock 1,500G & 0.5ms (Half sine)
Software
- Management SW Magician Software for SSD management
Installation Kit Not Available
Warranty 5 Years Limited Warrantyor 600 TBW Limited Warranty
