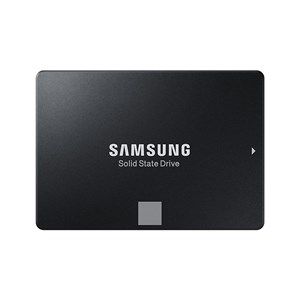

Samsung 1000GB (1TB) 2.5" Solid State Drive - M.2 2280, V-NAND, 3-Bit
MLC, SATA-III - 860 EVO Series
- Innovative V-NAND Technology with Enhanced Read/Write Performance.
- Superior Endurance backed by a 5-Year Limited Manufacturer's Warranty.
The SSD you trust
The newest edition to the world's best-selling* SATA SSD
series, the Samsung 860 EVO is specially designed to enhance performance of
mainstream PCs and laptops. With the latest V-NAND technology, this fast and
reliable SSD comes in a wide range of compatible form factors and
capacities.
*Sources: NPD (US data from Jan. 2015 to Oct. 2017)
Enhanced performance
Speeds are consistent, even under heavy workloads and multi-tasking
allowing for faster file transfer. The 860 EVO performs at sequential read
speeds up to 550 MB/s* with Intelligent TurboWrite technology, and sequential
write speeds up to 520 MB/s. The TurboWrite buffer size* is upgraded from 12 GB
to 78 GB.
Boosted endurance
Up to 8x higher TBW (Terabytes Written)* than the 850 EVO. Feel secure
storing and rendering large sized 4K videos and 3D data used by the latest
applications. The Samsung 860 EVO with V-NAND technology is backed by a 5-year
limited warranty.*
Smart compatibility
Benefit from faster, more fluid communication with your host system. The
refined ECC* algorithm and a new MJX controller generate higher speeds, and the
improved queued trim enhances Linux compatibility.
Multiple form factors
Whatever size your computer needs, there is an 860 EVO for you. Choose
among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2
(2280) or the mSATA for ultra-slim computing devices.
Samsung Magician
Management software
Samsung Magician software is designed to help you manage your SSD with a
simple and intuitive user interface.
Firmware update
Get notifications when new firmware is released, and easily install updates
for enhanced performance, stability, and compatibility.
Performance benchmark
Check your SSD's sequential and random read/write speeds, so you can
maintain superb performance.
Data security
Protect data by selecting security options. The 860 EVO supports AES
256-bit hardware-based encryption and is compliant with TCG Opal and IEEE
1667.
Check your SSD's sequential and random read/write speeds, so you can
maintain superb performance.
Specifications
- Application Client PCs
- Capacity 1,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity
may be less (due to formatting, partitioning, operating system, applications
or otherwise)
- Form Factor 2.5 inch
- Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA
1.5 Gb/s interface
- Dimension (WxHxD) 100 X 69.85 X 6.8 (mm)
- Weight Max 51.0g Weight
- NAND Type Samsung V-NAND 3bit MLC
- Controller Samsung MJX Controller
- Cache Memory Samsung 1 GB Low Power DDR4 SDRAM
Special Feature
- TRIM Support TRIM Supported
- S.M.A.R.T Support S.M.A.R.T Supported
- GC (Garbage Collection) Auto Garbage Collection Algorithm
- Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667
(Encrypted drive)
- WWN Support World Wide Name supported
- Device Sleep Mode Support Yes
Performance
- Sequential Read Up to 550 MB/s Sequential Read * Performance may vary
based on system hardware & configuration
- Sequential Write Up to 520 MB/s Sequential Write * Performance may vary
based on system hardware & configuration
- Random Read (4KB, QD32) Up to 98,000 IOPS Random Read * Performance may
vary based on system hardware & configuration
- Random Write (4KB, QD32) Up to 90,000 IOPS Random Write * Performance may
vary based on system hardware & configuration
- Random Read (4KB, QD1) Up to 10,000 IOPS Random Read * Performance may
vary based on system hardware & configuration
- Random Write (4KB, QD1) Up to 42,000 IOPS Random Write * Performance may
vary based on system hardware & configuration
Environment
- Power Consumption *Average: 3.0 W *Maximum: 4.0 W (Burst mode)* Actual
power consumption may vary depending on system hardware & configuration
- Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
- Operating Temperature 0 - 70 Operating Temperature
- Shock 1,500 G & 0.5 ms (Half sine)
Software
- Management SW Magician Software for SSD management
Installation Kit Not Available
Warranty 5 Years Limited Warrantyor 600 TBW Limited Warranty
