All stock codes associated to this product
PEXSAT32, 65030838955

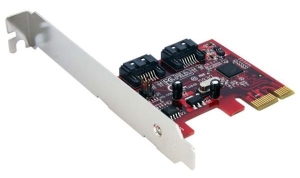

Startech 2-Port SATA 6Gbps PCI-Express SATA Controller Card -
PCI-Ex1
Add two SATA 6Gbps ports for high speed access to large internal storage
solutions
- Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards
compatible with SATA I/II at 1.5/3.0Gbps
- Port Multiplier FIS-based and Command-based switching supported
- Supports RAID 0 and 1 modes
- Compliant with PCI Express 2.0 standards
- Uses existing SATA I/II connectors and cabling
- Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
- Ships with a full profile bracket install, low profile included
- LED headers for HDD activity LED indicators
The PEXSAT32 2-Port PCI Express SATA 6 Gbps (SATA 3.0) Controller Card offers
simple connectivity between a host computer and SATA 3.0 devices - a
cost-effective solution for connecting high-speed storage, such as High RPM Hard
Drives and Solid State Drives (SSD), which in turn allows for easier data
backups and archiving.
With full support for SATA 3.0 hard drives and data transfer speeds of up to
6 Gbps, the adapter card features a native PCI Express single chipset that
provides enhanced compatibility, reliability and performance for external SATA
600 MB/s storage needs.
The controller card is backward compatible with SATA 2.0 devices, providing
the versatility to use older storage, and features support for RAID 0 and 1
modes as well as port multiplier capability with command-based and FIS-based
switching for connecting multiple external hard drives to a host PC through a
single SATA connection.
A dual profile solution, the SATA 3.0 controller card includes a low
profile/half-height bracket for installation in slimline or small form factor
computer cases.
The StarTech.com Advantage
- Twice the speed of SATA II (3Gbps)
- Ships with a full profile bracket install, low profile included
Specifications
| Warranty Information |
| Warranty |
Lifetime |
| Hardware |
| Bus Type |
PCI Express |
| Card Type |
Standard Profile (LP bracket incl.) |
| Chipset ID |
Marvell - 88SE9128 |
| Interface |
SATA |
| Ports |
2 |
| Performance |
| ATAPI Support |
Yes |
| Bootable |
Yes |
| Maximum Data Transfer Rate |
6 Gbps |
| Number of Drives Supported Through Port Multiplier |
1 to 5 |
| Number of Ports That Support Port Multiplier |
2 (can only use 1 PM at a time) |
| Port Multiplier |
Yes |
| RAID |
Yes |
| Supported RAID Modes |
RAID 0 (Striped Disks) |
|
RAID 1 (Mirrored Disks) |
|
JBOD - (Just a Bunch of Disks) |
| Type and Rate |
SATA III (6 Gbps) |
| Connector(s) |
| Connector Type(s) |
1 - PCI Express x1 Male |
| Internal Ports |
2 - SATA (7 pin, Data) Plug |
| Software |
| Microsoft WHQL Certified |
Yes |
| OS Compatibility |
Windows XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2,
2012, 2012 R2, 2016
Mac OS 10.6 to 10.13
Linux 3.5.x to 4.11.x
LTS Versions only
Note: Connected drives cannot be used as
System / Primary drive in Windows Server 2012, 2012 R2, 2016 |
| Special Notes / Requirements |
| Note |
The maximum throughput of this card is limited by the bus interface.
If used with PCI Express Gen 1.0 enabled computers, the max throughput is
2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max
throughput is 5 Gbps.
Only one port can use the Port Multiplier feature at a time. |
|
Alarm function is not supported in MSU software. |
| Environmental |
| Humidity |
15~90% RH |
| Operating Temperature |
5C to 50C (41F to 122F) |
| Storage Temperature |
-25C to 70C (-13F to 158F) |
| Physical Characteristics |
| Product Height |
0.8 in [21.3 mm] |
| Product Length |
2.7 in [67.7 mm] |
| Product Weight |
1.2 oz [35 g] |
| Product Width |
2.5 in [64.5 mm] |
| Packaging Information |
| Shipping (Package) Weight |
6.4 oz [180 g] |
| What's in the Box |
| Included in Package |
1 - SATA 6Gbps PCI Express Card |
|
1 - Low Profile Bracket |
|
1 - Driver CD |
|
1 - Instruction Manual |
