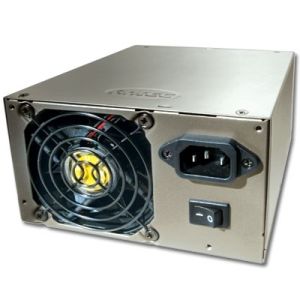

NeoPower 430
High Efficiency 430W PSU

NeoPower 430

NeoPower customizable power

Welcome to the next level in PC power and protection.



Set up your power supply your way, with NeoPower. NeoPower features advanced cable management which allows you to customize the cables you use in your system reducing cable clutter and enhances the airflow throughout your computer. The result is a cooler quieter system, making NeoPower the premier choice for high-performance PC systems. NeoPower is available in a variety of models including 430W, 500W, 550W, 650W and 650W with blue internal illumination. Now you can set up your system the way you really want it.

Neo HE power supplies consume up to 20% less energy than typical power supplies and generate less heat in your system. This not only saves electricity, but enables cooling with a smaller, slower, quieter fan. Active PFC circuitry further reduces impact on power infrastructure. The result is cooler, quieter, and environmentally friendlier power, making NeoHE the premier choice for high-performance PC systems.


Features:
  • High Efficiency, Super Quiet Operation
    So highly efficient (up to 85%), one super-silent 80mm fan keeps NeoPower cool
  • Advanced Cable Management System
    Improves internal airflow and reduces system clutter by allowing you to use only the cables you need
  • Universal Input with Active PFC
    Use anywhere in the world without worrying about input voltages; Active PFC improves voltage stability and delivers environmentally-friendlier power
  • Dedicated Power Circuitry
    Delivers safer, more reliable output to your systems delicate components. Includes dedicated voltage outputs, triple +12V output circuits, voltage feedback circuitry, and tighter 3% regulation for improved system stability
  • Three +12V output circuits provide maximum stable power for the CPU independently of the other peripherals
  • Accurate power rating allows NeoPower to deliver its full rated power, 24 hours a day rated at 50C
  • PCI Express graphics card power connector
  • Low-speed 80mm fan delivers whisper-quiet cooling and ensures quiet operation by varying fan speed in response to load and conditions
  • Industrial grade protection circuitry prevents damage resulting from short circuits (SCP), under voltage protection (UVP), power overloads (OPP) and excessive voltages (OVP)
  • Approvals: UL, CUL, CE, CB, FCC Class B, TV, CCC, C-tick
  • MTBF: 80,000 hours
  • Unit dimensions:
    3.4"(H) x 5.9"(W) x 5.9"(D)
    8.6cm(H) x 14.9cm(W) x 14.9cm(D)
  • Package dimensions:
    8.3"(H) x 9.1"(W) x 4"(D)
    21.1cm(H) x 23.1cm(W) x 10.2cm(D)
  • Weight:
    Net: 5 lb / 2.2 kg
    Gross: 5.6 lb / 2.5 kg

Output table:

Output Voltage

Load Range
Reg.
Ripple
Noise
Min
Max
+5V
0.3A
14.0A
3
50
50
+12V1
1.0A
16.0A
3
120
120
+12V2
1.0A
16.0A
3
120
120
+12V3
1.0A
16.0A
3
120
120
-12V
0A
0.8A
6
120
120
+5VSB
0A
2.5A
3
50
50
+3.3V
0.5A
22.0A
3
50
50

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Antec) web site.
