Monitors -> 23" & 24" LCD -> Apple

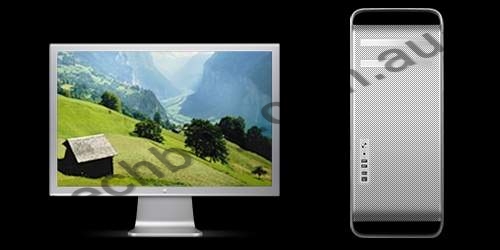

Apple 23" Cinema HD Display
23", Widescreen, 14ms, 1920x1200, 700:1, 400cd/m2, DVI - Silver



Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:56517
Usually Ships: No Longer Available Details
Brand:Apple Web Site
Manuf No:M9178X/A
Shipping Weight:10 KG How Much?
Date Added:21/2/2006
Rating: Not Rated
Currency:AUD Convert

Product Description

Feast your eyes on more than four million pixels in the first high-resolution 30-inch flat-panel display designed for a personal computer. All Apple Cinema Displays feature an anodised aluminium enclosure that look smart sitting next to your Mac.

See the Forest and the Trees

The 30-inch Apple Cinema HD Display gives you the space you need to visualise your entire creation yet provides the resolution necessary to edit in place. With 77 percent more screen real estate, you can lay out a two-page spread and edit text without squinting. Review multiple images side by side in Aperture or just one, full screen and large as life. Work in Photoshop with more than 30 layers in a palette. Take in the whole timeline in Final Cut Pro. Display 126 Logic Pro mixer controls simultaneously. Or peer into four different modes of a molecule visualisation with subatomic detail. Ready for a colossal advancement in innovation? Thats what the 30-inch Apple Cinema HD Display offers.



Eliminate Tunnel Vision

The widescreen design of Apple Cinema Displays offers a natural format for arranging documents the way your brain processes them: side-by-side and left to right. It just makes sense to view a web page and its code next to it or a long video timeline in wide format. (In fact, the 23-inch Cinema HD Display provides the exact resolution to display widescreen HD material.) The format and resolution of each display is optimised for viewing high-resolution images, sophisticated type treatments or just plain email.
Bezel

Enjoy One or Two Artful Displays

Each display is designed to match the sculpted aluminium enclosures of Mac Pro and MacBook Pro. And because this strong, anodised aluminium allows for an exceptionally narrow bezel, you can put multiple displays right next to each other, for a virtually seamless picture. The Cinema Display hovers above your desk on a curvaceous stand and since its the lightest Apple display ever a light touch can adjust the viewing angle from -5 to 25.



Double-Wide, 16-Lane PCI Express All Around

With an all PCI Express architecture, Mac Pro supports a lineup of state-of-the-art graphics cards to ensure a spectacular visual experience. Every Mac Pro supports two displays including one 30-inch Apple Cinema HD Display and can be expanded to drive an array of up to eight displays.
Choose a standard configuration equipped with a card for general graphics applications. Or opt for the additional performance offered by either the ATI X1900 XT or the workstation-class NVIDIA Quadro FX 4500. Either of them let you connect two 30-inch Apple Cinema Displays without blocking any of the three remaining PCI Express expansion slots on Mac Pro.


A Desktop for Your Laptop

Bring your MacBook Pro home to a big, bright Apple Cinema Display for the perfect combination of portability and presence. All MacBook and MacBook Pro models connect to the 23-inch Apple Cinema HD Display or 20-inch Apple Cinema Display. And with dual-link DVI support and up to 256MB of graphics memory, every MacBook Pro also supports the massive 30-inch Apple Cinema HD Display, giving your portable computer a dramatic desktop canvas.
USB + FireWire ports

Peripheral Devices on Your Desktop

Every Apple display has a FireWire 400 hub and a USB 2.0 hub, each with two ports. Use the FireWire ports for connecting high-performance devices like digital cameras and camcorders. And whether youre using your display with a Mac or a PC, you can make best use of all the latest USB 2.0 devices, including iPods and industry-standard printers and scanners.


Configurations

  20-inch Apple Cinema Display 23-inch Apple Cinema HD Display 30-inch Apple Cinema HD Display
Model M9177X/A M9178X/A M9179X/A
Screen size (diagonal viewable image size) 20 inches (viewable) 23 inches (viewable) 30 inches (29.7 inches viewable)
Screen type Thin film transistor (TFT) active-matrix liquid crystal display (AMLCD)
Resolutions
  • 1680 x 1050 pixels (optimum resolution)
  • 1280 x 800 pixels
  • 1024 x 640 pixels
  • 1920 x 1200 pixels (optimum resolution)
  • 1280 x 800 pixels
  • 1024 x 640 pixels
  • 2560 x 1600 pixels (optimum resolution)
  • 2048 x 1280
  • 1920 x 1200
  • 1280 x 800
  • 1024 x 640
Display colours (maximum) 16.7 million
Viewing angle (typical) 178 horizontal; 178 vertical
Brightness (typical) 300 cd/m2 400 cd/m2
Contrast ratio (typical) 700:1
Response time (typical) 14 ms
Pixel pitch 0.258 mm 0.250 mm
Screen treatment Antiglare hardcoat
User controls (hardware and software) Display power, system sleep, system wake, brightness and display tilt
Cables DVI (Digital Visual Interface), FireWire 400, USB 2.0 and DC power (24.5 V)
Connectors Two-port, self-powered USB 2.0 hub, two FireWire 400 ports and Kensington security port
VESA mount adapter Compatible with VESA FDMI (MIS-D, 100, C) compliant mounting solutions. (Requires optional Cinema Display VESA Mount Adapter, M9649G/A)
Mac Pro compatibility All new Mac Pro systems support two Apple Cinema Displays, including dual-link DVI for one 30-inch model. Support for two 30-inch Apple Cinema HD Displays requires two dual-link DVI ports available in configurations with either the ATI Radeon X1900 XT or the NVIDIA Quadro FX 4500 or by installing an additional NVIDIA GeForce 7300 GT card. Support for more than two displays requires installation of one or more additional NVIDIA GeForce 7300GT cards.
Power Mac G5 compatibility Any dual- or quad-core Power Mac G5 supports two Apple Cinema Displays, including dual-link DVI for one 30-inch model. Support for two 30-inch Apple Cinema HD Displays requires two dual-link DVI ports, available in configurations with the NVIDIA Quadro FX 4500 or by installing an additional NVIDIA GeForce 6600 card. Support for more than two displays requires installation of one or more additional NVIDIA GeForce 6600 cards.
MacBook Pro compatibility All MacBook Pro models
MacBook compatibility Requires Apple Mini-DVI to DVI Adapter, M9321G/A N/A
iMac compatibility Intel-based iMac models (requires Apple Mini-DVI to DVI Adapter, M9321G/A) N/A
Mac mini compatibility All Mac mini models N/A
PowerBook compatibility PowerBook G4 with DVI port PowerBook G4 with dual-link DVI port
Limited warranty and service Your Apple display comes with 90 days of free telephone support and a one-year limited warranty. To extend your service and support to three full years, you may register one display in the AppleCare Protection Plan when you purchase the display at the same time as a Mac Pro, MacBook Pro or Mac mini. To cover an individual display or second display, purchase theAppleCare Protection Planfor Apple Display.Only the AppleCare Protection Plan provides you with direct telephone support from Apple technical experts and the assurance that repairs will be handled by Apple-authorised technicians using genuine Apple parts. For more information, visitApple support.

Technical Specifications and Approvals

Electrical requirements

  • Input voltage: 100-240 VAC 50-60Hz
  • Maximum power when operating: 65W (Apple Cinema Display); 90W (Apple Cinema HD Display); 150W (Apple Cinema HD Display)
  • Energy saver mode: 3W or less

Environmental requirements

  • Operating temperature: 10 to 35 C
    (50 to 95 F)
  • Storage temperature: -40 to 47 C
    (-40 to 116 F)
  • Operating humidity: 20% to 80% noncondensing
  • Maximum operating altitude: 3,000m (10,000 feet)

Size and weight

  • 20-inch Apple Cinema Display
    • Height: 41 cm (16.1 inches)
    • Width: 47.1 cm (18.5 inches)
    • Depth: 17.4 cm (6.8 inches)
    • Weight: 6.6 kg (14.5 pounds)

  • 23-inch Apple Cinema HD Display
    • Height: 45 cm (17.7 inches)
    • Width: 53.6 cm (21.1 inches)
    • Depth: 18.7 cm (7.3 inches)
    • Weight: 7.03 kg (15.5 pounds)

  • 30-inch Apple Cinema HD Display
    • Height: 54.3 cm (21.3 inches)
    • Width: 68.8 cm (27.2 inches)
    • Depth: 21.5 cm (8.46 inches)
    • Weight: 12.47 kg (27.5 pounds)

Agency approvals

  • FCC Part 15 Class B
  • EN55022 Class B
  • EN55024
  • VCCI Class B
  • AS/NZS 3548 Class B
  • CNS 13438 Class B
  • ICES-003 Class B
  • ISO 13406 part 2
  • MPR II
  • IEC 60950
  • UL 60950
  • CSA 60950
  • EN60950
  • ENERGY STAR
  • TCO 03


Product Warranty


Unknown [Please check the manufacturers web site or contact us for more information]

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
