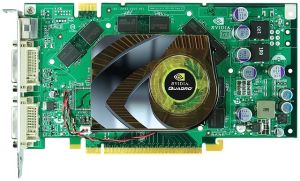

Leadtek Quadro FX1500, 256MB, Dual Head DVI/DVI/TV, PCI-Ex16

Cart
Quantity:
Add Leadtek Quadro FX1500, 256MB, Dual Head DVI/DVI/TV, PCI-Ex16 to your wishlist
Click here to write a review on Leadtek Quadro FX1500, 256MB, Dual Head DVI/DVI/TV, PCI-Ex16

Large image is available

Product May Vary From Image

Our Price:
$1,120.15

Techbuy Part No:64798
Usually Ships: 1-3 Days Details
Brand:Leadtek Web Site
Manuf No:VGA-LT1500FX
 VGALT1500FX
Shipping Weight:2.5 KG How Much?
Date Added:17/8/2006
Rating: Not Rated
Currency:AUD Convert

Product Description

The NVIDIA Quadro FX 1500 mid-range graphics product is the industry's best price performance workstation graphics solutions and provide the optimal blend of quality, precision, performance, programmability for all professional 3D applications. Featuring a 256MB GDDR3 frame buffer memory, 256-bit memory interface, and up to 40.0GB/sec. memory bandwidth, NVIDIA Quadro FX 1500 mid-range product delivers unprecedented segment-leading performance and quality.

Leadtek Quadro FX 1500 features dual 400 MHz integrated RAMDACs and two dual-link DVI parts. Some high resolution panels such as Apple's 30-inch Cinema HD Display require dual-link DVI to drive its massive amount of pixels. The 30-inch Cinema Display has a native resolution of 2560 x 1600, which exceeds the bandwidth a single TMDS link can deliver. To support two 30-inch Cinema Displays, you need a special mid-range card with two dual-link DVI ports such as FX 1500. It supports a maximum 2048 1536 32bpp at 85Hz resolution over VGA port and a 3840 2400 32bpp resolution over digital port. The Dual-link TMDS transmitters support ultra-high-resolution panels which result in amazing image quality producing detailed photorealistic images.

NVIDIA Quadro FX 1500 by Leadtek assumes the consistently popular price-performance position in the family. Even with its accessible price, the FX 1500 offers an advanced feature set, outperforms some competitor's high-end professional graphics products, and advances features and programmability at the top end of the price/performance segment.

Specifications
Product Quadro FX 1500
Graphics Bus PCI Express x16
Memory Size 256MB GDDR3
Memory Interface 256-bit
Memory Bandwidth 40.0 GB/s
Display Connectors DVI-DL+DVI-DL+HDTV
Dual Link DVI Yes (2)
Auxiliary Power Connectors No
Number of Slots 1
SLI Support No Support SLI Frame Rendering
3D Primitive Performance Geometry (Triangles/sec.) Texels per Second/Fill Rate
144 Million 6.0 Billion
SPEC Results 3dsmax-03 Catia-01 Ensight-02 ProE-03 SW-01 UGS-04
41.99 34.24 32.69 62.41 34.25 40.43

NVIDIA Quadro mid-range FX 1500 GPU - Supercharge your working environment with the power of an FX 1500 GPU
PCI Express architecture enables over 2x improvement in geometry and fill rates
256MB GDDR3 memory, 256-bit memory interface
Full 128-bit floating point precision pipeline
Industry-leading 12 bits of sub pixel precision delivers high geometric accuracy, eliminating sparkles, cracks, and other rasterization anomalies
Fully compliant with OpenGL 2.0 and DirectX 9.0c applications
Removes the previous limits on complexity and structure of shader programs with full support for Vertex and Shader Model 3.0
Rotated Grid FSAA dramatically reduces visual aliasing artifact
Featuring two dual-link DVI-I and one HDTV connectors


Quadro FX 560 Display Support

Dual 400 MHz integrated RAMDACs
Dual-link DVI-I output


Drives a digital display at resolutions up to 3840 x 2400 at 24 Hz

Analog displays output
Drives an analog display at resolutions up to 2048 1536 at 75Hz

System Requirements
Intel Pentium 4/Celeron, or AMD Athlon/Opteron class processors or higher
PCI Express compatible slot
Installation software requires CD-ROM or DVD-ROM drive
Microsoft Windows XP, 2000, or Linux operating system
50MB of available disk space for full installation
VGA or DVI-I compatible monitor
Package Contents
Leadtek Quadro FX 1500 graphics card
User's Manual
Software CD
DVI to VGA Converter x 2

HDTV cable x 1





Product Warranty


1 Year Return to Base
