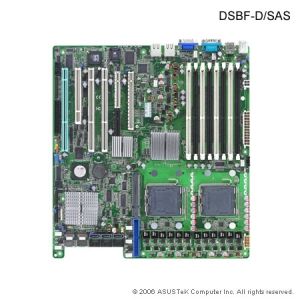

Asus serverboard DSBF-D/SAS supports Dual Core Intel Xeon processors 5000/5100 Sequence and Intel 5000P chipset to improve performance and reliability. It's ready for the broadest range of 64-bit applications and with Intel VT and Intel I/OAT technology to focus on high-end server market. With 8 ECC FBD DIMM slots, DSBF-D/SAS can support 4-channel FBDIMM DDR2 533 /667 up to 16GB+ to significantly improve the serverboard's computing capability.
DSBF-D/SAS has a full range of expansion choices: it supports next-generation PCI Express x 8 slot (x 8 link) and PCI Express x 16 (x 8 link) slot; it protects users' investment with three PCI-X 133/100 MHz slots and one PCI 33MHz/32 bit slot as flexible options for server utilization.
The serverboard supports mainstream or next-generation storage, including IDE, SATAII and SAS. It has integrated 6 SATAII 300MB/s ports and 2 mini-SAS connectors, both have built-in RAID functions for better and cost-effective data protection. It covers from embedded SATA RAID 0, 1, 10 with most Linux drivers support for value level market to SAS ZCR with RAID 5 for high-end market. It really benefits user with the best upgrade capability and data protection. DSBF-D/SAS Specifications
|
Processor
|
2 * Intel Xeon processors 5000/5100 Sequence processors
|
|
Chipset
|
Intel 5000P MCH
Intel 6321 ICH
Intel 6702 PXH-V
|
|
Memory
|
Four Channel Fully Buffered DIMM DDR2 533/667, maximum up to 32GB
|
|
Expansion
|
1 * PCI-X 133/100 MHz (support Zero Channel RAID card)
1 * PCI 32bit/33 MHz
1 * PCI-X 133/100 MHz
1 * PCI-X 133/100 MHz
1 * PCI-E x 8 (x 8 link)
1 * PCI-E x 16 (x 8 link)
1*SODIMM socket for ASMB3-SOL
|
|
LAN Chip
|
Intel 82583 PCI-E Dual Ports Gb LAN
|
|
Board Size
|
SSI EEB 3.61, 12" x 13"
|
|
