AOpen MP945-VXR MiniPC Duo Barebone
Intel S479, 945G, DDR2, SATA, VGA, TV-Out, Firewire

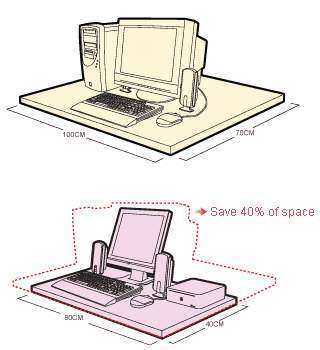

Minitaure Size - leaving you with a more spacious desk

With a supermini size of just 165 x 165 x 51mm, the Mini PC creates extraordinary desktop space for you to extend unlimited creativity. Using AOpen MiniPC saves you over 40% of space compared to a traditional desktop PC. The saved space can be even larger when fitted with an LCD monitor. The ergonomic effects brought to you by the MiniPC will effectively boost your work efficiency and help maintain a pleasant mood.

Light and Handy - can be easily carried anywhere

Weighing a mere 1.15kg (0.52 lb), the AOpen MiniPC is designed for high mobility. The product fully meets the demands of computer users, who mostly need to carry the computer in a briefcase or handbag from one place to another to continue their work rather than using PCs in the transit process.

AOpen Inc. designs its MiniPC for point-to-point mobility and leaves out monitor, keyboard, and mouse. It further omits the weighty battery so that the MiniPC is lighter than even the lightest notebook PCs available on the market. Despite its light weight, the computer's functions are not compromised at all. Such brand new "portable desktop PC" concept more conforms to consumers' needs.

Superb Performance - Silence, low power consumption, high efficiency

The AOpen MiniPC brings forth a new era for desktop PCs with unrivaled silence, power conservation, and excellent performance by adopting Pentium M/Celeron M processors developed by Intel with mobility technology coupled with a So-DIMM memory slot and Mini-PCI interface. The AOpen MiniPC can easily satisfy the majority of users who mainly work with office applications, enabling them to easily handle office work, entertainment, Internet surfing, CD/DVD burning, etc.

Product Name		miniPC Duo
Model		MP945-VXR
SIZE WxHxD(mm)		165(W)x50(H)x165(D)
SIZE WxHxD(inch)		6.49(W)x1.96(H)x6.49(D)
Volume(liters)		1.36L
Weight(Kg/Pound)		1.45kg / 2.4 pound (N.W.)
CHIPSET		Intel 945GM+ICH7M-DH
Power Solutions		Two-phase voltage stabilization
MEMORY	DDRII SO DIMM x 1	DDRII SO DIMM x 1
	DDRII	400/533/667
	Max memory size	2G
CPU	Socket M 479 (Support Intel Core Duo/Solo CPU)	Socket M 479 (Support Intel Core Duo/Solo CPU)
	FSB	533/667
VGA	Intel 945GM OnDie	Intel 945GM OnDie
	Port	x1
TV Out		Multi-TV out
CPU Thermal		AOpen Proprietary super quite FAN (below 27dB)
mini PCI Slot		x1
PCI Express x1 Slot		none
PCI Express x4 Slot		none
PCI Express x16 Slot		none
Build in High Definition Audio 8 Channel (previously codenamed Azalia)	5.1 CH	5.1 CH
	Line-In (Surround-Out L/R)*	x1
	Line-Out(Front-Out L/R)*	x1
	Mic-In(Central/Subwoofer out) *	x1
	Front Mic-In	none
	Front Earphone-Out	none
S/PDIF	none	none
	Optical-Out	Yes (by convertor)
	Coaxial-Out	none
Intel LAN(RJ-45)		10/100/1000
ATA Connector		none
S-ATA Connector		x1
USB 2.0		2(Rear) /3(On Board)
IEEE 1394		1(Rear)
VGA output Port 15 pins D-Sub		Yes (by Y cable)
PS2 Keyboard Port		none
PS2 Mouse Port		none
Parallel Port (Printer) 25 pins D-Sub		none
Serial Port (COM) 9 pins D-Sub		none
CHASSIS	x1	x1
	Front Cage	hidden Mic x1
	2.5" HDD bay	x1
Power Supply		65W DC Adapter
Input Volotage		AC 100~240V
Operating Temperature		10 ~ 35
Storage Temperature		-10 ~ 48
Operating Humidity		5 ~ 95%RH
Supported OS		Windows XP/MCE
Remote control		MCE certificate RC6 Remote control
Note		none
