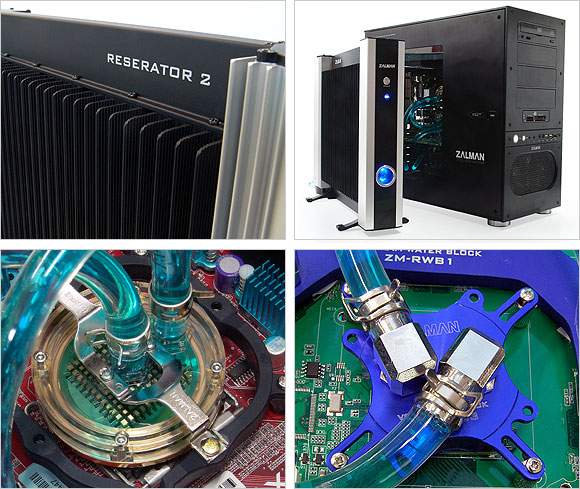

RESERATOR2
CPU Water Block (ZM-WB4 Gold)
The CPU Water Block incorporates a pure copper base for excellent heat transfer, and is gold plated to prevent corrosion. It supports Pentium 4 Socket 775/478 CPU and AMD Socket 754/939/940 CPU, and is designed to be light weight and easy to install.
| - Weight |
: 135g(Water Block) |
| - Dimensions |
: 63(L) x 63(W) x 16.5(H) mm |
| - Material |
: Polycarbonate Cover, Gold Plated Pure Copper Base |
| - Compatibility |
: Intel Pentium 4 (Socket 775/478)
AMD Sempron/AMD64 (Athlon 64/Athlon 64 FX/Opteron)
(Socket 754/939/940) |
VGA Water Block (ZM-GWB3)
The VGA Water Block incorporates a light weight pure aluminum base for high cooling performance, and is anodized and coated to prevent corrosion. It also incorporates pivoting fittings for easy installation of hoses.
| - Weight |
: 100g |
| - Dimensions |
: 60.4(L) x 60.4(W) x 30(H) mm |
| - Material |
: Anodized Pure Aluminum |
| - Compatibility |
: Graphics cards with heatsink mounting holes |
VGA RAM Water Block (ZM-RWB1, Optional)
This anodized, pure aluminum RAM Water Block is built for high performance cooling, is compatible with GeForce 7800/7900 and ATI X1800/X1900 in need of VGA RAM cooling, and installs with ease.
| - Weight |
: 120g |
| - Dimensions |
: 19(L) x 122(W) x 12(H) mm |
| - Material |
: Anodized Pure Aluminum |
Northbridge Water Block (ZM-NWB1, Optional)
This anodized, pure aluminum block is built for high performance cooling, and is designed for compatibility with a wide variety of Northbridge chipsets.
| - Weight |
: 48g |
| - Dimensions |
: 43(L) x 43(W) x 30(H) mm |
| - Material |
: Anodized Pure Aluminum |
Anti-Corrosion Coolant (ZM-G300)
This coolant contains a high quality anti-corrosion agent for various
materials including copper, aluminum, plastic, that prevents corrosion for
long term operation.
| - Material |
: Propylene Glycol & Anti-Corrosion Agent |
| - Weight |
: 250ml |
| - Freezing Point |
: -9C |
| - Exchange Cycle |
: 1 year |
Flow Indicator
This component is connected with the circulation tube for checking the
circulation of the coolant. When the coolant is actively circulating, its
impeller rotates and the blue LED is brightly lit, providing easy indication
of the circulation status.
Quick Coupling
The Fittings incorporate valves that prevent leaks when disconnecting
the PVC Tubes allowing quick, convenient separation and reassembly of
the Reserator for transport and coolant replacement.
