All stock codes associated to this product

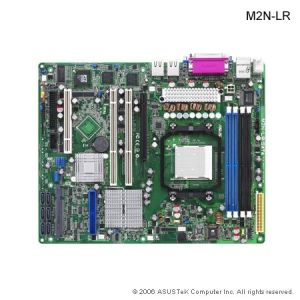

M2N-LR, M2NLR
| Most Expandable UP Serverboard with the Latest Socket AM2 |
This serverboard is based on AMD's latest Socket AM2 platform. With dual core technology, the serverboard is able to provide dual CPU performance with one socket 940 processor. It supports dual channel ECC Un-buffered DDR2-800 memory, which improves bandwidth and performance significantly compared with DDR400.
Leading-edge Performance Ready
Support AMD's latest Socket AM2 processor and nVIDIA nForce Professional 3600 MCP + Intel 6702 PXH chipset
Dual Channel ECC Un-buffered DDR2-800 ensures faster processing speed
High performance with ECC memory protection
Support up to 4 DIMM 8GB DDR2-800 ECC Un-buffered memory space. DDR2-800 provides better performance over last generation Opteron DDR 400 platform
Ultimate in expansibility and upgrade
1 * PCI-E x16 slot, 1 * 32bit/ 33MHz PCI slot, 2 * 64bit/ 133GHz PCI-X slots, and 1 * SODIMM 200P BMC socket to support wide range of server add-on cards
Complete RAID solution for data protection
Build-in nVIDIA MCP55P provides 6 SATA ports supporting RAID 0, 1, 10, 5, and JBOD to secure your precious data
Dual Server Class PCI-Express Gb LAN
Broadcom PCI-Express Gb LAN provides most professional server network connection solution
Teaming and failover function which provides load-balance and fault tolerance features enables higher bandwidth aggregation and reliable network connection
IPMI2.0 for Online & Offline Management
Out-of-band Management via ASMB3 with SOL support (optional)
ASWM 2.0 provides in-Band web-based Management capability for your server
Global Technical Support Service
ASUS A.R.S. (Advanced RMA Service) allows for convenient return and replacement of defective products, and offers effective way to shorten RMA lead-time.
Intelligent SmartFan 2 technology
Proactively fine-tune fan speed base on System thermal condition for better acoustic
M2N-LR Specifications
|
Processor
|
AMD AM2 processor (Socket 940)
|
|
Chipset
|
nVIDIA nForce Professional 3600 MCP
Intel 6702 PXH
|
|
Memory
|
Dual Channel ECC Un-buffered DDR2 800 DIMM, maximum up to 8GB / 4 slots
|
|
Expansion
|
1 * PCI-E x16
1 * 32bit/ 33MHz PCI
2 * 64bit/ 133MHz PCI-X
1 * SODIMM 200P BMC socket
|
|
LAN Chip
|
2 * Broadcom5721 PCI-E Gb LAN
|
|
Form Factor
|
12" x 9.6"
|
|
|
|
|
Processor / System Bus
|
1 * socket 940
AMD AM2 Processor
Dual core ready
|
|
Core Logic
|
nVIDIA nForce Professional 3600 MCP
Intel 6702 PXH
|
|
Form Factor
|
12.0" X 9.6"
|
|
Chassis Support
|
N/A
|
|
ASUS Features
|
Smart Fan: Smart Fan II
Rack Ready (Rack and Pedestal dual use): V
ASWM2.0: V
|
|
Memory
|
Total Slots: 4
Capacity: Maximum up to 8GB
Memory Type: Dual Channel ECC Un-buffered DDRII800
Memory Size: 512 MB,2GB
|
|
Expansion Slots
|
Total Slots: 5
Slot 1: 1 * PCI-E x 16
Slot 2: 1 * 64bit/ 133GHz PCI-X
Slot 3: 1 * 64bit/ 133GHz PCI-X
Slot 4: 1 * 32bit / 33MHz PCI
Additional Slot 1: 1 * SODIMM socket for ASMB3-SOL
|
|
Storage
|
IDE Controller:
IDE: Single Channels Bus Master IDE support UltraATA 100/133
SATA Controller:
nVIDIA MCP55P:
Three channel 6 SATA2 ports, RAID 0, 1, 10, 5, JBOD
|
|
Networking
|
LAN: 2 * Broadcom BCM5721 PCI-E Gb LAN
|
|
Graphic
|
VGA: ES1000 32MB DDR SDRAM
|
|
Onboard I/O Connectors
|
Floppy Connector: 1
PSU Connector:
SSI 24-pin
4-pin ATX 12V power connector
Management Connector: 1
USB Connectors: 3 (support 6 USB ports)
Fan Header: 6 * Fan
SMBus : 1 * SMbus
Chassis Intruder: 1
Front LAN LED: 2
Serial Port Header: 1
|
|
Rear I/O Connectors
|
External USB Port: 2
VGA Port: 1
RJ-45: 2
PS/2 KB/Mouse: 1
|
|
Management Solution
|
Software: ASWM2.0
Out of Band Remote Management: Optional ASMB3 (SODIMM interface)
|
|
Monitoring
|
CPU Temperature: V
FAN RPM: V
|
|
Safety
|
N/A
|
|
EMI
|
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
|
|
Anti-virus Software
|
|
|
OS Support
|
|
|
Environment
|
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
|
|
Optional Parts
|
|
|
Product SKUs
|
|
|
|
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
|
