All stock codes associated to this product
KFN5-D-SLI, KFN5DSLI
| Enjoy Dual GPUs Performance |
Immediate CPU Performance Scale Up
Support Dual AMD Socket F processors, with Dual-core ready and 64bit operating system. 2 CPU Sockets provide almost 4 CPU performance!
High performance with ECC memory protection
Support up to 8 DIMM,32GB DDRII 533/ 667 ECC Registered memory space. DDRII 533/ 667 provides better performance over last generation Opteron DDR 400 platform
Highly memeory capacity to meet your critical computing environment needs
Support SLI technology
nVIDIA SLI technology revolutionizes graphic performance by combining multiple PCI Express GPUs in a single and scalable system!
Dual GPUs provide increased, supercharged 3D graphics and performance
Superb network performance with server connectivity
Dual PCI-E Gb LAN feature moves network data more efficiently
Teaming and fail over function provide more flexible and reliable server connectivity
Complete RAID solution
Build-in MCP55 Pro provides 6 SATAII ports supporting RAID 0, 1, 0 + 1, 5, and JBOD
On board Sil3132 SATA controller provides 2 SATAII ports, supporting RAID 0, 1

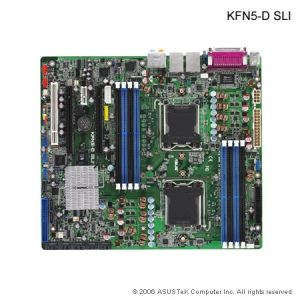

KFN5-D SLI Specifications
|
Processor
|
2 * AMD Opteron 2000 Series processors
|
|
Chipset
|
nVIDIA nForce Professional 3600 MCP
|
|
Memory
|
Dual Channel ECC Reg. DDR2 533/ 667 DIMM, maximum up to32GB / 8 slots
|
|
Expansion
|
1 * PCI-E x16
1 * PCI-E x1
1 * PCI-E x16 (x8 link)
1 * PCI 32bit/33 MHz
|
|
LAN Chip
|
2 * Broadcom BCM5754 PCI-E Gb LAN
|
|
Form Factor
|
12"x 10.5"
|
|
|
|
|
Processor / System Bus
|
2 * AMD Opteron 2000 Series processors
|
|
Core Logic
|
nVIDIA nForce Professional 3600 MCP
|
|
Form Factor
|
12.0" * 10.5"
|
|
Chassis Support
|
N/A
|
|
ASUS Features
|
Smart Fan: Smart Fan II
Rack Ready (Rack and Pedestal dual use):
ASWM2.0:
|
|
Memory
|
Total Slots: 8
Capacity: Maximum up to 32GB
Memory Type: Dual Channel ECC Reg. DDR2 533/ 667
Memory Size: 512 MB, 1 GB, 2GB
|
|
Expansion Slots
|
Total Slots: 4 (base on SSI)
Slot 1: 1 * 32bit / 33MHz PCI
Slot 2: 1 * PCI-E x 16 (x8 link)
Slot 3: 1 * PCI-E x 1
Slot 4: 1 * PCI-E x 16
|
|
Storage
|
IDE Controller:
IDE: Dual Channels Bus Master IDE support UltraATA 100 / 133
SATA Controller:
MCP55 Pro:
6 SATAI/II ports, RAID 0, 1, 0+1, 5, JBOD
Sil3132:
2 SATAI /II ports, RAID 0, 1
|
|
Networking
|
LAN: 2 x Broadcom BCM5754 PCI-E Gb LAN
|
|
Graphic
|
N/A
|
|
Onboard I/O Connectors
|
Floppy Connector: 1
PSU Connector: SSI 24-pin + SSI 8-pin
USB Connectors: 3
Fan Header: 6 * Fan
SMBus: 1 * SMbus
Front LAN LED: 2
Game Port: 1
|
|
Rear I/O Connectors
|
External Serial Port: 1
External USB Port: 4
IEEE1394: 1 * IEEE1394 (optional)
Mic/Line-in/Line-out: 1
RJ-45: 2
PS/2 KB/Mouse: 1
S/P DIF Out:
1 * Optical SPDIF output
1 * Coaxial SPDIF output
|
|
Management Solution
|
Software: ASWM2.0
|
|
Monitoring
|
CPU Temperature: V
FAN RPM: V
|
|
Safety
|
N/A
|
|
EMI
|
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
|
|
Anti-virus Software
|
N/A
|
|
OS Support
|
N/A
|
|
Environment
|
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
|
|
Optional Parts
|
N/A
|
|
Product SKUs
|
N/A
|
|
|
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
|
