All stock codes associated to this product
KFN32-D-SLI-SAS, KFN32DSLISAS
| Dual GPUs Performance brought by nVidia SLI Technology |
Immediate CPU Performance Scale Up
Support Dual AMD Socket F processors, with Dual-core ready and 64bit operating system. 2 CPU Sockets provide almost 4 CPU performance!
High performance with ECC memory protection
Support up to 8 DIMM, 32GB DDRII 533/ 667 ECC Registered memory space. DDRII 533/ 667 provides better performance over last generation Opteron DDR 400 platform
Highly memeory capacity to meet your critical computing environment needs
Support SLI technology
nVIDIA SLI technology revolutionizes graphic performance by combining multiple PCI Express GPUs in a single and scalable system!
Dual GPUs provide increased, supercharged 3D graphics and performance
Ultimate in expansibility and upgrade
2 * PCI-E x16 slots, 2 * 32bit/ 33MHz PCI slots, 2 * 133GHz PCI-X slots, and 1 * PCI-E x8 slots to support wide range of server add-on cards and suit for professional workstation
Complete RAID solution for data protection
Build-in nVIDIA MCP55 Pro provides 6 SATA ports supporting RAID 0, 1, 10, 5, and JBOD
On board LSI 1068 SAS controller provides 2 SAS ports, and ZCR supports RAID 0, 1, 10, 5
Superb network performance with server connectivity
Dual PCI-E Gb LAN feature moves network data more efficiently
Teaming and fail over function provide more flexible and reliable server connectivity
ASWM provides complete management solution
Optional ASMB3 support i-KVM, Remote ODD which make your system easy to maintain

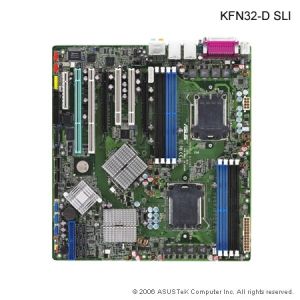

KFN32-D SLI Specifications
|
Processor
|
2 * AMD Opteron 2000 Series processors
|
|
Chipset
|
nVIDIA MCP55
nVIDIA IO55
Intel 6702PXH 64-bit PCI Hub
|
|
Memory
|
Dual Channel ECC Reg. DDR2 533/ 667 DIMM, maximum up to 32GB / 8 slots
|
|
Expansion
|
1 * PCI-E x16
1 * PCI 32bit/33 MHz
1 * PCI 32bit/33 MHz
1 * PCI-E x16
1 * 133GHz PCI-X
1 * 133GHz PCI-X (support ZCR)
1 * PCI-E x8
|
|
LAN Chip
|
2 * Broadcom BCM5754 PCI-E Gb LAN
|
|
Form Factor
|
12" x 13"
|
