| PRINTER TYPE |
| PRODUCT NAME |

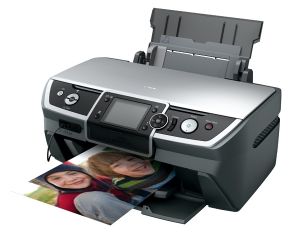

Stylus Photo R390 |
| PRODUCT CODE |
C11C658041 |
| PRINTING METHOD |
On-demand Inkjet (piezoelectric) |
| NOZZLE CONFIGURATION |
90 nozzles (Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta) |
| PRINT DIRECTION |
Bi-Directional with logic seeking |
| LCD VIEWER |
3.5" high-definition colour LCD |
| PRINT SPEED |
| BLACK TEXT (MEMO) A4 |
Approx. 30 PPM (Economy) *1 |
| COLOUR TEXT (MEMO) A4 |
Approx. 30 PPM (Economy) *2 |
| Photo 4" x 6" |
13 sec (Draft)# |
Print Speed Data Printout Patterns The thumbnail images below show the printout patterns used to determine print speed specifications.
 |
"Second" rating refers to the time taken to print one page. "ppm" rating refers to the number of pages printed in one minute. The computer environment we test under is as follows: CPU: 1GHZ Pentium III; RAM: 128MB; OS: Windows ME; Interface/Connectivity: USB
# When printed on Epson Premium Glossy Photo Paper |
| RESOLUTION |
| |
5760 Optimised dpi using Resolution Performance Management (RPM) Technology and Variable-Sized Droplet Technology |
| PAPER HANDLING |
| PAPER FEED METHOD |
Friction feed with Paper Feeder |
| PAPER SIZES |
A4, A5, B5, 4" x 6", 5" x 7", 16:9 wide, Envelopes (No. 10, DL, C6,
123 x 220mm, Letter, Legal) |
| * True BorderFree printing is available on the following media sizes: A4, 100 x 150mm, 4" x 6" & 5" x 7". Media types recommended: Photo Paper, Premium Glossy Photo Paper, Matte Paper Heavyweight. |
| INTERFACES |
| |
USB 2.0 PictBridge |
| SUPPORTED MEMORY CARDS |
| |
CompactFlash, Memory Stick, Memory Stick PRO, Memory Stick Duo*, MagicGate Memory Stick, MagicGate Memory Stick Duo*, Microdrive, SD (Secure Digital) Card, MultiMediaCard, miniSD Card*, xD-Picture Card |
| * Adapter required |
| OPERATING SYSTEMS |
| PRINTER DRIVERS |
Mac OS 10.2.4 or later
Microsoft Windows 98 / 2000 / Me / XP / XP 64-bit |
| PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY) |
| Drivers for supported operating systems |
| On-line User Guide |
| Epson Creativity Suite |
| Epson Print CD |
| Epson Easy Photo Print |
| Epson Web-to-Page |
| Epson Attach To Email |
| COLOUR MATCHING |
| Epson Colour Management System included in Windows and Mac drivers: |
| |
Windows ICM (Windows 95/98/Me/2000/XP)
Apple ColorSync 2.0 compatible
Epson provided ICC Profiles
SRGB (Windows 98/Me/2000/XP) |
| WARRANTY |
| |
12 months return to base |
Standard |
| |
Optional Additional 2 Year Warranty |
3YWR390 |
| |
Epson Warranty |
| ENVIRONMENTAL CONDITIONS (OPERATING) |
| TEMPERATURE |
10 ~ 35 C |
| HUMIDITY |
20 ~ 80% RH |
| ELECTRICAL SPECIFICATIONS |
| RATED VOLTAGE |
AC 220 ~ 240V |
| RATED FREQUENCY |
50 ~ 60 Hz |
| POWER CONSUMPTION |
17W (ISO10561 Letter Pattern) |
| DIMENSIONS |
| |
Printing 453 (W) x 538 (D) x 285 (H) mm |
| WEIGHT |
| |
6.9kg |
| INK CARTRIDGES |
BLACK INK
Black (T0821)
|
COLOUR INK
Cyan (T0822), Magenta (T0823), Yellow (T0824), Light Cyan (T0825), Light Magenta (T0826)
|
