ASUS GigaX 1024i - 24-port 10/100 Smart Layer 2 Ethernet Switch, 1U, Back RS232

No Longer Available

Part Number:

68372

(?) Brand:

ASUS Web Site

Manuf No:

GX1024I

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

GX1024I

ASUS GigaX 1024i - 24-port 10/100 Smart Layer 2 Ethernet Switch, 1U, Back RS232

Special Advantages

Port based VLANs

Recognize Cos and Qos priority queues

Asus switches discovery

Topology map

Port status monitoring

Graphic statistic charts show traffic comparison or history and monitor ports

Link aggregation up to 7 Trunk groups

Non-blocking Wire-speed Architecture

Ensures the maximum performance for every port on your ASUS switch, thus maximizing Network performance and productivity

Extra secure posts on mounting brackets

Extra posts on our mounting brackets provide extra support for Switch mounting

Fan-less Design

Protect the peace and quiet of your working environment with our fan-less design switches

Auto negotiation and auto MDI/MDIX

Automatically detects and adjusts for speed and duplex state Auto MDI/MDIX allows you to use either straight-thru or crossover cables whether you are connecting to PCs or uplinking to another switch

Easy to Read Diagnostic LEDs

Easily obtain connection link status, speed information on the Informative LEDs of the switches

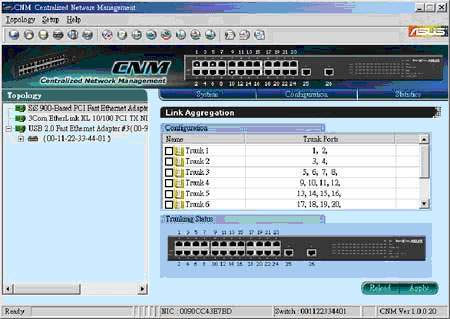

CNM management software
Provides advanced management capabilities
Easily configure advanced management features as: Port speed and duplex; VLANs; Link Aggregation; CoS and QoS Prioritization; Broadcast and Multicast filtering; Bandwidth Control; View history

Specification

Port Attributes	24 RJ-45 10/100Mbps ports Auto MDI/MDIX Auto-negotiation: Speed, duplex mode, flow control
Physical Specification	Dimension: 4.4 cm (H) x 44.4 cm (W) x 20 cm (D) Weight: 2.2Kg
Standard Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE802.1p CoS
Management	Asus Centralized Network Management Asus switches discovery Topology map Port status monitoring Graphic statistic charts show traffic comparison or history and monitor ports. Link aggregation up to 7 Trunk groups Setup of up to 32 port based VLANs Port configurations Broadcast storming control CoS: recognizes 802.1p tagged values. QoS: 2 transmit queues per port. Port management and diagnosis Bandwidth control on Tx/Rx from 128Kbps to 8Mbps
Performance	Store-and-forward. Up to 8000 MAC addresses with automatic addresses learning and aging. Full wire-speed switching Switch Fabric Capability: 4.8 Gbps Packet Forwarding Rate: 3.6 Mpps
LEDs	System: Power Port: Status, Speed, Duplex /Collision
Power Requirement	Power supply: Internal Universal AC, 90~240VAC, 50/60HZ Power consumption: 12W Maximum
Environmental Specification	Operating Temperature 0 to 40 C Non-operating Temperature -25 to 70 C Humidity 5% to 95% (Non-condensing) Vibration IEC 68-2-36 Shock IEC 68-2-29 Drop IEC 68-2-32
Safety	UL1950 TUV
EMC	FCC Part 15 Class A CE Mark CCC GOST
Package Contents	GigaX1024i Switch Power Cable Quick Installation Guide Mounting Kit (2 Brackets and 6 Screws)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
