Motherboards -> Intel Socket 775 -> ASUS

ASUS P5N-E SLI Motherboard
LGA775, nForce 650i SLI, 4x DDR2-800, 2x PCI-Ex16, 5x SATA-II, eSATA, RAID, GigLAN, 6Chl, Firewire, ATX
Cart
Quantity:
Add ASUS P5N-E SLI Motherboard
LGA775, nForce 650i SLI, 4x DDR2-800, 2x PCI-Ex16, 5x SATA-II, eSATA, RAID, GigLAN, 6Chl, Firewire, ATX to your wishlist
Click here to write a review on ASUS P5N-E SLI Motherboard
LGA775, nForce 650i SLI, 4x DDR2-800, 2x PCI-Ex16, 5x SATA-II, eSATA, RAID, GigLAN, 6Chl, Firewire, ATX

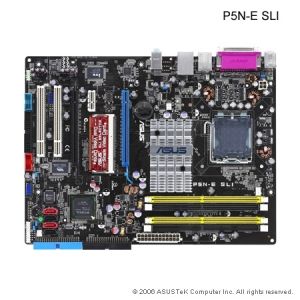

Large image is available
Product May Vary From Image

Our Price:
$158.95
RRP:$169.00
You Save:$10.05

Techbuy Part No:68705
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:P5N-E-SLI
 P5NESLI
Shipping Weight:2 KG How Much?
Date Added:3/1/2007
Rating: Not Rated
Currency:AUD Convert

Product Description
For recommended Corsair memory for this motherboard, click here: Recommended Memory

Asus P5N-E SLI - LGA775, nForce 650i SLI, 1066MHz FSB, 4x DDR2-800, GbE, 1394a, 2x PCI-Ex16, ATX

The Best Cost Performance Ratio of Dual VGA Motherboard

-Intel Quad-Core
-Dual-channel DDR2 800/667/533
-Great performance and overclocking
-ASUS O.C. Profile
-ASUS Fanless Design
-2 IEEE 1394a connector onboard (1 in back + 1 on board)
-5 x SATA 3.0 Gb/s (including 1 x SATA On-the-Go)
-ASUS Q-Connector

The Best Cost Performance Ratio of Dual VGA Motherboard

LGA775 Intel Quad-core Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world.
This motherboard supports the latest Intel Quad-core processors in LGA775 package.
It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB.
Intel Quad-core is one of the most powerful CPU in the world.

NVIDIA SLI Technology
NVIDIA SLI (Scalable Link Interface) takes advantage of the increased bandwidth of the PCI Express bus architecture and features intelligent hardware and software that allows two GPUs to efficiently work together to deliver earth-shattering, scalable performance. For some applications nearly 2X performance! (From www.NVIDIA.com)
NVIDIA nForce 650i SLI
The NVIDIA nForce 650i SLI chipset supports the NVIDIA Scalable Link Interface (SLI) technology that allows two graphics processing units (GPUs) in a single system. It is a highly integrated, high-performance, cost-effective processor.

Dual-Channel DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications.
Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing.
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.

SATA on the Go
The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.

Q-Connector
* Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

Fanless Design
Provide a cool environment without all the baggage Cooling fans, though a popular thermal solution, also come with noise and malfunction likelyhood. ASUS Motherboard's fansless concept is specifically created to provide a cool environment without all the baggage. ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, VGA, Northbridge and Southbridge. The heat sinks and strategic board layout were tailor made to dissipate heat in the most efficient manner.
ASUS O.C. Profile
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings
ASUS AI NET2
ASUS AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy.

CrashFree BIOS 2
* Simple BIOS auto-recovery process
The CrashFree BIOS 2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.

EZ Flash 2
* Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
C.P.R. (CPU Parameter Recall)
* Protect your BIOS data when overclocking.
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

GreenASUS
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.




Specification
CPU
LGA775 Socket Intel Quad-Core/CoreTM Extreme/Pentium D /Pentium 4/Celeron CPU processors
Compatible with Intel 06/05A/05B processors
Intel EIST/EM64T/Hyper-Threading Technology/C1E/ TM1/TM2
Chipset
North Bridge : NVIDIA nForce 650i SLITM (C55)
South Bridge : NVIDIA nForce 430i (MCP51)
Front Side Bus
1333**/1066/800/533MHz (** available when CPU is supporting 1333MHz FSB)
Memory
Dual channel memory architecture
4 x 240-pin DIMM sockets support up to 8GB DDR2 800/667/533 / non-ECC/ Unbuffered memory
Expansion Slots
"2 x PCI Express x16
- Single VGA mode: x16 (Default)
- SLI mode: x8, x8"
1 x PCI Express x1
2 x PCI (PCI 2.2)
Storage
2 x Ultra DMA 133/100/66/33
4 x Serial ATA 3.0 Gb/s
- support RAID0, 1, 0+1, 5 and JBOD
1 x External Serial ATA 3.0 Gb/s
LAN
Gigabit LAN featuring AI Net2
NVIDIA nForce 430i built-in Gigabit MAC with external Marvell 88E1116 PHY
Audio
Realtek ALC883 6-channel CODEC
Audio Sensing and Enumeration Technology
Multi-Streaming
1 X Coaxial S/PDIF out ports on back I/O
IEEE 1394
Supports 2 IEEE 1394a connector onboard (1 in back + 1 on board)
USB
Supports up 8 USB2.0 ports
Overclocking Features
- AI Overclocking (intelligent CPU frequency tuner)
- ASUS CPU Lock Free
- Precision Tweaker:
- vCore: Adjustable CPU voltage at 6.25mv increment
max. 1.6V
- vChip: 4-step Chip voltage control
adjust Chip voltage max. 0.55V
- vDIMM: 8-step DRAM voltage control
adjust DRAM voltage max. 0.6V
- SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 412.5MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 131MHz at 1MHz increment
- CPU Multiplier
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Q-Connector
ASUS O.C. Profile
ASUS Fanless Design
ASUS PC Probe2
ASUS Q-Fan2
ASUS MyLogo2
ASUS Update
BIOS
4 Mb Flash ROM, AWARD BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
ASUS EZ Flash 2,ASUS CrashFree BIOS 2
Manageability
WfM 2.0, DMI 2.0 , WOR by Ring ,
WOL/WOR by PME, WO USB/KB/MS, PXE, RPL & AI Net2
Internal I/O Connectors
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Chassis Intrusion
1 x CPU + 2 Chassis FAN connectors
1 x Floppy disk drive connector
1 x CD audio in connector
1 x 1394a connector
2 x USB connector supports additional 4 USB ports
1 x Front panel connector (AAFP)
System panel connector
1 x COM Port connector
1 x S/PDIF out connector
Back Panel I/O Ports
1 x Parallel port
1 x 1394a connector
1 x S/PDIF Out port (Coaxial)
1 x PS/2 Keyboard port (purple)
1 x PS/2 Mouse port (green)
1 x LAN(RJ-45) port
4 x USB 2.0/1.1 port
1 x External SATA
6-Channel Audio I/O port
Accessories
SLI connector
SATA cables
UltraDMA 133/100/66 cable
IDE cable
FDD cable
I/O shield
2-port USB 2.0 module
2 in 1 ASUS Q-Connector kit
User's manual
Support CD
Drivers
ASUS Update
Anti-virus software (OEM version)
ASUS PC Probe II
NVIDIA RIS (Remote Installation Service) application
Form Factor
ATX Form Factor, 12x 9(30.5cm x 22.9cm)


Product Warranty


1 Year Return to Base
