, PIN330E
Ultra-portable digital and analogue TV

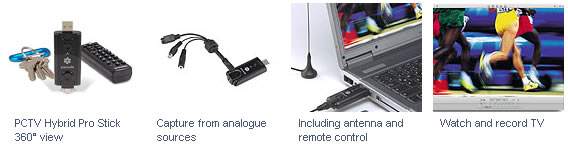

Pinnacle PCTV Hybrid Pro Stick is an ultra-compact USB 2.0 Tuner for digital terrestrial and analogue TV that comes with a mini remote control and rod antenna. Thanks to the included Pinnacle MediaCenter software, PCTV Hybrid Pro Stick turns your laptop into a portable remotecontrolled multimedia jukebox with PVR.
New: Analogue A/V inputs allow capturing from camcorders, VCRs etc.
- Portable USB 2.0 device with mini remote control and rod antenna included
- Watch and TimeShift digital terrestrial and analogue TV (cable or antenna)
- Direct-to-DVD or hard drive recording
- Teletext and Electronic Programme Guide (EPG)
- AutoPowerOFF after finished recordings
- Remote control access to all your media files
- Digital* and Internet** radio
- Record video files compatible with Sony PSP or Apple iPod
- Record directly in DivX format
- NEW: Capture video footage via the analogue A/V inputs
- Trim your videos and create DVDs with Pinnacle Studio QuickStart
* DVB-T radio not available in all regions
** Internet connection required
Technical Specifications
Hardware
- Analog/DVB-T tuner
- Frequency range 45.75.. 863.25 MHz (VHF and UHF)
- Analogue TV standards: PAL, SECAM
- DVB-T COFDM Demodulator
Supported modulations 16, 64 QAM, QPSK
Bandwidths 6, 7, 8 MHz
- Inputs
Antenna: IEC connector
S-Video (via included adaptor
Composite video (via included adaptor)
Stereo audio 3.5mm (via included adaptor)
- USB bus powered (no power supply required)
- Enclosure dimensions: 82(L) x 31(W) x 15(H)mm
Approvals
- CE
- USB 2.0 Hi-Speed
- Designed for Windows XP (WHQL)
TV Recording Formats
- MPEG-2 in native DVB quality or (re-)compressed to quality levels DVD or DVD long
- MPEG-1 (VCD)
- DivX (HomeTheater/Portable/Handheld Profile)
- MPEG-4 (compatible with portable media players)
Minimum System Requirements
- Windows XP (Home, Professional, or Media Center Edition 2005) with latest Service Pack
- Intel Pentium 4 2 GHz or equivalent AMD Athlon XP
- 256 MB RAM (512 MB recommended)
- UDMA/IDE hard disk with min. 5 GB free capacity (20GB free capacity recommended)
- Graphics controller with support for DirectX 8 or 9
- Sound controller with support for DirectX 9
- USB 2.0 slot
- CD-ROM drive (DVD recorder recommended)
Important notes on DVB-T reception:
DVB-T reception depends on location and might be impaired by thick or steel-enforced walls, and high neighbouring buildings. In such environments, an outdoor/roof-top DVB-T antenna is required. Mobile reception of DVB-T, e.g. in a car or train, is generally not possible.
Package Contents
- USB 2.0 TV tuner
- Mini rod antenna
- Audi/Video capture break-out cable
- Remote control incl. batteries
- CD-ROM with Pinnacle MediaCenter software, drivers and documentation
- Printed quick start guide
