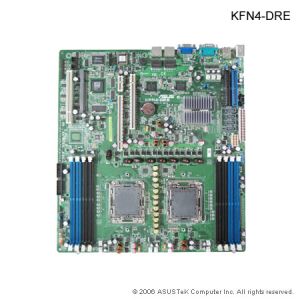

ASUS KFN4-DRE - 2x Socket F, nForce Pro 2200, HT2000, 8x DDR2-667, VGA, PCI-Ex16, HTX, RAID, 2x GbE, EATX

Most Valuable Dual Opteron HPC Server Ready

This serverboard is based on AMD's latest socket F platform, with 2 next-generation AMD OpteronTM processors (socket 1207) and nVIDIA nForece 2200 Pro chipset support ready, which can provide immediate performance upgrade. The 8 DIMM slots support dual channel ECC Reg. DDR2 667 up to 32GB for mission critical application, and DDR2 667 provides better performance over last generation Opteron DDR400 platform.

Practical Expansion for Versatile Use
There are 4 expansion slots in KFN4-DRE, including: one PCI-E x 16 which has more head room to scale up the I/O performance; one HTX slot which support an add-on card interface that connects to other nodes in the cluster via a direct link to CPU, one 32bit/33MHz PCI and one SODIMM socket for optional ASUS ASMB3 management card for remote offline serviceability functions, users therefore have flexibility to choose on their own demands.

Optimized Placement for 1U Rack Applications
CPU is right in the center of serverboard for system fans to blow directly;
Streamline DIMM slots enables smoother air flow inside chassis;
PSU & IDE connector are located by the border to avoid unnecessary air block caused by cables

Dual Server-class PCI-E Gb LAN
Dual server class PCI-Express Gb LAN is the most available and professional network connection solution now, and the "teaming" and "failover" functions further aggregate higher bandwidth and reliable network.
