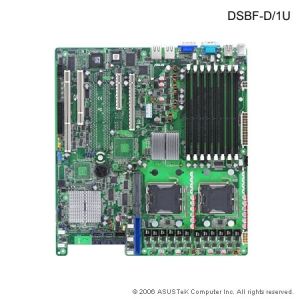

ASUS DSBF-D/1U - 2x LGA771, Intel 5000P, 1333MHz FSB, 8x DDR2-667, VGA, PCI-Ex16, RAID, 2x GbE, SSI EEB


Large image is available

Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:69062
Usually Ships: No Longer Available Details
Brand:ASUS Web Site
Manuf No:DSBF-D/1U/2GBL
 DSBFD/1U/2GBL
Shipping Weight:3 KG How Much?
Date Added:18/1/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

Latest Dual-Core / Quad-Core Serverboard with Great
  Expandability

Asus serverboard DSBF-D/1U supports Dual-Core / Quad-Core Intel Xeon processors 5000/5100/5300 Sequence and Intel 5000P chipset to improve performance and reliability. It's ready for the broadest range of 64-bit applications and with Intel VT and Intel I/OAT technology to focus on high-end server market. With 8 FBD DIMM slots, DSBF-D/1U can support 4-channel FBDIMM DDR2 533/667 up to 32GB to significantly improve the serverboard's computing capability.

DSBF-D/1U has a full range of expansion choices: it supports next-generation PCI Express x8 slot (x8 link) and PCI Express x16 (x8 link) slot; it protects users' investment with one PCI-X 133MHz slot and one PCI 32/33MHz slot as flexible options for server utilization.

The serverboard supports mainstream or next-generation storage, including IDE, and SATAII. It has integrated 6 SATAII 300MB/s ports which has built-in RAID functions for better and cost-effective data protection. It covers from embedded SATA RAID 0, 1, 10 with most Linux drivers support for value level market. It really benefits user with the best upgrade capability and data protection.

DSBF-D/1U Specifications

Processor

Dual-Core / Quad-Core Intel Xeon Processor 5000/5100/5300 Sequence

Chipset

Intel 5000P Chipset
Intel 6321ESB I/O Controller Hub

Memory

Four Channel DDR2 533/667 Fully-Buffered DIMM, maximum up to 32GB

Expansion

1 * PCI-X 133 MHz
1 * PCI 32bit/33 MHz
1 * PCI-E x 8 (x 8 link)
1 * PCI-E x16 (x 8 link)
1 * SODIMM socket for ASMB3-SOL

LAN Chip

Intel 82563EB Network Connection (Dual Port)

Board Size

SSI EEB 3.61, 12" x 13"





Specification
Processor / System Bus
2 * Socket LGA771
Dual-Core / Quad-CoreIntel Xeon Processor 5000/5100/5300 Sequence
FSB 667/1066/1333MHz EM64T 2x2M or 4M L2 cache
Core Logic
Intel 5000P Chipset
Intel 6321ESB I/O Controller Hub
Form Factor
SSI EEB 3.61, 12" x 13"
Chassis Support
N/A
ASUS Features

Smart Fan: Smart Fan II
Rack Optimized (Dedicated for Rack):
ASWM2.0:

Memory
Total Slots: 8
Capacity: Maximum up to 32GB
Memory Type: Four Channel DDR2 533/667 Fully-Buffered DIMM
Memory Size: 512 MB, 1 GB, 2GB, 4GB
Expansion Slots
Total Slots: 5
Slot 1: 1 * PCI-X 133 MHz
Slot 2: 1 * PCI 32bit/33 MHz
Slot 5: 1 * PCI-E x 8 (x 8 link)
Slot 6: 1 * PCI-E x16 (x 8 link)
Additional Slot 1: 1 * SODIMM socket for ASMB3-SOL
Storage
IDE Controller
Intel 6321 ICH:
1 * Single Channel Bus Master IDE support UltraATA 33 / 66 / 100

SATA Controller
Intel 6321 ICH:
6 SATA2 300MB/s ports
Intel Matrix Storage(Windows) support RAID 0, 1, 0+1, RAID 5 (S/W)
Networking
LAN: Intel 82563EB Network Connection (Dual Port)
Graphic
VGA: ATI ES1000 PCI Display Controller/ 32MB
Onboard I/O Connectors
Floppy Connector: 1
PSU Connector: 24-pin ATX power connector + 8-pin ATX 12V power connector + 4-pin ATX 12V power connector
Management Connector: SODIMM socket forASMB3-SOL
USB Connectors: 1 (support 2 USB ports)
Fan Header: 9 * 4pin
SMBus: 2
Chassis Intruder: 1
Front LAN LED: 2
Serial Port Header: 1
Rear I/O Connectors
External Serial Port: 1
External USB Port: 2
VGA Port: 1
RJ-45: 2
PS/2 KB/Mouse: 1
Management Solution
Software: ASWM2.0
Out of Band Remote Management: Optional (ASMB3-SOL)
Monitoring
CPU Temperature
FAN RPM
Safety
N/A
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Anti-virus Software
N/A
OS Support
N/A
Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
Optional Parts
N/A
Product SKUs
N/A


Product Warranty


3-year RTB
