HOME / Back -> Power Protection/UPS -> Stand Alone -> APC

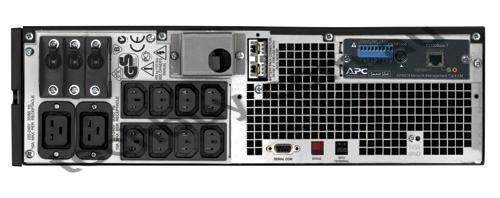

APC Smart-UPS RT - 6000VA, 3U Rackmountable/Tower, 4200W

IMG 1 of 1
No Longer Available
Part Number:
69188
(?) Brand:
APC Web Site
Manuf No:
SURT6000XLI
Shipping Weight:
66 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/1/2007
Details Files Finance Images & Video
All stock codes associated to this product
SURT6000XLI, UPAPCSURT6000XL, 731304240174

Output

Output Power Capacity
4200Watts /6000 VA
Max Configurable Power
4200Watts /6000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
92.00%
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor
3 : 1
Waveform Type
Sine wave
Output Connections
(8) IEC 320 C13
(2) IEC 320 C19
(6) IEC Jumpers

Input

Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Hard Wire 3-wire
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280V
Other Input Voltages
220,240

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.50hour(s)
Replacement battery cartridge
RBC44
RBC Quantity
1
Typical Backup Time
at Half Load
15.8minutes (2100 Watts)
Typical Backup Time
at Full Load
5.3minutes (4200 Watts)
Runtime Chart
Smart-UPS RT
Extended Run Options
APC Smart-UPS RT 6000VA 230V

Communications & Management

Interface Port(s)
DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot
Pre-Installed SmartSlot Cards
AP9619
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
480Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
432.00mm
Maximum Width
130.00mm
Maximum depth
660.00mm
Rack Height
3U
Net Weight
54.55KG
Shipping Weight
63.64KG
Shipping Height
347.00mm
Shipping Width
603.00mm
Shipping Depth
980.00mm
Color
Black
Units per Pallet
6.00

Environmental

Operating Environment
0 - 40C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
55dBA
Online Thermal Dissipation
1040.00BTU/hr

Conformance

Regulatory Approvals
C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,VDE
Standard Warranty
2 years repair or replace,optional on-site warranties available,optional extended warranties available
*With Tax/VAT
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (APC) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
