Enrich Vista Enjoyment with Exclusive Technologies |

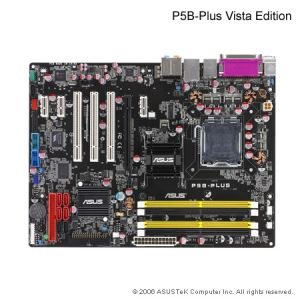

The P5B-Plus Vista Edition motherboard implements these unique ASUS featuresAI Remote, AP Trigger, ASAP, and TPM Supportto provide you the best working environment with the latest Microsoft Vista OS. Aside from these features, the motherboard also gives you the ASUS AI Lifestyle features Quiet Thermal Solutions, Crystal Sound, and EZ DIY optimizing your system's performance and minimizing noise.
|
 AI Lifestylestyle Series
AI Lifestylestyle Series motherboards bring lifestyle and personal computing together. They provide you better system performance to enjoy graphic-intensive games and applications. The cutting-edge audio feature dramatically enhances the quality of voice signal. Thoughtful design allows you to set up your system easily. To create a peaceful environment, several new and improved innovations are included to reduce noise and temperature. Don't change your way of life for a computer. Instead let the ASUS Lifestyle Series improve the quality of your life.
|
| CPU, Chipset and Graphics features |
 LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package.
It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB.
Intel Quad-core is one of the most powerful CPU in the world.
 LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. With new Intel Core microarchitecture technology and 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
|
Intel P965 Chipset
 The Intel P965 Express Chipset is the latest chipset designed to support maximum 8GB dual-channel DDR2 800/667/533 architecture, 1066/800 FSB (front-side-bus), PCI Express x16 graphics and multi-core CPU. It especially includes Intel Fast Memory Access Technology that significantly optimizes the use of available memory bandwidth and reduces the latency of the memory accesses.
|
Dual-Channel DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications.
|
| ASUS AI Lifestyle Vista Edition Features |
AI Remote
 Enjoy the fun and convenience of remote control for your PC!
The ASUS AI Remote gives you unprecedented control from the comfort of your couch. With just the touch of a button, you can quickly do your usual computer activities such as turn ON/OFF your PC; launch your favorite applications by enabling AP Trigger function; or control AI Gear and AI Nap. The AI Remote also gives you the comfort of a traditional remote on media player. Have an ASUS AI Remote in your hand and do more with your PC from a distance!needs.
|
 AP Trigger
Quickly power on PC and get to the favorite applications at one touch!
The ASUS AP Trigger allows you to quickly boot or resume directly into media or into your favorite applications. With just the touch of a button on the AI Remote controller, you can quickly turn on your PC and launch predefined applications simultaneously!
|
 ASAP(ASUS Accelerated Propeller)
Support Windows Vista ReadyBoost technology for greater productivity!
ASAP gets you to your destination ASAP. ASAP supports the Windows ReadyBoost technology which improves system performance under Windows Vista. Enjoy greater efficiency and get more productivity out of your system - ASAP.
|
 TPM SUPPORT
Provide secure and protected working environment!
This motherboard supports the Trusted Platform Module (TPM), which provides you with enhanced data protection, security via high-level encryption / decryption, and ensures platform integrity. The TPM meets the Windows Vista BitLocker Drive Encryption hardware requirement for a more secure working environment.
Notice: The TPM module is purchased separately!
|
| ASUS Quiet Thermal Solution |
 AI Gear
Optimize performance and quietness as you wish!
To balance both system performance and quietness, AI Gear allows users to choose from profiles to adjust CPU frequency and vCore voltage, minimizing system noise and power consumption. Users can real-time change the mode under operating system to suit their needs.
|
 AI Nap
Minimize noise and power consumption when temporarily away
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while you're sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
|
 Q-Fan 2
Adjusts both CPU fan and chassis fan speeds according to system loading
ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.
|
  Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
|
 O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
|
 CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
 EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
AI NOS
Boost performance when you need it the most!
Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS reacts much faster to satisfy your unending need for speeds .
|
Precision Tweaker
Achieve system maximum performance!
It offers ways to raise system performance inch-by-inch and step-by-step to achieve maximum performance! This is about getting the most out of your machine and taking pride in your customized computer.
vDIMM - Take control of how much power is going into the memory modules. P5B gives you 2-step voltage control to the DIMM.
vCore - Find out "exactly" how much power your CPU needs. Fine-tune it with 0.00625 volts at a time!
SFS (Stepless Frequency Selection) allows
- FSB tuning from 100MHz up to 400MHz at 1MHz increment
- Memory tuning from 533MHz up to 1066MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
|
C.P.R. (CPU Parameter Recall)
Protect your BIOS data when overclocking.
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
|
| ASUS Crystal Sound |
 Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
|
| Other Innovative Features |
|
MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
|
|
|
SATA on the Go
The P5B supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
|
Dual RAID
The Intel P965 chipsets incorporate six Serial ATA connectors with high performance RAID functions in RAID 0, 1, 5 and 10. The JMicron controller provides another two Serial ATA connectors for RAID 0, 1, and JBOD functions. This motherboard is the ideal solution to enhance hard disk performance and data back up protection without the cost of add-on cards.
|
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
|
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
|
|
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
Uses 100% All High-quality Conductive Polymer Capacitors!
P5B-Plus uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
|
|
 GreenASUS
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
|
